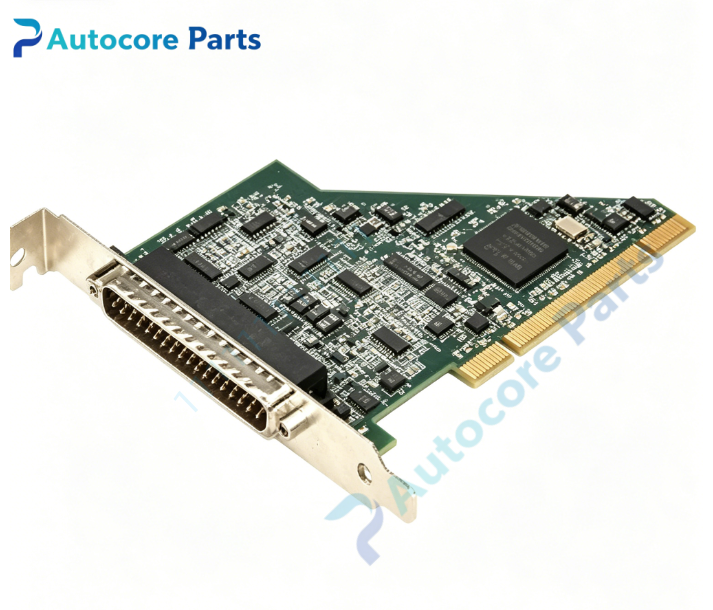

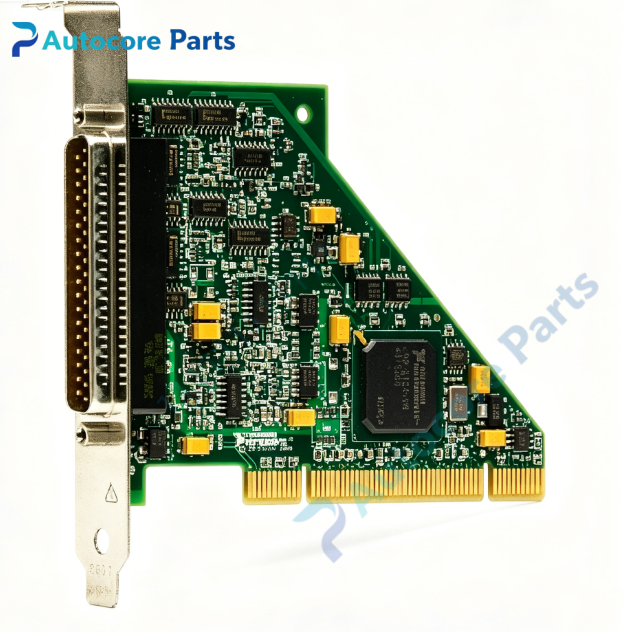

NI PCI-6010 PCI Bus Multifunction DAQ Data Acquisition Board

Technical Specifications

Model:PCI-6010

Brand:NI

Part No:779348-01

Product type:PCI Bus Multifunction DAQ(Data Acquisition) Board

ADC:16-bit resolution

Analog Input:16 single-ended /8 differential channels

Max sampling rate:200kS/s

Analog Output:2 channels

Digital I/O:6 digital input,4 digital output

Counter/Timer:2 counters

Connector:37-pin D-SUB

Function:voltage measurement,signal output,PFI timing,static digital read/write,bus powered

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.21kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-6010 belongs to NI multifunction DAQ platform.It works with standard PCI industrial PC,supported by NI-DAQmx driver and LabVIEW,widely used for laboratory automation,research,product verification and manufacturing test measurement.It is spare part for legacy test equipment overhaul.

Function

PCI-6010 is low-cost multi-function PCI DAQ board.It integrates analog input,analog output,digital I/O and counter functions.16-bit high resolution collects analog voltage signals,2 AO channels generate analog control signals.PFI lines support timing and triggering,suited for general industrial and laboratory data acquisition applications.

Installation

Insert PCI-6010 into computer PCI slot and fasten bracket.Connect signal wiring to 37pin D-SUB terminal block.Install NI-DAQmx driver.Take ESD protection before installation.

Interface

‑37-pin D-SUB multi-function I/O connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-6010 classic NI low-cost multifunction DAQ board.Typical faults:D-SUB connector pin oxidation,ADC reading drift,counter timing error.Inspect analog input and digital channel before replacement.

Diagnostic

Fault phenomenon:abnormal AI reading,no AO output,digital channel failure,counting error.Check sensor wiring,PCI slot contact,NI-DAQmx driver and channel configuration.

Product Brief

PCI-6010 is NI PCI bus multifunction DAQ board with 16-bit,200kS/s sampling rate,16AI,2AO and digital I/O,for general voltage acquisition,automated measurement and legacy test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
