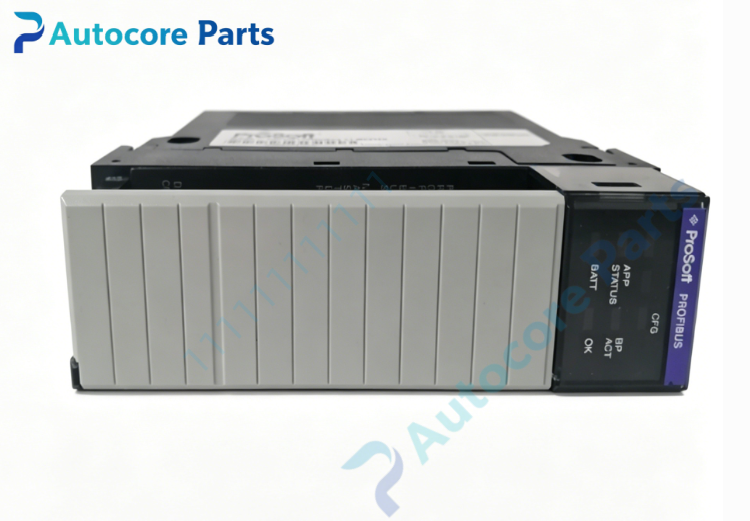

ProSoft ProSoft 5104-DNPS-PDPM Communication Gateway Module

Technical Specifications

Model:5104-DNPS-PDPM

Brand:ProSoft

Product type:Protocol Communication Gateway

Power supply:24VDC

Communication:DeviceNet Slave,PROFIBUS DP Master

Weight:0.32kg

Operating temperature:-40℃ ~ +70℃

Dimension:120mm85mm35mm

Certification:CE,UL

System compatibility

5104-DNPS-PDPM is ProSoft protocol gateway,realizes data conversion between DeviceNet slave devices and PROFIBUS DP master network.Widely used in industrial automation retrofit and spare replacement.

Function

It acts as DeviceNet slave and PROFIBUS DP master simultaneously,transmits digital and analog data bidirectionally between two different industrial bus networks.

Installation

Mount on standard DIN rail,connect 24VDC power,wire DeviceNet and PROFIBUS DP cables,configure network parameters via configuration software,check status LED.

Interface

DeviceNet terminal port,PROFIBUS DP RS485 port,power terminal,run/network status LED indicators.

Feature

DIN rail installation,dual independent bus interface,real-time data exchange,support standard bus protocol,stable operation in industrial harsh environment.

Diagnostic

Check power LED and bus status LED;communication failure:check bus wiring,node address,baud rate and configuration file;data error:verify data mapping table.

Product Brief

5104-DNPS-PDPM is ProSoft industrial protocol gateway,converting DeviceNet slave to PROFIBUS DP master,applied for industrial automation system maintenance and network transformation.
