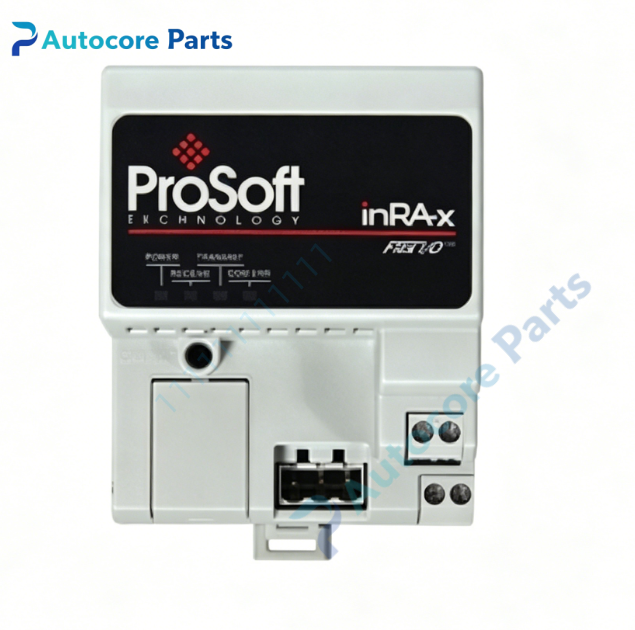

ProSoft 5201-104S-103M IEC 104 Server to IEC 103 Master Gateway

Technical Specifications

Model:5201-104S-103M

Brand:ProSoft

Product type:Protocol Communication Gateway

Power supply:18-32VDC

Communication:IEC 60870-5-104 Server,EI 60870-5-103 Master

Weight:0.34kg

Operating temperature:-40℃ ~ +70℃

Dimension:125mm86mm35mm

Certification:CE,UL

System compatibility

5201-104S-103M is ProLinx series gateway,designed for power substation automation.It realizes data interconnection between IEC104 network and IEC103 serial protection devices,widely used in power system renovation and spare replacement.

Function

It acts as IEC104 server and IEC103 master simultaneously,completes bidirectional real-time data exchange between substation protection equipment and upper monitoring system.

Installation

DIN rail mounting,connect 24VDC power,wire Ethernet and RS485 serial cable,configure database mapping via software,check LED status indicators.

Interface

1Ethernet port,1RS485 serial terminal,power terminal,run and communication status LED indicators.

Feature

DIN rail compact housing,dual independent protocol interface,support power substation standard telecontrol protocol,stable operation in strong interference power environment.

Diagnostic

Check power and network LED;communication failure:check cable,node address,baud rate and configuration file;data anomaly:verify point mapping table.

Product Brief

5201-104S-103M is ProSoft power automation protocol gateway,converts IEC104 server to IEC103 master,used for substation system maintenance and upgrade.
