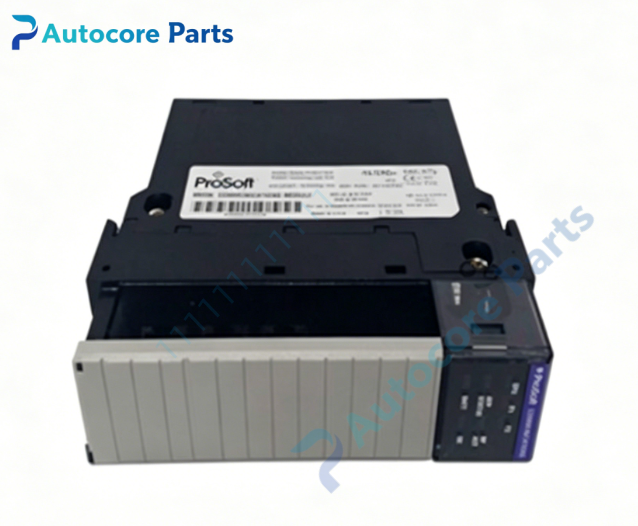

ProSoft 5204-DFNT-PDPMV12 EtherNet/IP to PROFIBUS DPV1 Master Gateway

Technical Specifications

Model:5204-DFNT-PDPMV12

Brand:ProSoft

Product type:Protocol Communication Gateway

Power supply:18-32VDC

Communication:EtherNet/IP Client/Server,PROFIBUS DPV1 Master

Weight:0.45kg

Operating temperature:-40℃ ~ +70℃

Dimension:127mm102mm35mm

Certification:CE,UL

System compatibility

5204-DFNT-PDPMV12 belongs to ProLinx series DIN rail gateway.It connects Rockwell EtherNet/IP control network with PROFIBUS DP slave field devices,suitable for manufacturing,oil & gas and power industry system retrofit and spare replacement.

Function

It acts as EtherNet/IP client/server and PROFIBUS DPV1 master,supports cyclic I/O data exchange and DPV1 acyclic read/write and diagnosis,realizes bidirectional real-time data mapping between EtherNet/IP PLC and PROFIBUS DP slave equipment.

Installation

DIN rail mounting,connect 24VDC power,wire Ethernet and PROFIBUS DP bus,set PROFIBUS node address and data mapping via configuration software,check LED indicators.

Interface

1*10/100Mbps Ethernet RJ45 port,PROFIBUS DP DB9F port,power terminal,run and fault status LED indicators.

Feature

Compact DIN rail housing,support PROFIBUS DPV1 acyclic services,multi-master bus support,rich diagnostic functions,stable operation in harsh industrial cabinet environment.

Diagnostic

Check power,link and fault LED;communication failure:verify network cable,bus terminal resistor,station address and baud rate;data abnormal:check GSD file and I/O mapping configuration.

Product Brief

5204-DFNT-PDPMV12 is ProSoft ProLinx protocol gateway,bridge EtherNet/IP network and PROFIBUS DPV1 slave devices,for industrial automation system maintenance and transformation.
