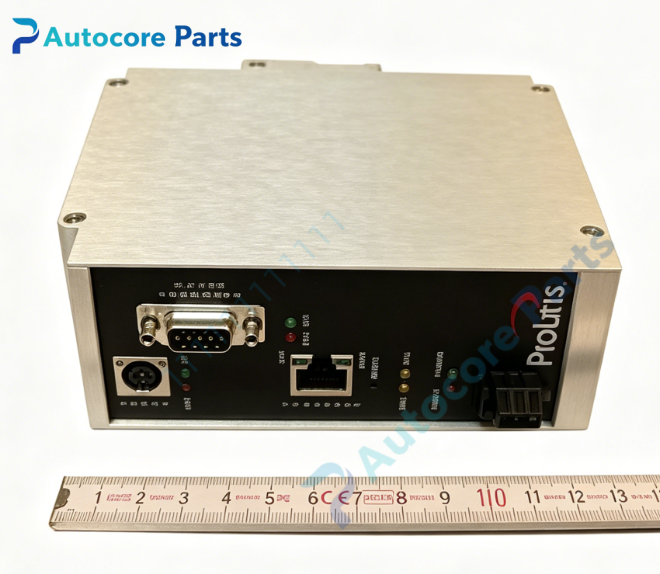

ProSoft 5205-104S-PDPS IEC 104 Server to PROFIBUS DP Slave Gateway

Technical Specifications

Model:5205-104S-PDPS

Brand:ProSoft

Product type:Protocol Communication Gateway

Power supply:18-32VDC

Communication:IEC 60870-5-104 Server,PROFIBUS DP V0 Slave

Weight:0.35kg

Operating temperature:-40℃ ~ +70℃

Dimension:127mm102mm35mm

Certification:CE,UL

System compatibility

5205-104S-PDPS belongs to ProLinx series DIN rail gateway.It connects IEC104 power telecontrol network and PROFIBUS DP master controller,widely used in power substation automation renovation and spare replacement.

Function

It acts as IEC104 server and PROFIBUS DP V0 slave,realizes bidirectional real-time data mapping between IEC104 monitoring system and PROFIBUS DP master equipment,supports cyclic data transmission and event-driven messages.

Installation

DIN rail mounting,connect 24VDC power,wire Ethernet and PROFIBUS DP bus,set PROFIBUS station address and point mapping via configuration software,check LED indicators.

Interface

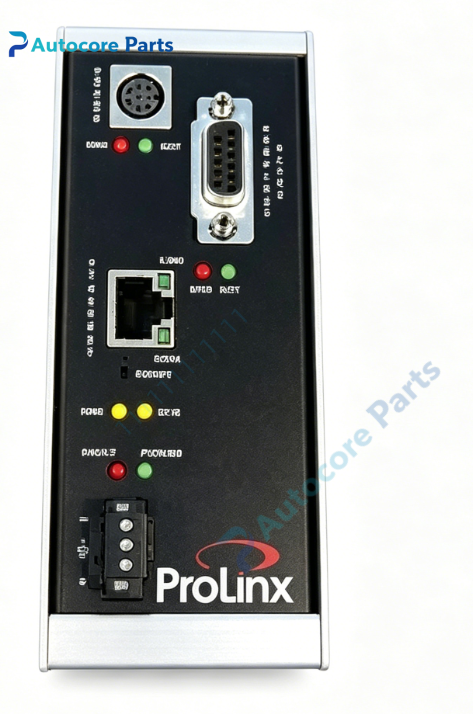

1*10/100Mbps Ethernet RJ45 port,PROFIBUS DP DB9F port,power terminal,run and fault status LED indicators.

Feature

Compact DIN rail housing,support IEC104 Edition2 data types,comes with GSD file,strong anti-interference for substation harsh electromagnetic environment.

Diagnostic

Check power,link and fault LED;communication failure:verify network cable,bus terminal resistor,station address and baud rate;data abnormal:check telemetry point mapping and GSD configuration.

Product Brief

5205-104S-PDPS is ProSoft ProLinx protocol gateway,bridge IEC104 server network and PROFIBUS DP master devices,for power substation automation maintenance and system transformation.
