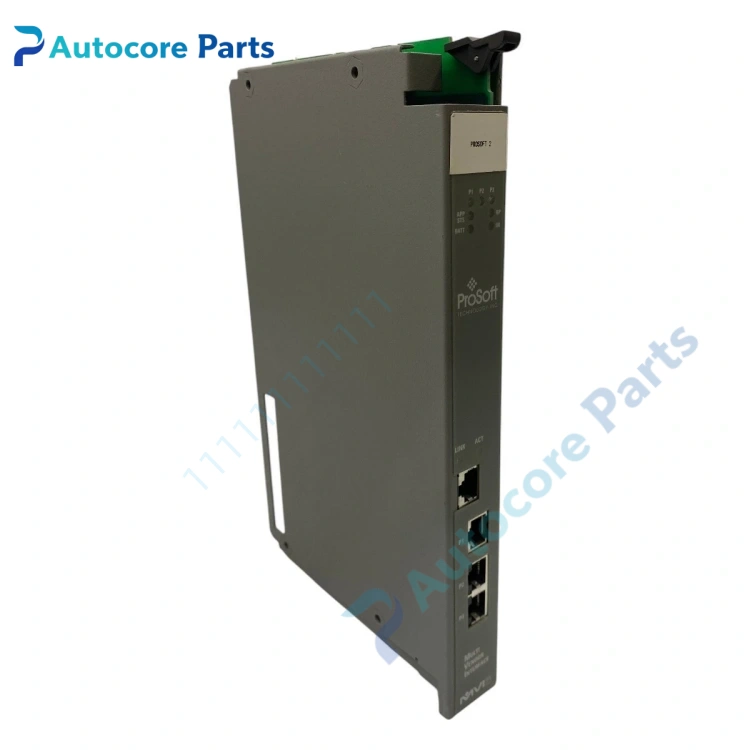

ProSoft MVI71-MNET Communication Module

Feature & Principle

It is a Modbus TCP/IP communication module developed by ProSoft for Allen‑Bradley 1771 PLC rack. It supports both Modbus TCP client and server modes at the same time. It establishes Ethernet connection with Modbus instruments, transmitters and other controllers, and completes data mapping exchange with the 1771 CPU via backplane bus. It has internal register buffer for data isolation, supports multiple floating-point formats, configured by ProSoft Configuration Builder software. This module is discontinued and widely used as maintenance spare for old 1771 automation systems.

Specifications

Model: MVI71-MNET Brand: ProSoft Technology Applicable rack: Allen-Bradley 1771 Protocol: Modbus TCP/IP, client & server Network port: 1 × Ethernet Internal register space: 5000 words Configuration software: ProSoft Configuration Builder Floating point: Support Enron / Daniel float format Installation: 1771 chassis slot mount Application: Petrochemical, water treatment, power plant old PLC Modbus networking Certification: CE

Components & Diagnostics

Main control PCB, Ethernet transceiver chip, backplane interface circuit, flash memory, status LED indicators. Common faults: Ethernet link failure, module cannot handshake with CPU, register data disorder, power supply damage.

Product Brief

MVI71-MNET communication module, ProSoft Modbus TCP networking spare widely used for Allen-Bradley 1771 PLC cabinet overhaul and replacement.
