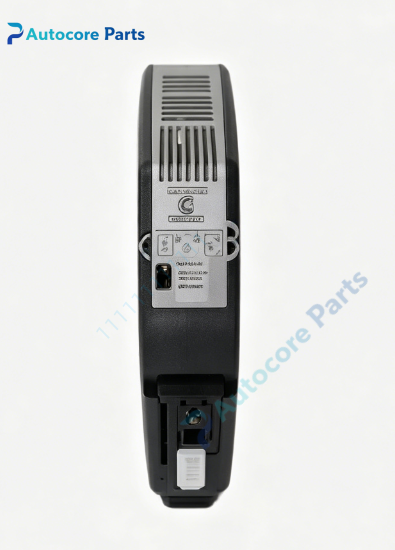

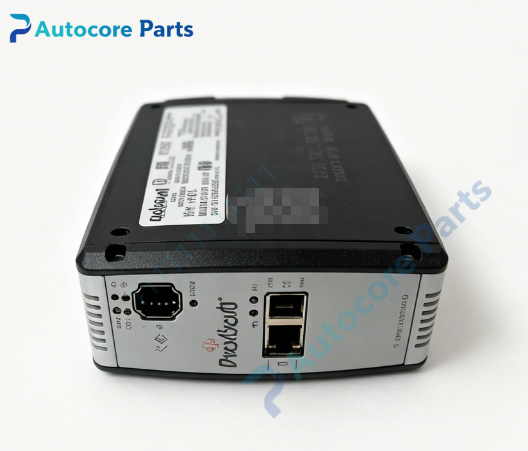

ProSoft PLX32-EIP-SIE EtherNet/IP to Siemens S7 Gateway

Technical Specifications

Model:PLX32-EIP-SIE

Brand:ProSoft

Product type:Standalone Dual Ethernet EtherNet/IP to Siemens S7 Communication Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:350mA@24VDC,max 650mA

Communication:EtherNet/IP adapter;S7 protocol over ISO-on-TCP

Weight:0.42kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +80℃

Relative humidity:5%~95%,non-condensing

Dimension:140mm55mm115mm

Certification:CE,UL,Class I Division2

System compatibility

PLX32-EIP-SIE belongs to ProSoft PLX32 series standalone protocol gateway.

It communicates with Rockwell ControlLogix,CompactLogix and other EtherNet/IP controllers via EtherNet/IP network.

It connects Siemens S7-1200,S7-1500,S7-300,S7-400 PLC using ISO-on-TCP protocol.

Suitable for mixed Rockwell and Siemens production line,process control system renovation and spare replacement.

Function

Works as EtherNet/IP adapter and S7 client.

Supports EtherNet/IP implicit I/O real-time connection and explicit messaging.

Embedded EDS add-on profile for quick integration in Studio5000.

Supports read and write access to Siemens DB blocks,input,output,memory bits and marker areas.

Dual Ethernet ports support network isolation,each port can be assigned independent IP address.

Supports simultaneous connections to multiple Siemens S7 PLCs.

SD card slot for configuration backup and fast field device replacement.

Supports ProSoft Discovery Service for IP configuration without same subnet.

Bidirectional data exchange between EtherNet/IP and Siemens S7 network.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect two RJ45 ethernet cables to EtherNet/IP network and Siemens PLC network separately.

Configure IP address,S7 connection parameters and data mapping in ProSoft Configuration Builder.

Import EDS file into Studio5000,establish EtherNet/IP connection,check LED indicators after power-up.

Interface

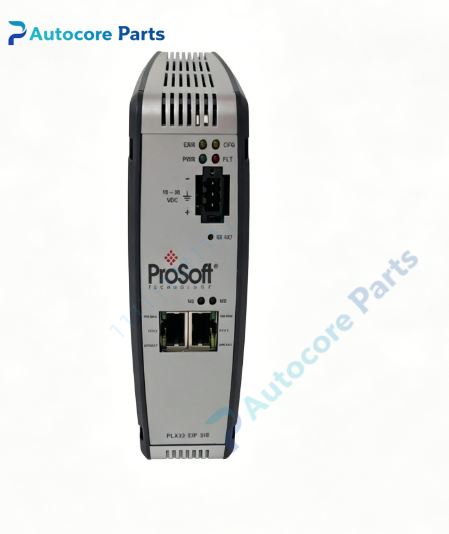

2*10/100Mbps Ethernet RJ45 ports,SD card slot,power terminal,LED indicators:PWR,FLT,CFG,NS,MS.

Feature

DIN rail mounted compact standalone gateway design.

Dual isolated Ethernet ports for network segmentation and security isolation.

Supports conformal coating option for corrosive and humid harsh environments.

Configuration backup via SD card for fast on-site replacement.

Shock and vibration resistant design,stable operation in industrial cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify ethernet wiring,IP address and S7 PLC firewall setting;data abnormal:check DB block number and data mapping table.

Product Brief

PLX32-EIP-SIE is ProSoft PLX32 series dual ethernet protocol gateway.

It realizes bidirectional data exchange between Rockwell EtherNet/IP controllers and Siemens S7 series PLC,for mixed-brand industrial automation system maintenance and transformation.
