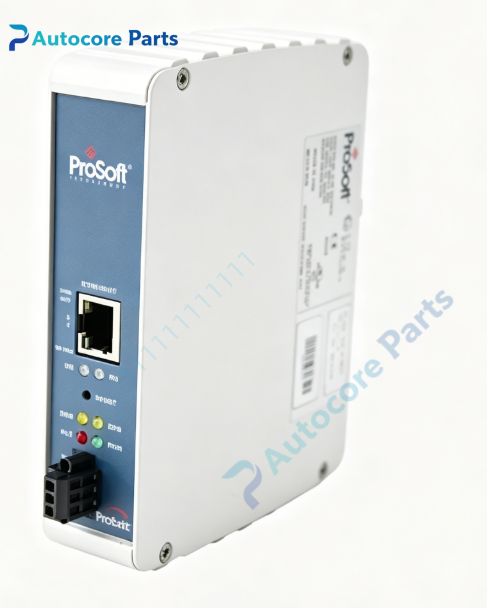

ProSoft PLX81-EIP-61850 EtherNet/IP to IEC 61850 Gateway

Technical Specifications

Model:PLX81-EIP-61850

Brand:ProSoft

Product type:Standalone Single-Port EtherNet/IP to IEC 61850 Substation Communication Gateway

Power supply:10~36VDC,nominal 24VDC

Current consumption:200mA max@24VDC

Communication:EtherNet/IP server(Class1/Class3);IEC61850 MMS client,support up to 20 IED devices

Weight:0.40kg

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:140mm55mm115mm

Certification:CE,UL,Class I Division2

System compatibility

PLX81-EIP-61850 belongs to ProSoft PLX80 series standalone protocol gateway.

It communicates with Rockwell ControlLogix,CompactLogix PAC via EtherNet/IP network.

It connects substation IED intelligent electronic devices based on IEC61850 MMS protocol.

Suitable for power substation automation system,energy monitoring project renovation and spare replacement.

Function

Works as EtherNet/IP server and IEC61850 MMS client.

EtherNet/IP Class1 implicit I/O,support up to 10 implicit I/O connections;Class3 explicit messaging support 2 additional EtherNet/IP clients.

Import SCL IED configuration files,map complex IEC61850 data to Rockwell controller tags.

Supports simultaneous connection to max 20 IEC61850 IEDs.

Built-in NTP time synchronization function for substation time consistency.

SD card slot for optional configuration backup and quick device replacement.

Supports ProSoft Discovery Service for temporary IP assignment.

Bidirectional data exchange between Rockwell EtherNet/IP controller and substation IEC61850 IED equipment.

Installation

Mount gateway on DIN rail,connect 24VDC power supply.

Connect RJ45 ethernet cable for both EtherNet/IP and IEC61850 network.

Import IED SCL files and configure data mapping in ProSoft 61850 Configuration Manager.

Import AOI add-on instruction into RSLogix5000/Studio5000,establish EtherNet/IP connection,check LED indicators after power-up.

Interface

1*10/100Mbps Ethernet RJ45 port,SD card slot,power terminal,LED indicators:PWR,FLT,CFG,NS,MS.

Feature

DIN rail mounted compact standalone gateway design,single ethernet port.

Supports IEC61850 MMS protocol for substation protection and measurement IED.

Built-in tag monitor tool for real-time data view and commissioning debug.

Configuration backup via SD card for fast field replacement.

Shock and vibration resistant design,stable operation in power cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify ethernet wiring,IP address and IED network setting;data abnormal:check SCL file import status and tag mapping table.

Product Brief

PLX81-EIP-61850 is ProSoft PLX80 series single port substation protocol gateway.

It realizes bidirectional data conversion between Rockwell EtherNet/IP PAC and IEC61850 substation IEDs,widely used for power substation automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
