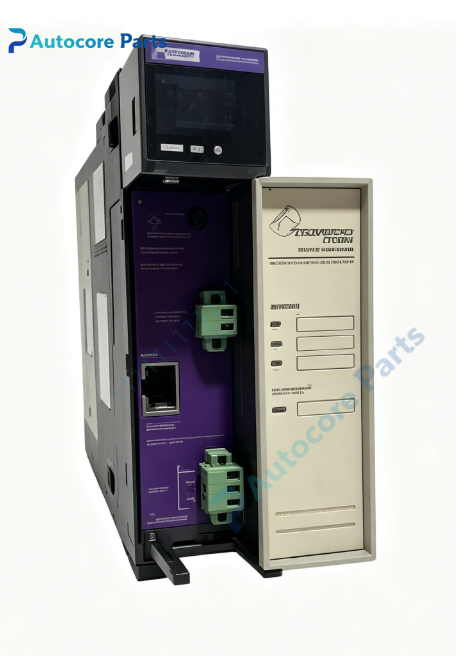

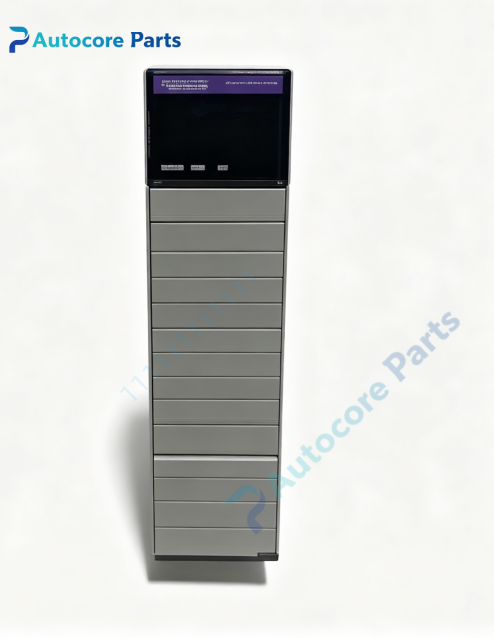

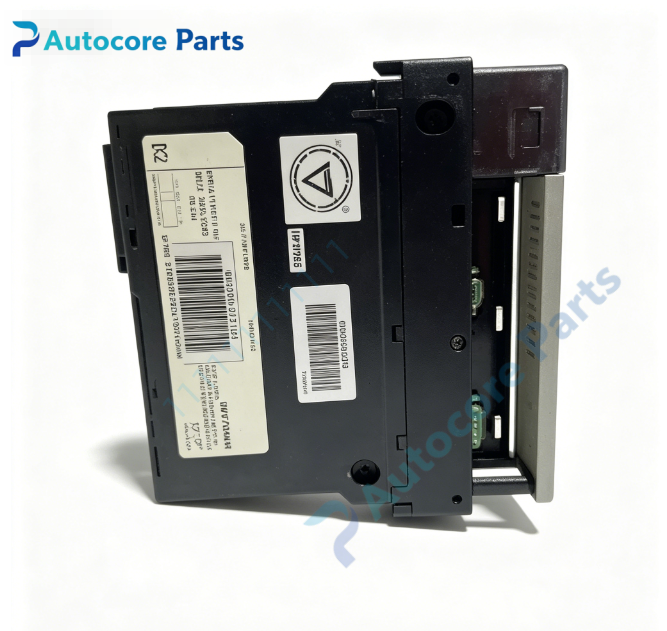

ProSoft PS56-LON-001 SlotServer LonWorks Communication Module

Technical Specifications

Model:PS56-LON-001

Brand:ProSoft

Product type:ControlLogix 1756 Chassis SlotServer LonWorks Communication Interface Module

Backplane power:600mA @5VDC

Communication:TP/FT-10 LonWorks port;110/100BaseT Ethernet;2RS485 serial ports

Weight:0.45kg

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:1756 single slot module,130mm58mm95mm

Certification:CE,UL,Class I Division2

System compatibility

PS56-LON-001 belongs to ProSoft PS56 SlotServer series in-rack module.

It is installed in Rockwell 1756 ControlLogix local or remote rack,realizes data interaction with ControlLogix controller via backplane.

It connects building automation LonWorks field devices through TP/FT-10 LonWorks bus.

Suitable for building HVAC,lighting control,legacy building automation system renovation and spare replacement.

Function

SlotServer multi-protocol gateway inside ControlLogix rack.

Supports TP/FT-10 LonWorks communication,service pin for LonWorks device commissioning.

Supports profile-based data mapping,max 1500 data points.

Built-in web page configuration,diagnostic and tag monitoring function.

Ethernet port for module configuration and secondary network connection,dual RS485 serial ports for additional serial protocols.

Directly map LonWorks network variables to ControlLogix controller tags,no complex ladder logic required.

Bidirectional data exchange between ControlLogix and LonWorks building automation network.

Installation

Insert module into empty slot of 1756 ControlLogix chassis.

Connect LonWorks bus cable to TP/FT-10 terminal,ethernet cable for web configuration if needed.

Power on the rack,access built-in web server to configure LonWorks network and data mapping.

Use service pin to commission LonWorks nodes,check LED indicators after power-up.

Interface

1TP/FT-10 LonWorks port,110/100Mbps Ethernet RJ45 port,2*RS485 terminal blocks,1756 backplane connector,LED indicators:PWR,FLT,COM,NET.

Feature

1756 single slot rack-mounted SlotServer design,directly integrated into ControlLogix chassis.

Supports LonWorks TP/FT-10 twisted pair media for building automation.

Web-based configuration and diagnostic interface for convenient on-site commissioning.

Supports hot swap in qualified ControlLogix chassis.

Shock and vibration resistant design,stable operation in automation cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify LonWorks bus wiring and terminal resistance;data abnormal:check network variable binding and tag mapping table.

Product Brief

PS56-LON-001 is ProSoft PS56 series in-chassis SlotServer communication module for Rockwell ControlLogix 1756 rack.

It connects ControlLogix controller with LonWorks building automation network,used for HVAC,lighting and building control system maintenance and transformation.
