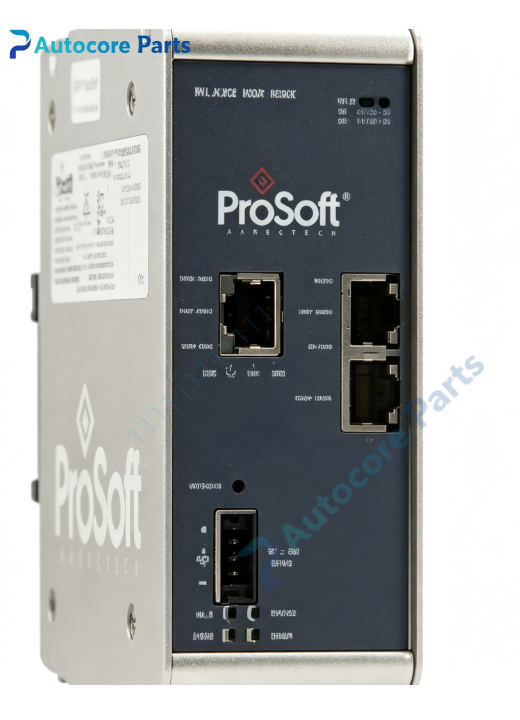

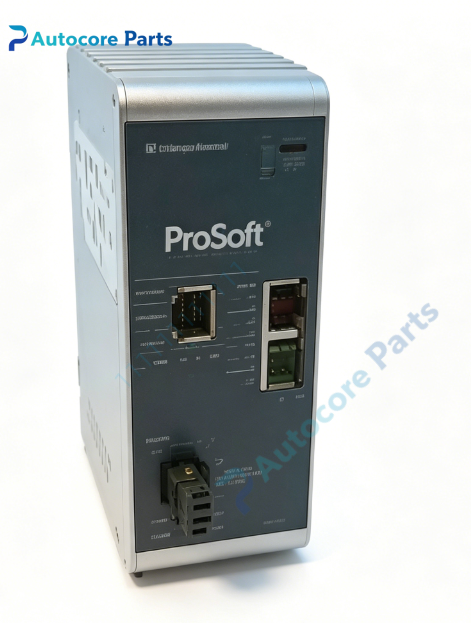

ProSoft PLX82-EIP-PNC EtherNet/IP to PROFINET Controller Gateway

Technical Specifications

Model:PLX82-EIP-PNC

Brand:ProSoft

Product type:EtherNet/IP Server to PROFINET Controller Standalone Dual Ethernet Communication Gateway

Power supply:10~36VDC,nominal 24VDC,max 610mA@24VDC

Ethernet interface:210/100Mbps RJ45,two physically isolated independent subnets

PROFINET:Controller (Master) mode,PROFINET v2 Class A,support up to 36 PROFINET RT slave devices

PROFINET cyclic I/O:Input 3840 bytes,Output 3840 bytes

EtherNet/IP:Server/Adapter mode,max 8 Class1 I/O connections,min RPI 2ms

Weight:0.52kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-10℃ ~ +70℃

Relative humidity:5%~95%,non-condensing

Dimension:140.1mm52.4mm*110.9mm

Certification:CE,UL,Class I Division2,ODVA,PROFINET certified

System compatibility

PLX82-EIP-PNC belongs to ProSoft PLX82 series cross-brand industrial protocol gateway.

Enable Rockwell Logix EtherNet/IP controllers to directly control PROFINET RT field devices.

Compatible with ControlLogix,CompactLogix,Studio5000 programming environment.

Works with Siemens PROFINET remote I/O,drives,HMI and other PROFINET slave equipment.

Suitable for automotive production line,machinery OEM,water treatment,petrochemical cross-brand system renovation and spare replacement.

Function

Bidirectional high-speed data conversion between EtherNet/IP CIP and PROFINET RT.

Dual physically separated Ethernet ports,EtherNet/IP and PROFINET run on independent subnets for network isolation.

Work as PROFINET Controller,scan and manage up to 36 PROFINET RT slave nodes.

Embedded AOP/EDS file for Studio5000,quickly import into Logix project without manual tag mapping.

Onboard SD card slot(optional) for configuration backup,restore and clone device parameters.

Built-in web server for real-time network status view,event log and communication diagnostic.

Support remote troubleshooting for both EtherNet/IP and PROFINET network.

Configuration via ProSoft Configuration Builder software.

Installation

Mount gateway on DIN rail,connect 10~36VDC power supply and earth terminal.

Connect one RJ45 port to Rockwell EtherNet/IP control network,another port to PROFINET field network.

Configure PROFINET device list,IP address and cyclic I/O mapping in ProSoft Configuration Builder.

Import AOP file into Studio5000 and download the gateway configuration.

Check LED indicators after power-on.

Interface

2*10/100Mbps Ethernet RJ45,SD card slot,power terminal,reset button,LED indicators:PWR,RUN,NET1,NET2,ERR.

Feature

Industrial aluminum DIN rail housing,stable for factory workshop environment.

Dual isolated Ethernet ports,separate two different industrial networks,reduce network security risks.

PROFINET Controller function,allow Logix PLC to directly manage PROFINET field devices.

Large cyclic I/O capacity,support high-volume real-time data transmission.

AOP/EDS embedded file,simplify Studio5000 project integration and reduce engineering time.

SD card configuration backup,convenient for on-site replacement and fast recovery.

Shock and vibration resistant design,long-term stable operation in industrial control cabinet.

Diagnostic

Check PWR and network LED;communication failure:verify IP subnet,PROFINET device name and cable;data abnormal:check cyclic I/O mapping,slave device online status and RPI configuration.

Product Brief

PLX82-EIP-PNC is ProSoft PLX82 series cross-brand protocol gateway.

It enables Rockwell EtherNet/IP PAC to act as PROFINET controller to communicate with PROFINET RT field devices,widely used for Rockwell and Siemens mixed automation system integration.
