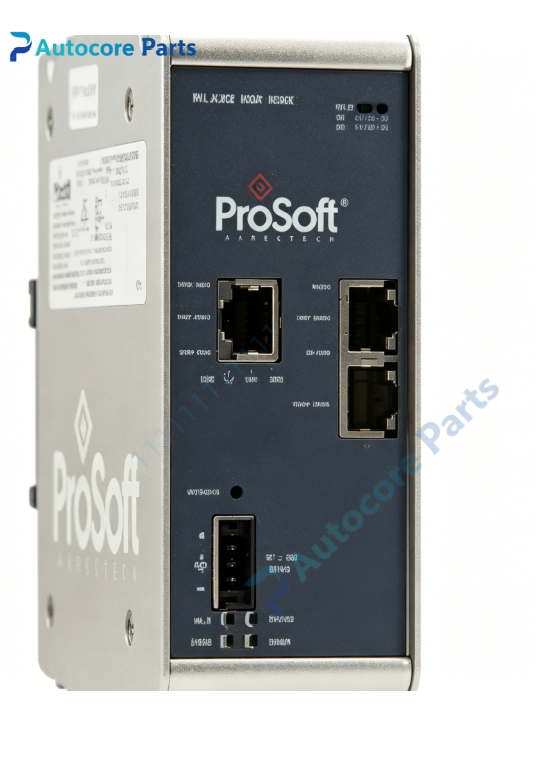

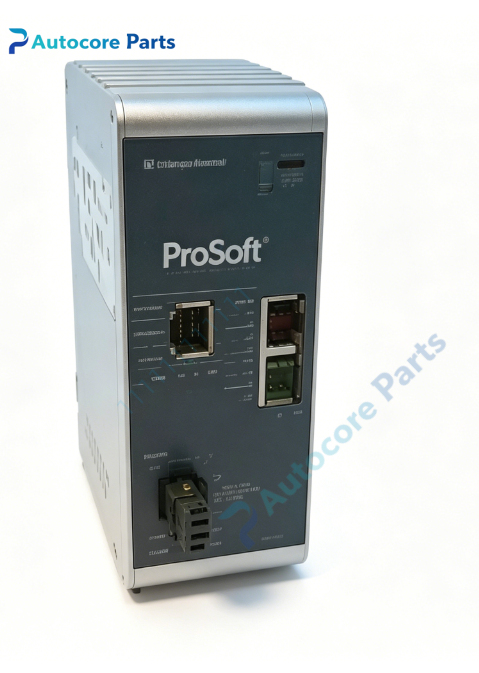

ProSoft PLX82-MBTCP-PNC Modbus TCP to PROFINET Controller Gateway

Technical Specifications

Model:PLX82-MBTCP-PNC

Brand:ProSoft

Product type:Modbus TCP Client/Server to PROFINET Controller Standalone Dual Ethernet Communication Gateway

Power supply:10~36VDC,nominal 24VDC,max 610mA@24VDC

Ethernet interface:210/100Mbps RJ45,two physically isolated independent subnets,1500Vrms isolation

PROFINET:Controller (Master) mode,PROFINET v2 Class A,support up to 36 PROFINET RT slave devices

PROFINET cyclic I/O:Input 3840 bytes,Output 3840 bytes

Modbus TCP:Support Client and Server mode,up to 10000 user mapping registers,support Enron Daniels floating point

Weight:0.52kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-10℃ ~ +70℃

Relative humidity:5%~95%,non-condensing

Dimension:140.1mm52.4mm*110.9mm

Certification:CE,UL,Class I Division2,PROFINET certified

System compatibility

PLX82-MBTCP-PNC belongs to ProSoft PLX82 series cross-brand industrial protocol gateway.

Enable Modbus TCP PLC or host system to directly control PROFINET RT field equipment.

Compatible with Modbus TCP controllers,SIEMENS PROFINET remote I/O,AC drives,HMI and other PROFINET slave devices.

Suitable for machinery OEM,automotive production line,water treatment,petrochemical,energy industry mixed system renovation and spare replacement.

Function

Bidirectional real-time data conversion between Modbus TCP and PROFINET RT.

Dual physically separated Ethernet ports,Modbus TCP network and PROFINET field network run on independent subnets for network isolation.

Work as PROFINET Controller,scan and manage up to 36 PROFINET RT slave nodes.

Support Modbus TCP client and server dual mode,flexible register read/write configuration,Enron Daniels float data support.

Onboard SD card slot(optional) for configuration backup,restore and clone device parameters.

Built-in web server for real-time network status view,event log and communication diagnostic.

Remote troubleshooting for both Modbus TCP and PROFINET network.

Configuration via ProSoft Configuration Builder software.

Installation

Mount gateway on DIN rail,connect 10~36VDC power supply and earth terminal.

Connect one RJ45 port to Modbus TCP control network,another port to PROFINET field network.

Configure PROFINET device list,IP address and cyclic I/O mapping in ProSoft Configuration Builder.

Set Modbus TCP register read/write commands,byte/word swap and data mapping table.

Check LED indicators after power-on.

Interface

2*10/100Mbps Ethernet RJ45,SD card slot,power terminal,reset button,LED indicators:PWR,RUN,NET1,NET2,ERR.

Feature

Industrial aluminum DIN rail housing,stable for factory workshop environment.

Dual isolated Ethernet ports,separate two different industrial networks,reduce network security risks.

PROFINET Controller function,allow Modbus TCP host to directly manage PROFINET field devices.

Large cyclic I/O capacity,support high-volume real-time data transmission.

Built-in register mapping area,simplify cross-protocol data configuration,support floating-point data.

SD card configuration backup,convenient for on-site replacement and fast recovery.

Shock and vibration resistant design,long-term stable operation in industrial control cabinet.

Diagnostic

Check PWR and network LED;communication failure:verify IP subnet,PROFINET device name and cable;data abnormal:check cyclic I/O mapping,slave device online status and Modbus register polling configuration.

Product Brief

PLX82-MBTCP-PNC is ProSoft PLX82 series cross-brand protocol gateway.

It enables Modbus TCP controllers to communicate and control PROFINET RT field devices,widely used for mixed automation system integration of Modbus and PROFINET equipment.
