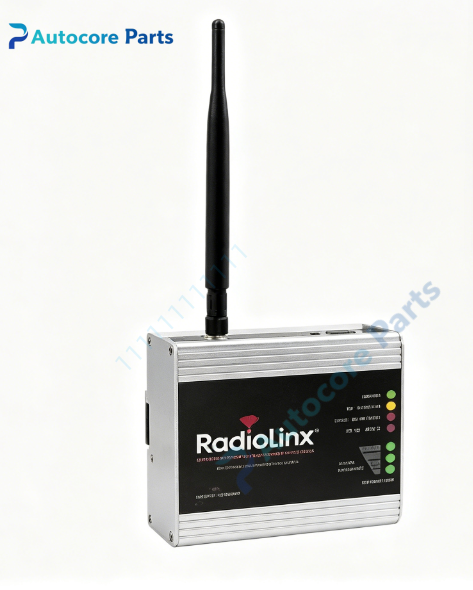

ProSoft RLX-IFH24S-A RadioLinx 2.4GHz FHSS Industrial Serial Radio

Technical Specifications

Model:RLX-IFH24S-A

Brand:ProSoft

Product type:RadioLinx 2.4GHz FHSS Industrial Serial Wireless Transceiver,FCC regional version

Power supply:10~30VDC

RF frequency:2.400~2.4835GHz

Transmit power:10mW~1W programmable

Serial baud rate:19.2,115,172,230 kbps

Communication interface:RS232,RS485,1RP-SMA antenna port

Encryption:128-bit AES encryption

Weight:0.45kg

Operating temperature:-40℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:122mm88mm*43mm

Certification:CE,UL,FCC,Class I Division2

System compatibility

RLX-IFH24S-A belongs to ProSoft legacy RadioLinx RLX-IFH series frequency hopping serial radio.

Configurable as master,remote or repeater station.

Supports Modbus RTU,DNP3,DF1,ASCII serial protocols.

Compatible with Rockwell,Schneider,Siemens serial PLC,RTU and SCADA equipment.

Suitable for water treatment,electric utility,oil & gas pipeline,mining long-distance serial SCADA wireless renovation and spare replacement.

Function

FHSS frequency hopping spread spectrum technology,strong anti-interference and anti-multipath fading performance.

128-bit AES encryption,protect industrial serial control data security.

Support point-to-point,point-to-multipoint,store-and-forward repeater network topology.

Built-in 32-bit CRC and ARQ automatic retransmission mechanism,ensure reliable serial data delivery.

ControlScape FH configuration software for network setup,parameter configuration and online signal diagnosis.

Comes with OPC server,realize radio operating status monitoring via HMI/SCADA system.

Transparent wireless transmission for RS232/RS485 serial field data.

Installation

Mount module on DIN rail,connect 10~30VDC power supply.

Install matched 2.4GHz antenna on RP-SMA port,add lightning protection for long-distance application.

Connect RS232/RS485 serial cable to PLC or RTU equipment.

Set radio mode,network ID and serial parameters in ControlScape FH software.

Check RF signal strength and LED indicators after power-on.

Interface

RS232 terminal port,RS485 terminal port,RP-SMA antenna connector,power terminal,LED indicators:PWR,RF,COM.

Feature

DIN rail compact industrial design,wide temperature range adapt to harsh field environment.

FHSS hopping technology,stable communication under heavy electromagnetic interference.

Programmable transmit power up to 1W,line-of-sight distance up to 15+ miles.

Transparent serial bridge,no need to modify original PLC program.

Online signal strength and fault diagnostic function for easy commissioning.

Shock and vibration resistant design,stable operation in outdoor field cabinet environment.

Diagnostic

Check module power and RF LED;communication failure:check antenna,cable,network ID and RF interference;data abnormal:verify serial baud rate,parity and address configuration.

Product Brief

RLX-IFH24S-A is ProSoft RadioLinx legacy series 2.4GHz FHSS industrial serial wireless radio,FCC version.

It provides long-distance reliable wireless transmission for serial SCADA and field instrument serial data,widely used in oil,water,electric utility automation system maintenance and transformation.
