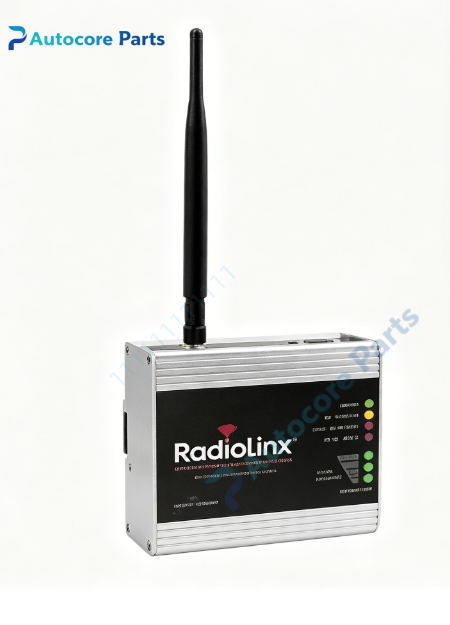

ProSoft RLX-IFH9E-A RadioLinx 900MHz FHSS Industrial Ethernet Radio

Technical Specifications

Model:RLX-IFH9E-A

Brand:ProSoft

Product type:RadioLinx Legacy 900MHz FHSS Industrial Ethernet Wireless Transceiver,FCC regional version

Power supply:10~24VDC

RF frequency:902 ~ 928 MHz license free band

Transmit power:100mW ~ 1W programmable

Radio data rate:1.1Mbps / 345kbps selectable

Communication interface:210/100Mbps Ethernet RJ45,1RS232 configuration port,1RP-SMA antenna port

Encryption:128-bit AES encryption

Weight:0.55kg

Operating temperature:-40℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:122mm88mm*43mm

Certification:CE,UL,FCC,Class I Division2

System compatibility

RLX-IFH9E-A belongs to ProSoft legacy RadioLinx RLX-IFH series frequency hopping Ethernet radio.

Configurable as master,remote or repeater station.

Supports point-to-point,point-to-multipoint network topology.

Compatible with Rockwell,Schneider,Siemens PLC,support EtherNet/IP,Modbus TCP industrial Ethernet protocol.

Can communicate with other RLX-IFH series 900MHz hopping radios.

Suitable for oil & gas pipeline,water utility,electric power,mine site long-distance SCADA wireless network renovation and spare replacement.

Function

FHSS frequency hopping spread spectrum technology,strong anti-interference and good penetration through vegetation and obstacles.

128-bit AES encryption to protect industrial control data transmission security.

Built-in smart switch,support peer-to-peer packet forwarding.

32-bit CRC + ARQ automatic retransmission mechanism to guarantee reliable data transmission.

ControlScape FH configuration software for network layout,parameter setting and online RF signal diagnosis.

Comes with OPC server for radio network status monitoring via HMI/SCADA system.

Transparent wireless bridge for industrial Ethernet data.

Installation

Mount module on DIN rail,connect 10~24VDC power supply.

Install matched 900MHz antenna on RP-SMA port,install lightning protection for long antenna cable.

Connect Ethernet cable to PLC,RTU or industrial switch.

Set radio working mode,network ID and baud parameters in ControlScape FH software.

Check RF signal strength and LED indicators after power-on.

Interface

210/100Mbps Ethernet RJ45,1RS232 debug terminal,RP-SMA antenna connector,power terminal,LED indicators:PWR,RF,COM,NET.

Feature

DIN rail compact metal industrial enclosure,wide temperature range for harsh field environment.

900MHz long wavelength,better obstacle penetration performance compared with 2.4G/5G Wi-Fi.

Programmable transmit power up to 1W,line-of-sight transmission up to 30+ miles.

FHSS hopping signal,hard to be intercepted and interfered.

Online RF signal strength and fault diagnostic function for convenient commissioning.

Shock and vibration resistant design,stable operation in outdoor field cabinet environment.

Diagnostic

Check module power and RF LED;communication failure:check antenna,cable,line of sight and RF interference;data abnormal:verify network ID and IP address configuration.

Product Brief

RLX-IFH9E-A is ProSoft legacy RadioLinx RLX-IFH series 900MHz FHSS industrial Ethernet wireless radio,FCC version.

It provides long-range,high-reliability wireless Ethernet bridge for remote SCADA systems,widely used for oil,water and electric utility automation system maintenance and transformation.
