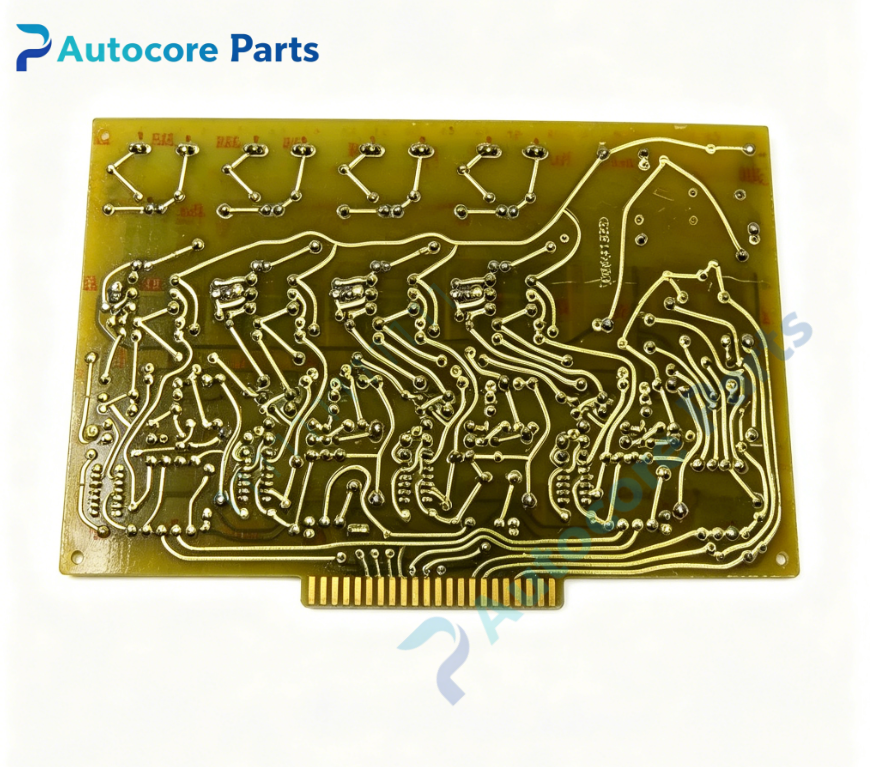

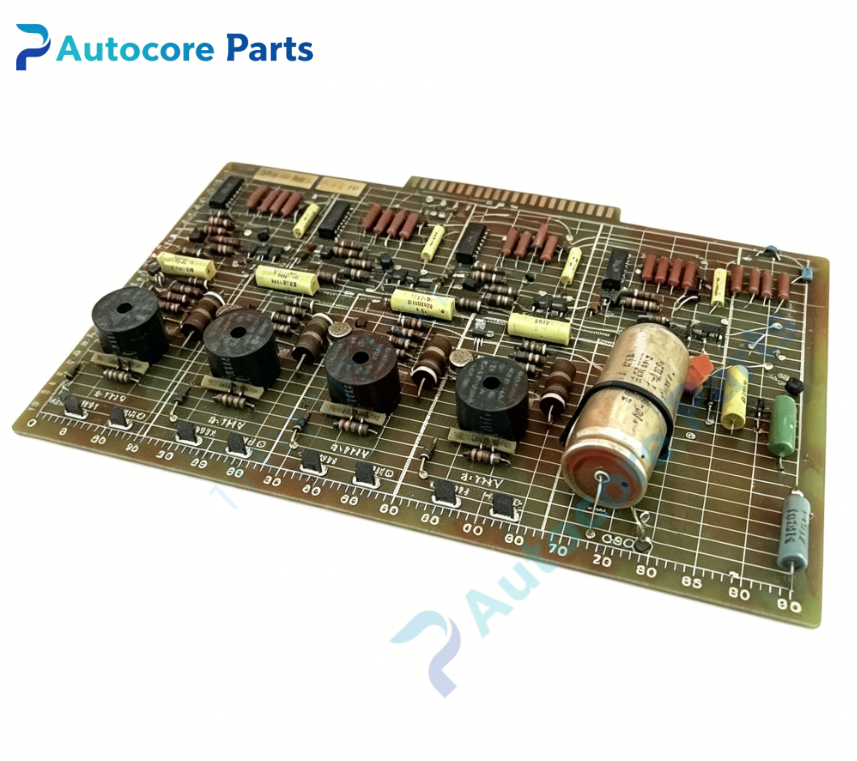

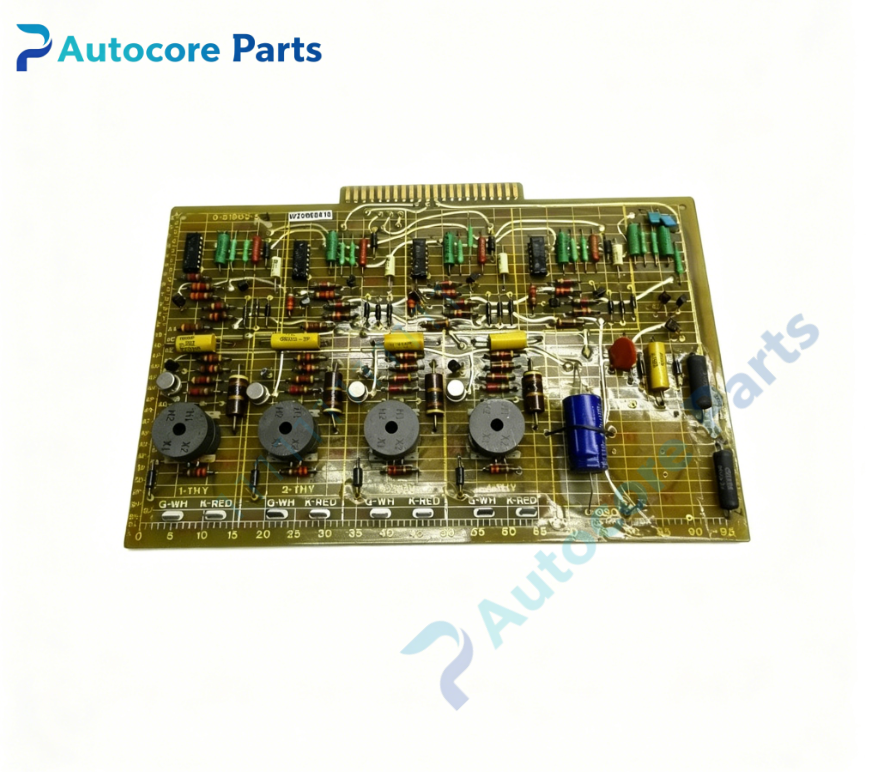

RELIANCE 0-51902-5A PC Driver Board

Technical SpecificationsModel:0-51902-5A Brand:RELIANCE Product type:PC Driver Board Weight:0.53kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51902-5A is RELIANCE upgraded PC rack plug-in pulse driver board. It is revised A version of 0-51902-5,designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with CGSA gate summing board and GDA gate driver amplifier board. It distributes phase trigger pulses and performs signal coupling isolation for SCR power thyristors. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51902-5A is dedicated PC driver PCB for RELIANCE MaxPak Plus DC drive system. Receive composite phase trigger signal from gate summing module. Split and distribute pulses to each phase channel,realize electrical isolation between low voltage control circuit and high voltage power side. Optimized onboard waveform shaping circuit to reduce pulse distortion under heavy load. Multi-channel LED indicators display each phase pulse transmission state and fault alarm. Enhanced surge absorption and transient overvoltage protection compared with 0-51902-5 base version,better suppress reverse high voltage feedback from power unit.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51902-5A PC driver board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal pulse signal exchange. Separate pulse output wiring from low-level analog signal cables. Power on system,check each phase pulse status via LED indicators. Verify pulse transmission integrity under light load and full load operating condition.

InterfaceBackplane edge connector,composite pulse input,multi-phase distributed pulse output,auxiliary power terminal,shield grounding terminal,multi-channel phase status LED indicators.

FeatureRELIANCE 0-51902-5A rack mount PC pulse driver board. Discrete pulse distribution and coupling circuit for multi-phase SCR trigger. Upgraded surge suppression and waveform shaping components. Gold plated edge connector for reliable rack signal transmission. Multi LED visual indication for each phase pulse working state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticPartial phase no firing:pulse channel open circuit or coupling component aging; Drive torque ripple:distorted pulse waveform; Fault LED lit:pulse channel short or surge overvoltage; No pulse output:input circuit damage; Intermittent phase loss firing:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51902-5A is PC driver board. It receives trigger signal,distributes multi-phase pulses and provides reinforced isolation coupling for SCR thyristors of Reliance MaxPak Plus legacy spindle DC drive power unit,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
