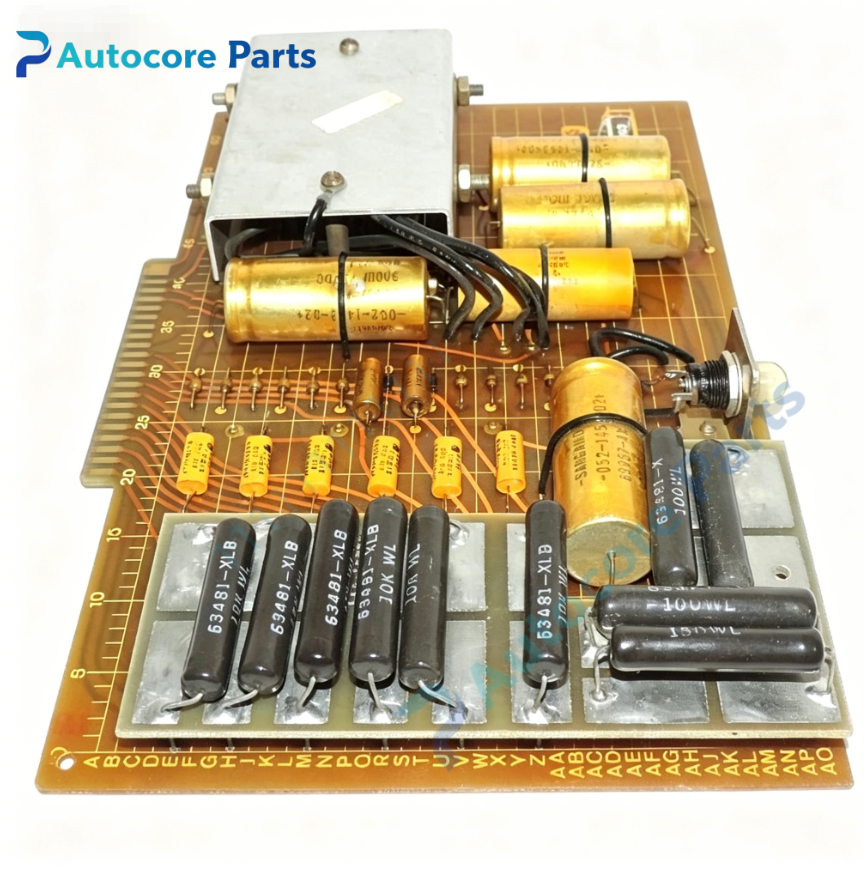

RELIANCE 0-51903 PSU Power Supply Board

Technical SpecificationsModel:0-51903 Brand:RELIANCE Product type:PSU Power Supply Board Weight:0.41kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51903 is RELIANCE PSU rack plug-in power supply board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,supplies stable multi-channel DC power for all rack control boards including ARM regulator board,CGSA gate summing board and SSC sequence board. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51903 is dedicated PSU power supply PCB for RELIANCE MaxPak Plus DC drive system. Accept AC input from drive auxiliary power,convert and output multiple stabilized DC voltage rails for analog and digital control circuits. Built-in overvoltage,undervoltage and overcurrent protection for each output channel. Dual LED indicators display power normal state and fault alarm. Onboard filter circuit suppresses switching noise to prevent interference to adjacent analog control cards. It monitors output voltage and sends power ready interlock signal to sequence control board.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51903 PSU board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal power distribution. Separate AC input wiring from low-voltage DC signal cables. Power on system,verify all output voltage levels. Check power ready signal and LED status.

InterfaceBackplane edge connector,AC auxiliary power input,multi-channel DC power output,power ready interlock output,shield grounding terminal,dual status LED indicators.

FeatureRELIANCE 0-51903 rack mount PSU power supply board. Switching regulated power circuit for multi-rail control power supply. Independent channel protection and power ready feedback function. Gold plated edge connector for reliable rack power transmission. Dual LED visual indication for power and fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticAll rack boards no function:AC input missing or primary circuit failure; Intermittent drive reset:output voltage sag or loose backplane contact; Fault LED lit:overcurrent or short circuit on output rail; Partial control board abnormal:one DC channel output drift; Random noise on analog signals:power filter component aging.

Product BriefRELIANCE 0-51903 is PSU power supply board. It converts auxiliary AC power into multiple stable DC supplies for all control cards inside Reliance MaxPak Plus legacy spindle DC drive rack and provides power interlock signal,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
