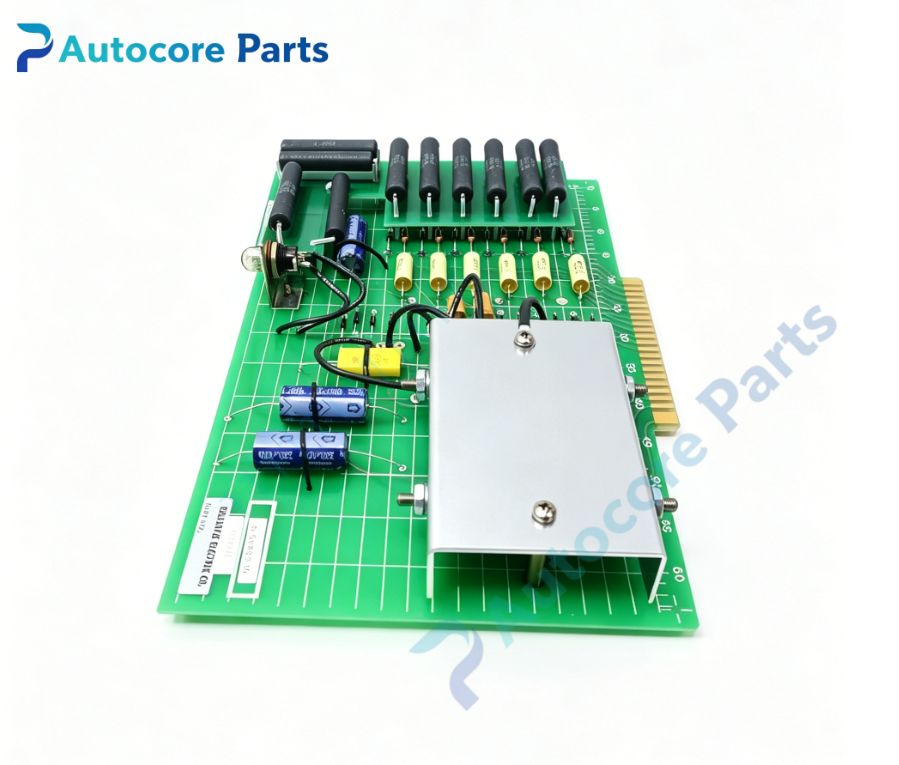

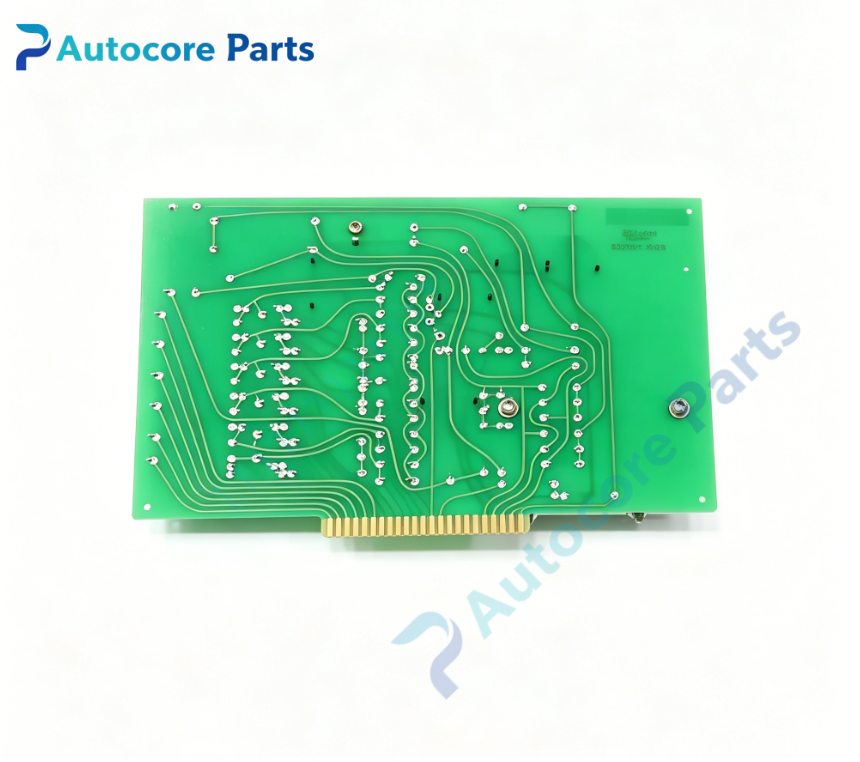

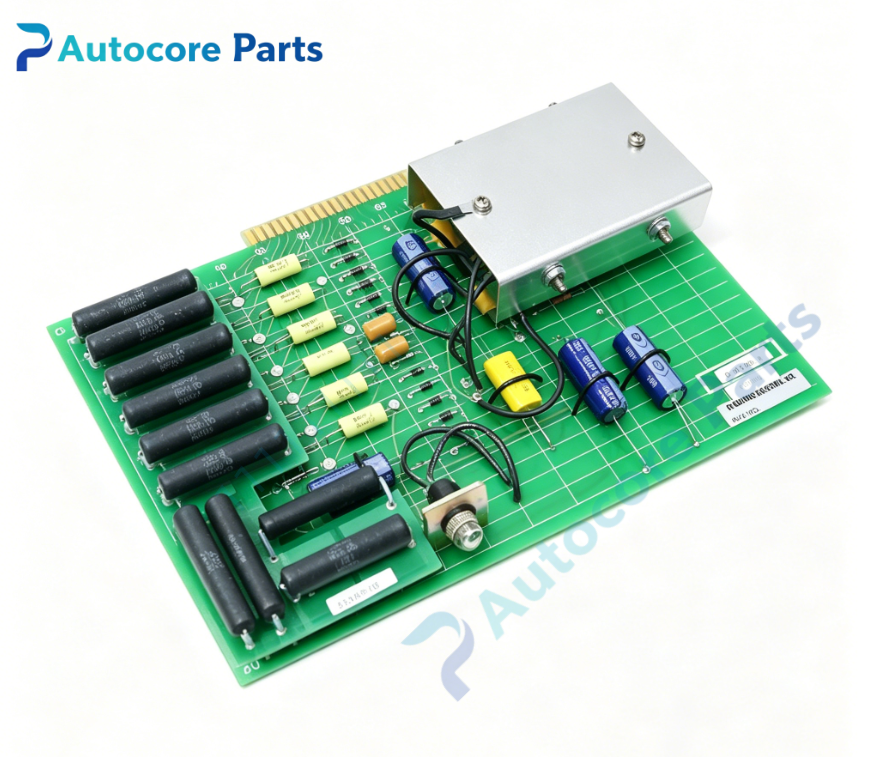

RELIANCE 0-51903-A PSU Power Supply Board

Technical SpecificationsModel:0-51903-A Brand:RELIANCE Product type:PSU Power Supply Board Weight:0.43kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51903-A is RELIANCE upgraded PSU rack plug-in power supply board. It is revised A version of 0-51903 base model,designed for Reliance MaxPak Plus series spindle DC drive rack,supplies stable multi-channel DC power for ARM regulator board,CGSA gate summing board,SSC sequence board and other rack control cards. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51903-A is dedicated PSU power supply PCB for RELIANCE MaxPak Plus DC drive system. Accept AC auxiliary power input,convert and output multiple stabilized DC voltage rails for analog and digital control circuits. Optimized circuit design improves output load stability and transient response compared with 0-51903. Built-in independent overvoltage,undervoltage and overcurrent protection for each output channel. Dual LED indicators display power normal state and fault alarm. Enhanced onboard filter circuit suppresses switching noise and cabinet interference. It continuously monitors output voltage and sends power ready interlock signal to sequence control board.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51903-A PSU board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal power distribution. Separate AC input wiring from low-voltage DC signal cables. Power on system,verify all output voltage levels. Check power ready interlock signal and LED working status.

InterfaceBackplane edge connector,AC auxiliary power input,multi-channel DC power output,power ready interlock output,shield grounding terminal,dual status LED indicators.

FeatureRELIANCE 0-51903-A rack mount PSU power supply board. Regulated power circuit for multi-rail control power supply. Independent channel protection and power ready feedback function. Improved load stability and noise filtering compared with base version. Gold plated edge connector for reliable rack power transmission. Dual LED visual indication for power and fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticAll rack boards no function:AC input missing or primary circuit failure; Intermittent drive reset:output voltage sag or loose backplane contact; Fault LED lit:overcurrent or short circuit on output rail; Partial control board abnormal:one DC channel output drift; Analog signal noise:filter component aging.

Product BriefRELIANCE 0-51903-A is PSU power supply board. It converts auxiliary AC power into multiple stable DC supplies for all control cards inside Reliance MaxPak Plus legacy spindle DC drive rack and provides power interlock signal,widely used as spare part for legacy DC drive equipment maintenance.
