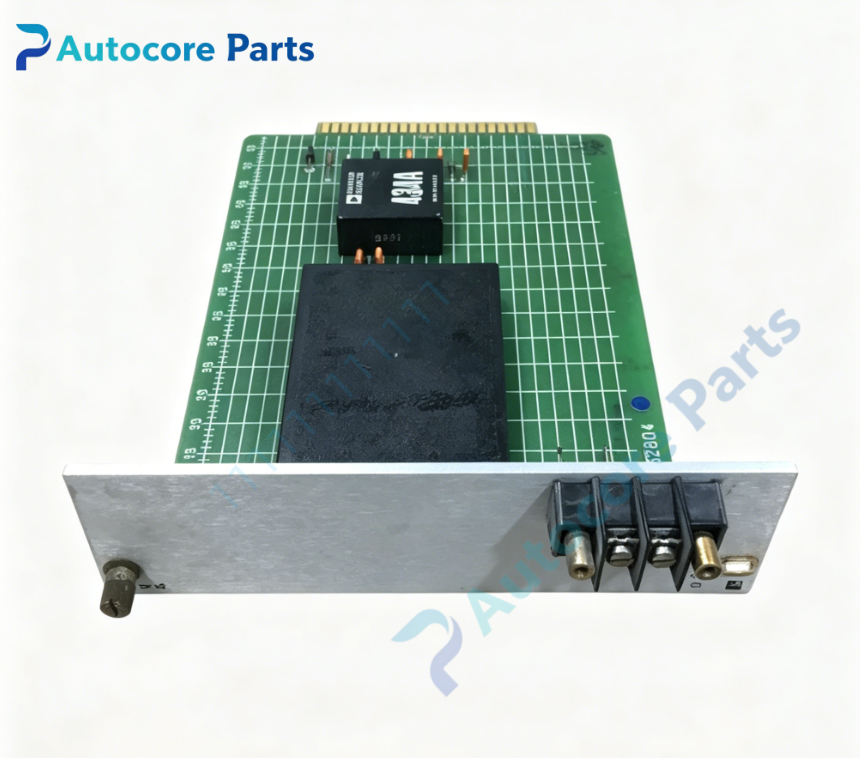

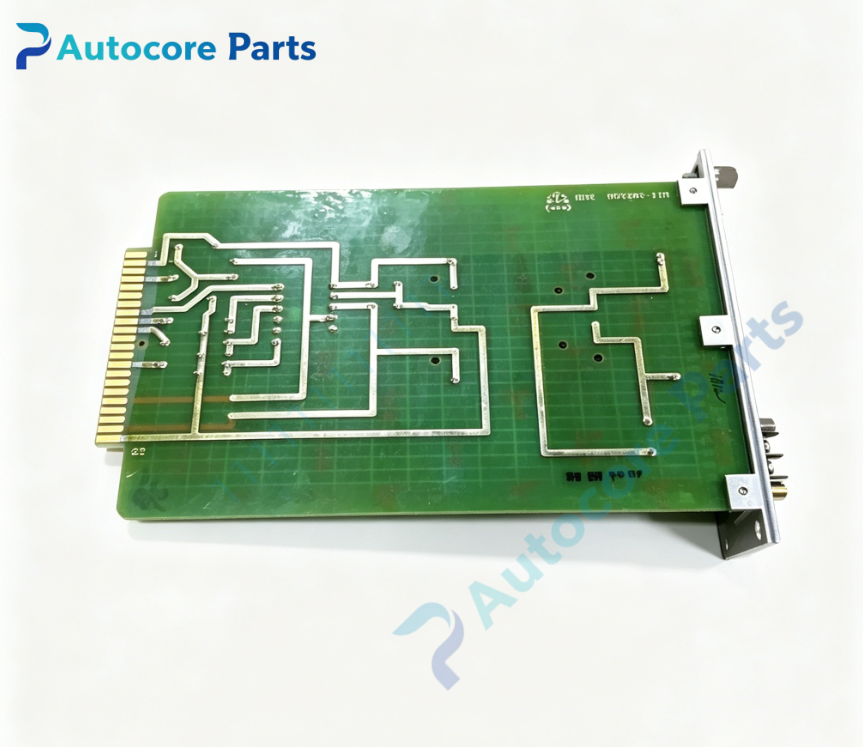

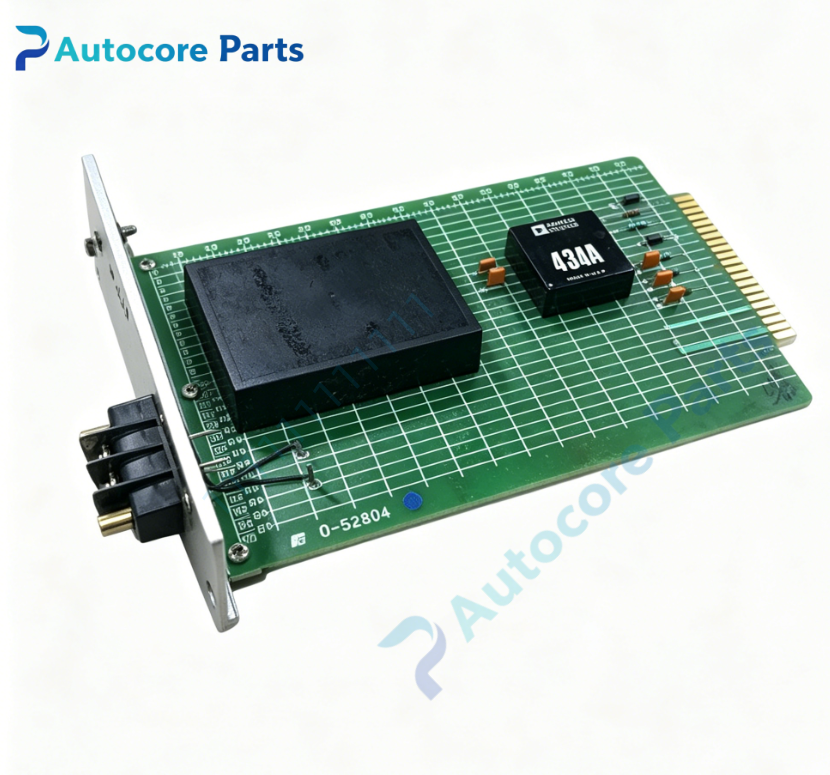

RELIANCE 0-52804 Encoder Feedback Board

Technical SpecificationsModel:0-52804 Brand:RELIANCE Product type:Encoder Feedback Board Weight:0.52kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-52804 is RELIANCE rack plug-in encoder feedback board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with ARM armature regulator board. It collects quadrature encoder pulse signals from spindle motor,processes pulse signals and provides speed and position feedback for closed-loop control. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-52804 is dedicated encoder feedback PCB for RELIANCE MaxPak Plus DC drive system. Receive quadrature A/B/Z phase pulse signals from incremental encoder. Complete pulse shaping,phase discrimination and frequency processing,output speed and position feedback signal to armature regulator board. Front panel multi-turn potentiometers for pulse scaling and offset calibration. Dual LED indicators display board power and valid encoder signal status. Built-in input surge and overvoltage protection to prevent circuit damage caused by pulse spike.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52804 encoder feedback board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal feedback signal transmission. Separate encoder field wiring from high power pulse and analog control cables. Power on system,calibrate pulse scaling parameter via potentiometers. Verify speed and position feedback synchronize with motor rotation.

InterfaceBackplane edge connector,encoder A/B/Z pulse signal input,processed speed & position feedback output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-52804 rack mount encoder feedback board. Quadrature encoder pulse conditioning and phase detection circuit. Front panel adjustable potentiometers for pulse range calibration. Surge protection for encoder input channel. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for power and encoder signal state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticMotor speed unstable:encoder signal attenuation or potentiometer drift; No speed feedback:encoder wiring open or input circuit damage; LED no light:board auxiliary power loss; Position signal noise:lack of shielding or ground interference; Intermittent speed fluctuation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52804 is encoder feedback board. It acquires and processes quadrature encoder pulse signals from spindle motor,provides speed and position feedback for Reliance MaxPak Plus legacy spindle DC drive closed-loop regulation,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
