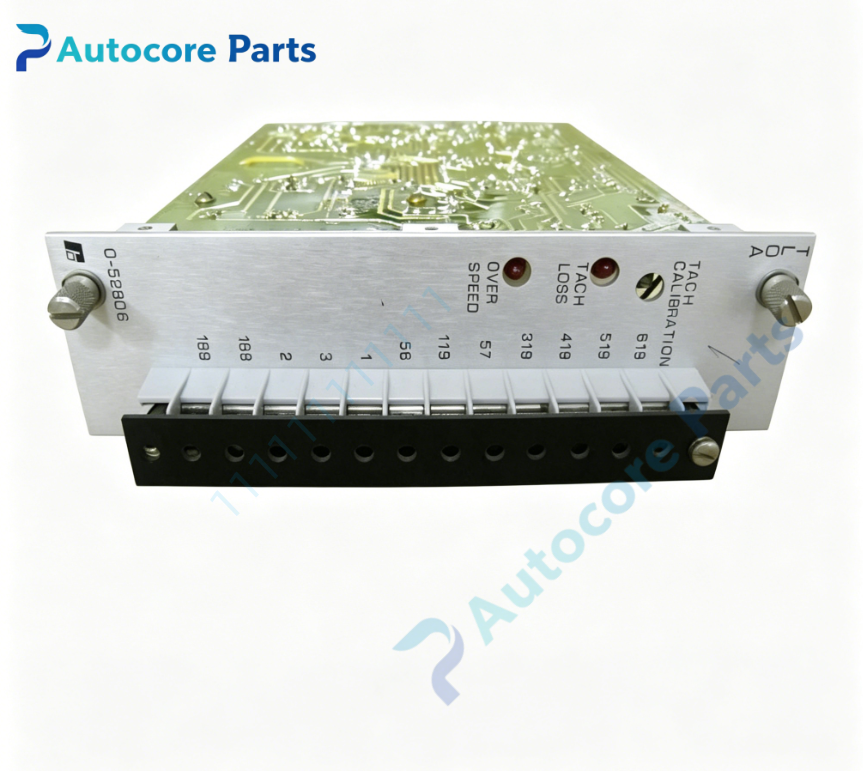

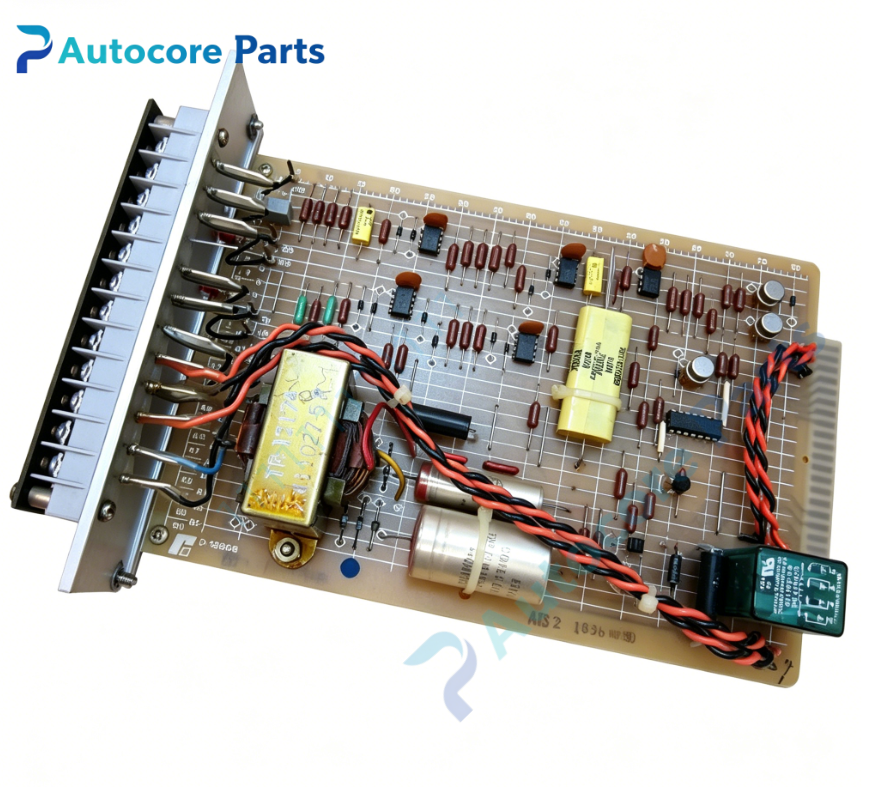

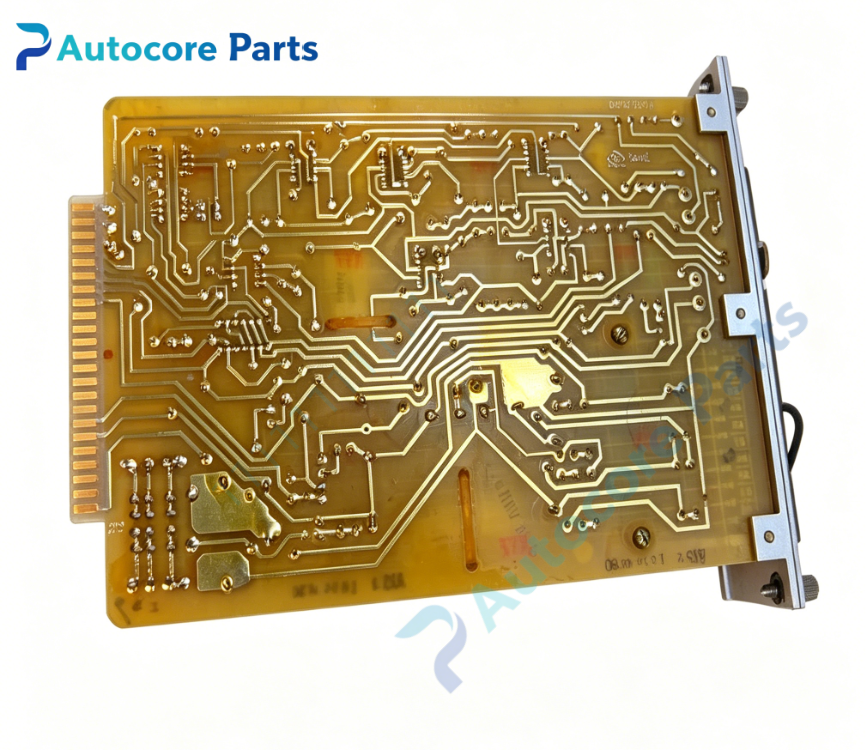

RELIANCE 0-52806 Resolver Feedback Board

Technical SpecificationsModel:0-52806 Brand:RELIANCE Product type:Resolver Feedback Board Weight:0.53kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-52806 is RELIANCE rack plug-in resolver feedback board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with ARM armature regulator board. It provides excitation signal for resolver and demodulates resolver signal to obtain motor speed and position feedback for closed-loop control. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

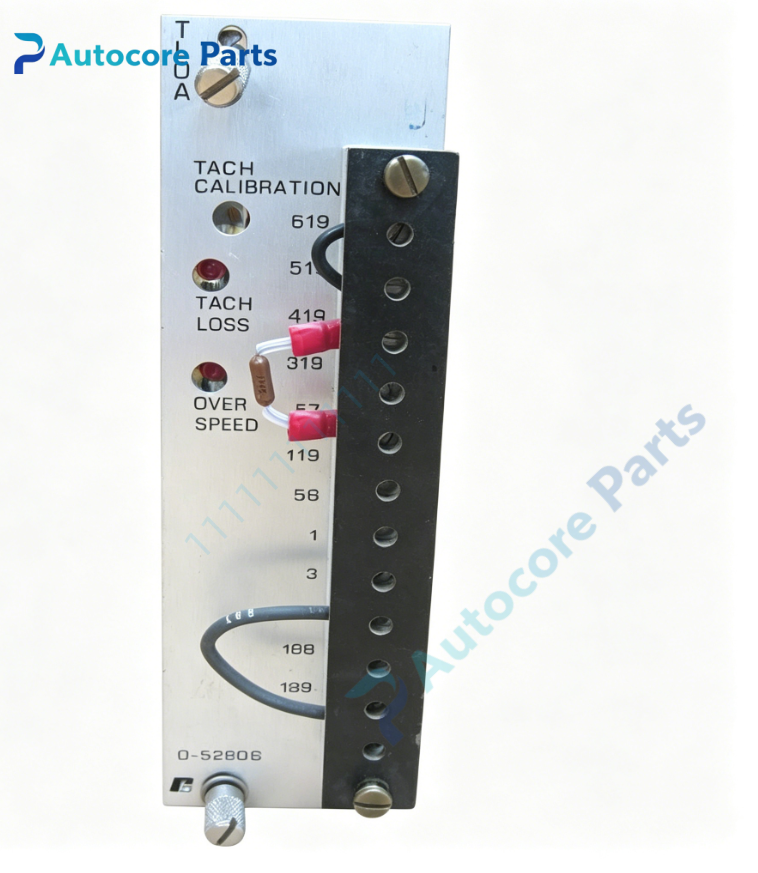

Function0-52806 is dedicated resolver feedback PCB for RELIANCE MaxPak Plus DC drive system. Generates AC excitation signal to motor resolver,receives resolver modulated sine/cosine feedback signals. Completes signal demodulation,filtering and conversion,outputs analog speed and position feedback signal to armature regulator board. Front panel multi-turn potentiometers for amplitude and zero offset calibration. Dual LED indicators display board power and valid resolver signal status. Built-in input surge protection circuit to prevent damage from resolver cable noise spike.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52806 resolver feedback board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal feedback signal transmission. Separate resolver field wiring from high power pulse and analog control cables. Power on system,calibrate resolver gain and offset via potentiometers. Verify speed and position feedback synchronize with motor rotation.

InterfaceBackplane edge connector,resolver excitation output,resolver sine/cosine signal input,processed speed & position feedback output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-52806 rack mount resolver feedback board. Resolver excitation generation and sine/cosine signal demodulation circuit. Front panel adjustable potentiometers for signal calibration. Surge protection for resolver signal channel. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for power and resolver signal state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticMotor speed unstable:resolver signal attenuation or potentiometer drift; No speed feedback:resolver wiring open or demodulation circuit damage; LED no light:board auxiliary power loss; Position signal noise:lack of shielding or ground interference; Intermittent speed fluctuation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52806 is resolver feedback board. It supplies excitation and demodulates resolver signals from spindle motor,provides speed and position feedback for Reliance MaxPak Plus legacy spindle DC drive closed-loop regulation,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
