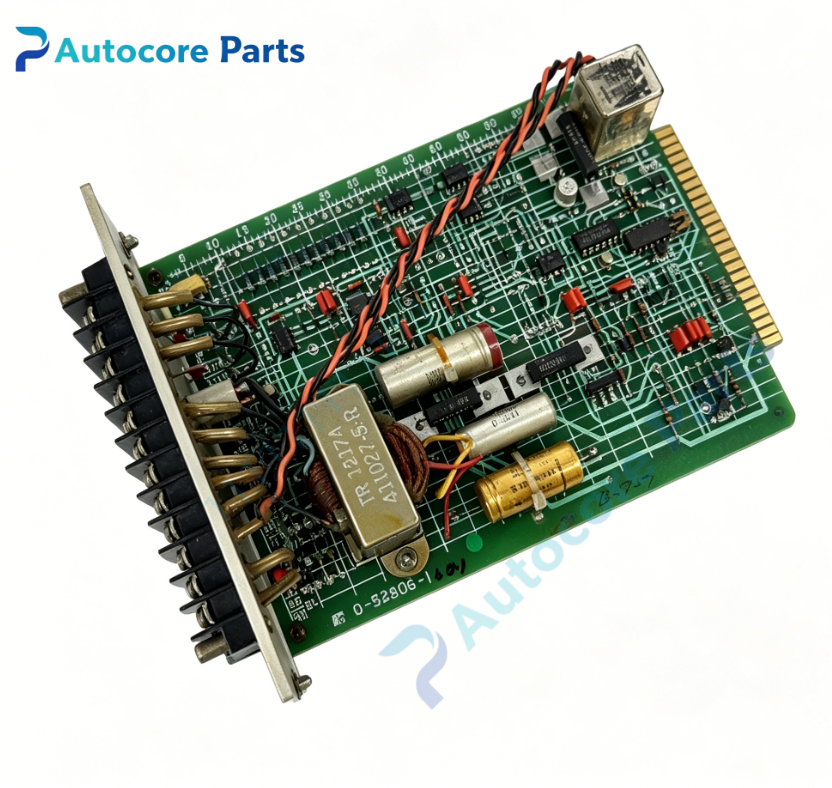

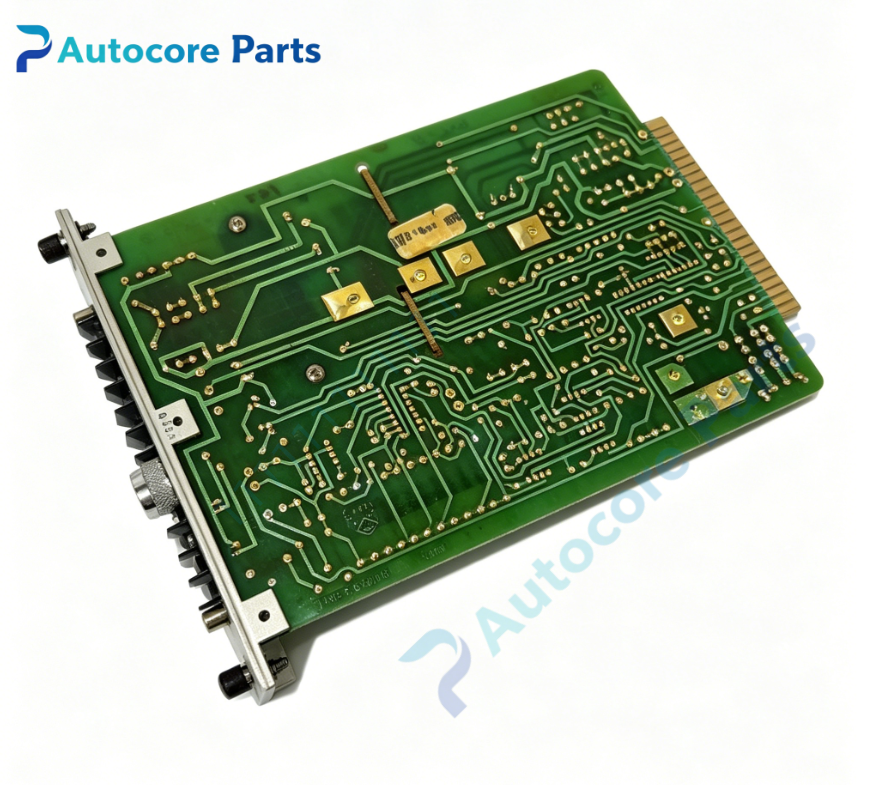

RELIANCE 0-52806-1 Resolver Feedback Board

Technical SpecificationsModel:0-52806-1 Brand:RELIANCE Product type:Resolver Feedback Board Weight:0.53kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-52806-1 is RELIANCE rack plug-in resolver feedback board. It is revised version of 0-52806,designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with ARM armature regulator board. It outputs resolver excitation signal and demodulates sine/cosine resolver signals to provide high-precision motor speed and position feedback for closed-loop control. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-52806-1 is dedicated resolver feedback PCB for RELIANCE MaxPak Plus DC drive system. Generates stable AC excitation signal to motor resolver,receives modulated sine and cosine feedback signals. It completes high-precision signal demodulation,low-noise filtering and signal conversion,outputs analog speed and position feedback signal to armature regulator board. Front panel multi-turn potentiometers for amplitude gain and zero offset calibration. Dual LED indicators display board power status and valid resolver signal. Enhanced input surge and noise suppression circuit compared with 0-52806 base version,improving stability for long resolver cable application.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52806-1 resolver feedback board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal feedback signal transmission. Separate resolver field wiring from high power pulse and analog control cables. Power on system,calibrate resolver gain and offset via potentiometers. Verify speed and position feedback synchronize with motor rotation.

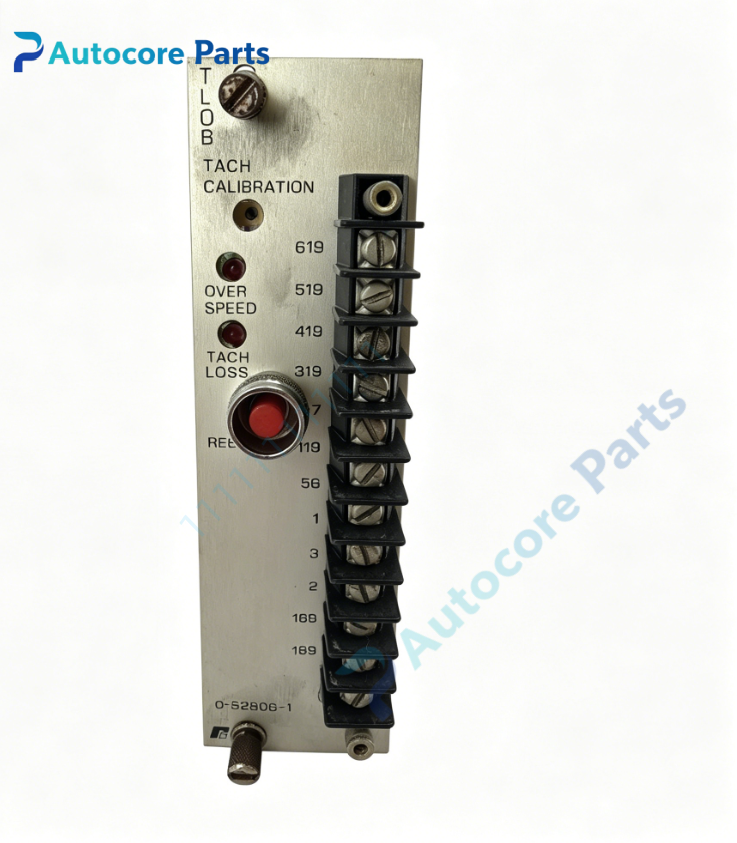

InterfaceBackplane edge connector,resolver excitation output,resolver sine/cosine signal input,processed speed & position feedback output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-52806-1 rack mount resolver feedback board. Resolver excitation generation and sine/cosine signal demodulation circuit. Front panel adjustable potentiometers for signal calibration. Reinforced surge and noise protection for resolver signal channel. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for power and resolver signal state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticMotor speed unstable:resolver signal attenuation or potentiometer drift; No speed feedback:resolver wiring open or demodulation circuit damage; LED no light:board auxiliary power loss; Position signal noise:lack of shielding or ground interference; Intermittent speed fluctuation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52806-1 is resolver feedback board. It supplies excitation and demodulates resolver signals from spindle motor,provides high-precision speed and position feedback for Reliance MaxPak Plus legacy spindle DC drive closed-loop regulation,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
