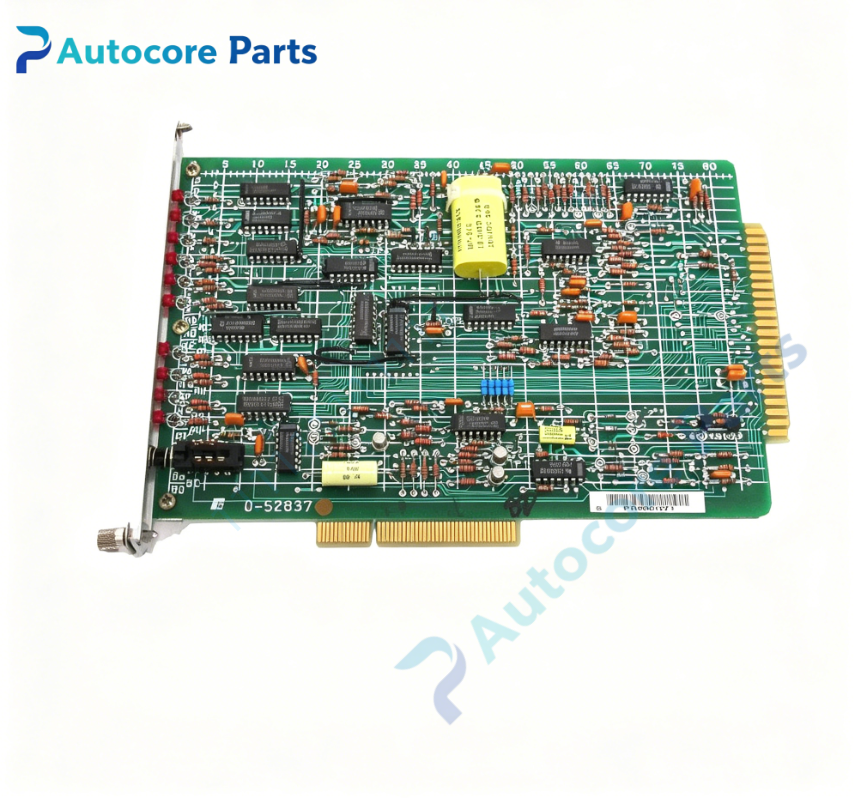

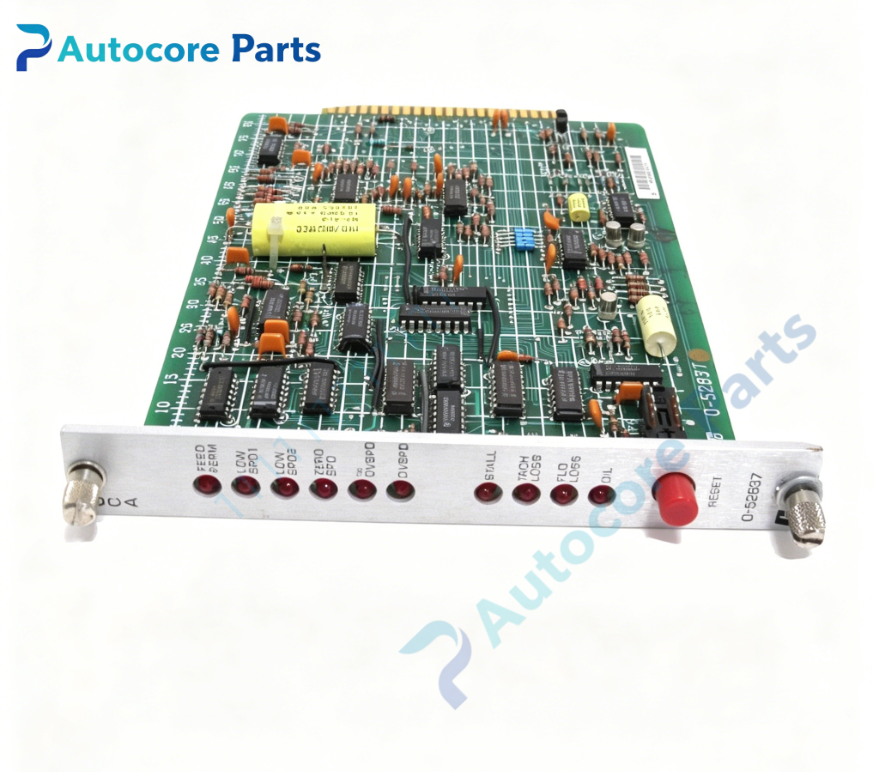

RELIANCE 0-52837 Gate Drive Board

Technical SpecificationsModel:0-52837 Brand:RELIANCE Product type:Gate Drive Board Weight:0.54kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-52837 is RELIANCE rack plug-in gate drive board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with ARM armature regulator board and current feedback board. It generates synchronized gate trigger pulses to control power thyristor rectifier stack for armature voltage regulation. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-52837 is dedicated gate drive PCB for RELIANCE MaxPak Plus DC drive system. It receives firing angle reference signal from main regulator,combines line voltage zero-crossing detection to generate isolated SCR gate trigger pulses. It synchronizes pulse phase with AC input mains and adjusts firing angle to change rectified DC armature voltage. Onboard multi-turn potentiometers for pulse amplitude and phase offset calibration. Dual LED indicators display board power and pulse active status. Built-in pulse isolation and overvoltage suppression circuit to protect low-voltage control circuit from high power side interference.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52837 gate drive board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for firing reference and synchronization signal transmission. Strictly separate high voltage thyristor wiring and low-voltage control signal wiring. Power on system,calibrate pulse phase and amplitude via potentiometers. Verify SCR firing sequence and armature voltage adjustment respond correctly.

InterfaceBackplane edge connector,firing angle reference input,AC sync signal input,isolated gate pulse output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-52837 rack mount gate drive board. Zero-cross sync detection and isolated SCR gate pulse generation circuit. Onboard adjustable potentiometers for pulse and phase trimming. High voltage isolation between control side and power side. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for power and pulse output state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticArmature voltage unstable:pulse phase drift or sync signal loss; No DC output:gate pulse missing or thyristor trigger circuit damage; LED no light:board auxiliary power loss; Voltage waveform distortion:AC sync signal interference; Intermittent drive fluctuation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52837 is gate drive board. It generates synchronized isolated SCR gate trigger pulses for Reliance MaxPak Plus legacy spindle DC drive,controls thyristor rectifier to adjust armature voltage,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
