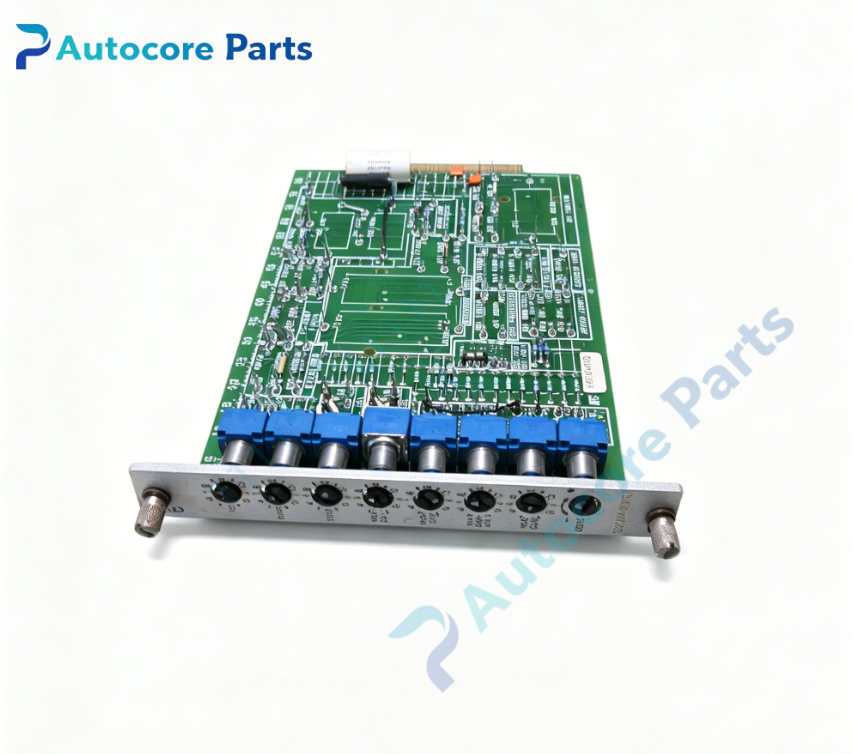

RELIANCE 0-52839 Voltage Feedback Board

Technical SpecificationsModel:0-52839 Brand:RELIANCE Product type:Voltage Feedback Board Weight:0.53kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-52839 is RELIANCE rack plug-in voltage feedback board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with ARM armature regulator board and gate drive board. It samples armature output voltage and feeds back conditioned voltage signal for voltage loop closed-loop control. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

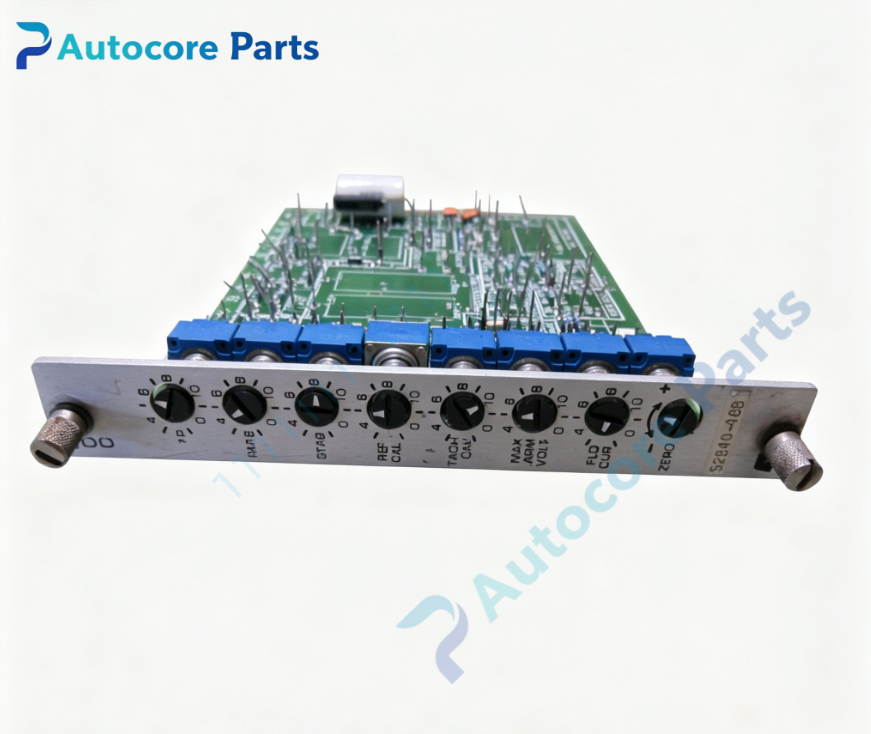

Function0-52839 is dedicated voltage feedback PCB for RELIANCE MaxPak Plus DC drive system. It acquires raw armature voltage signal from SCR power rectifier section,performs isolation,filtering and signal scaling. Output standardized analog voltage feedback signal to armature regulator for voltage closed-loop control and overvoltage protection. Front panel multi-turn potentiometers for voltage gain and zero offset calibration. Dual LED indicators display board power and valid voltage feedback status. Built-in high voltage isolation and surge suppression circuit to protect low voltage control circuit from power side high voltage spike.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52839 voltage feedback board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for voltage feedback signal transmission. Separate high voltage power wiring and low-level signal wiring strictly. Power on system,calibrate voltage scale and zero offset via potentiometers. Verify sampled feedback voltage matches actual armature output voltage.

InterfaceBackplane edge connector,raw armature voltage input,processed voltage feedback output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-52839 rack mount voltage feedback board. Isolated high-precision armature voltage sampling and conditioning circuit. Front panel adjustable potentiometers for voltage range calibration. High voltage isolation and surge protection for sampling channel. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for power and voltage signal state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticDrive armature voltage unstable:voltage signal attenuation or potentiometer drift; No voltage feedback:sampling wiring open or amplifier circuit damage; LED no light:board auxiliary power loss; Voltage reading deviation:poor shielding or ground interference; Intermittent voltage fluctuation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52839 is voltage feedback board. It samples and conditions armature voltage signal,provides accurate voltage feedback for Reliance MaxPak Plus legacy spindle DC drive voltage loop regulation,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
