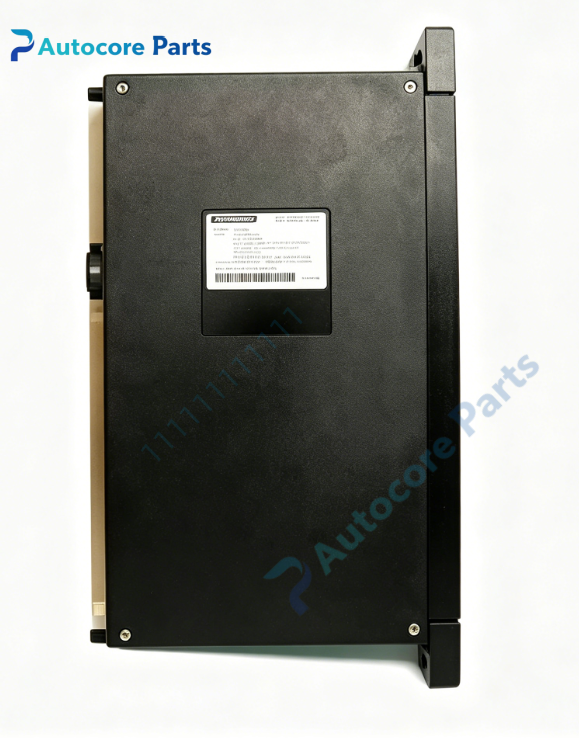

RELIANCE 0-57402 Low Power Digital Output Module

Technical Specifications

Model:0-57402

Brand:RELIANCE

Product type:115V AC/DC Low Power Digital Output Module

Number of channels:16 points

Signal type:AC/DC 115V,50/60Hz

Single channel rated current:1A

Isolation voltage:2500V

Isolation group:4 isolated commons,4 points per group

Weight:0.42kg

Dimension:263mm58mm28mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

0-57402 belongs to RELIANCE AutoMax series low power digital output module.

Installed into AutoMax PLC rack,work with AutoMax CPU and other I/O modules.

Receive control command from AutoMax CPU to drive small solenoid valves and auxiliary relays.

Can coordinate with 57045 UDC drive module,0-57400 input module and 0-57401 output module.

Commonly used for old PLC and drive equipment maintenance and spare replacement.

Function

0-57402 is 16-channel low power AC/DC digital output module for RELIANCE AutoMax PLC.

Convert internal logic signal into 115V AC/DC field low power output signal.

Optocoupler isolation between control backplane and field load circuit.

Control small solenoid valves,indicator lights and auxiliary relays on site.

16 individual LED indicators to show each channel output status.

Four isolated common groups to reduce cross-interference between different load loops.

Built-in overcurrent protection for each channel to avoid module damage caused by load short circuit.

Installation

Power off the whole AutoMax rack and cut main power supply.

Insert 0-57402 module into designated rack slot.

Lock module retaining clips.

Connect backplane bus and field load wiring to module terminal block.

Separate high voltage field cable and low voltage control cable.

Power on system,write output command via AutoMax programming software.

Test each channel and verify LED indication consistency.

Interface

AutoMax backplane edge connector,field wiring terminal block,16 channel status LED indicators.

Feature

RELIANCE 0-57402,AutoMax 115V AC/DC low power output module.

16 isolated output points with 4 groups common terminal.

2500V high isolation protection for surge voltage from field load.

Independent LED for each channel for quick onsite troubleshooting.

Onboard per-channel overcurrent protection for low power loads.

Robust casing design for heavy industrial environment.

Discontinued obsolete module,supply only for old automation system spare replacement.

Suitable for metallurgy,paper-making production line control renovation.

Diagnostic

Channel no output:field load power missing or output circuit damage;

Channel burnout:load short circuit and overcurrent;

Output stuck on:output semiconductor component aging;

LED indicator always off:module backplane communication failure;

Multiple channels abnormal:common group wiring fault.

Product Brief

RELIANCE 0-57402 is AutoMax 16-channel 115V AC/DC low power digital output module.

It receives control command from AutoMax CPU and outputs isolated signal to low-power field loads,widely used as spare part for heavy industry automation system maintenance.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
