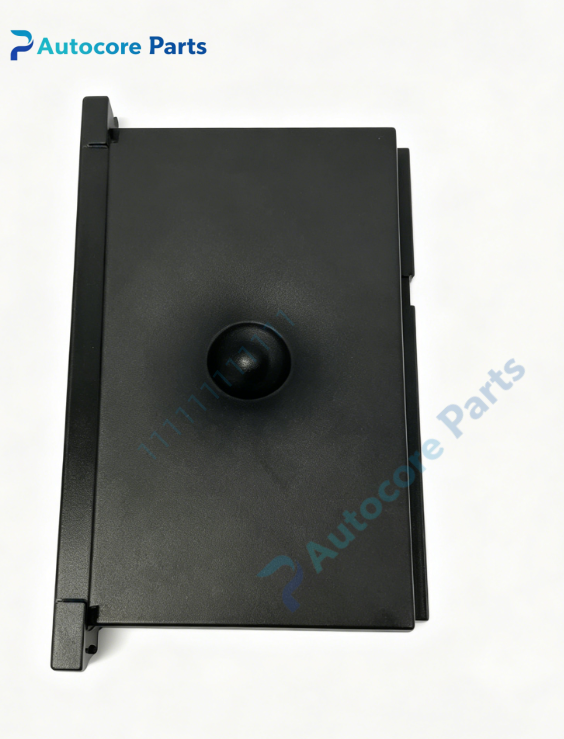

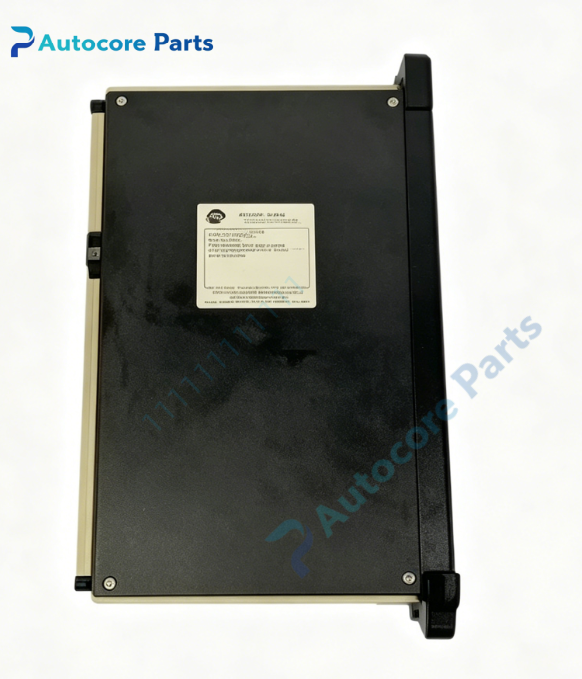

RELIANCE 57405 Drive Analog I/O Module

Technical Specifications

Model:57405

Brand:RELIANCE

Product type:Drive Analog I/O Module

Weight:0.44kg

Dimension:263mm58mm28mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

57405 belongs to RELIANCE AutoMax series drive analog I/O module.

Installed into AutoMax rack,work with AutoMax CPU,57045 UDC drive controller and other I/O modules.

Designed for analog signal interaction between AutoMax PLC and Reliance AC/DC drives.

Match with 0-57400 digital input,0-57401 digital output modules in the same rack.

Commonly used for old PLC and drive equipment maintenance and spare replacement.

Function

57405 is dedicated drive analog I/O module for RELIANCE AutoMax system.

Collect analog feedback signals including motor speed,armature current and DC bus voltage from drive unit.

Output analog speed reference command to drive control board.

RS232 communication port for connection with PMI operator interface panel.

Overspeed calibration LED indicator for motor overspeed detection and adjustment.

Realize isolation conversion of analog signals between PLC system and drive power section.

Installation

Power off the whole AutoMax rack and cut main power supply.

Insert 57405 module into designated rack slot.

Lock module retaining clips.

Connect backplane bus,field analog signal terminal and RS232 PMI cable.

Analog signal cable adopt shielded wire,separate from high voltage power cable.

Power on system,calibrate analog signal range and overspeed threshold.

Test analog command output and feedback signal collection.

Interface

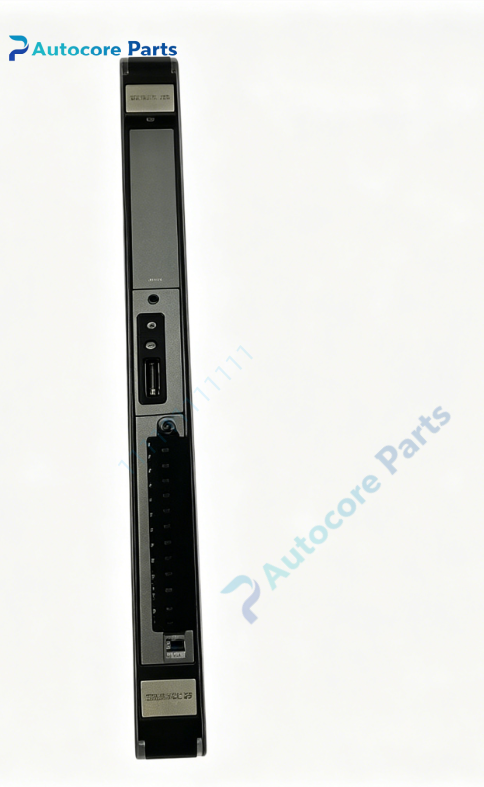

AutoMax backplane edge connector,analog signal terminal strip,RS232 TO PMI port,OVER SPEED CALIBRATION LED indicator.

Feature

RELIANCE 57405,AutoMax drive analog I/O module.

Integrated analog input and analog output channel for drive closed-loop control.

RS232 interface for PMI panel communication and onsite calibration.

Dedicated overspeed calibration indicator for motor protection debugging.

Shielded terminal design to reduce analog signal interference.

Discontinued obsolete module,supply only for old automation system spare replacement.

Suitable for metallurgy,paper-making production line drive system renovation.

Diagnostic

Analog signal drift:shield cable damage or grounding interference;

No speed feedback:signal wiring break or input circuit fault;

Cannot communicate with PMI:RS232 cable fault or port damage;

Overspeed LED abnormal:calibration parameter drift or module hardware failure;

Module no response:backplane poor contact or rack power fault.

Product Brief

RELIANCE 57405 is AutoMax drive analog I/O module.

It collects drive analog feedback signal and transmits analog speed command between AutoMax controller and motor drive,widely used as spare part for heavy industry automation system maintenance.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
