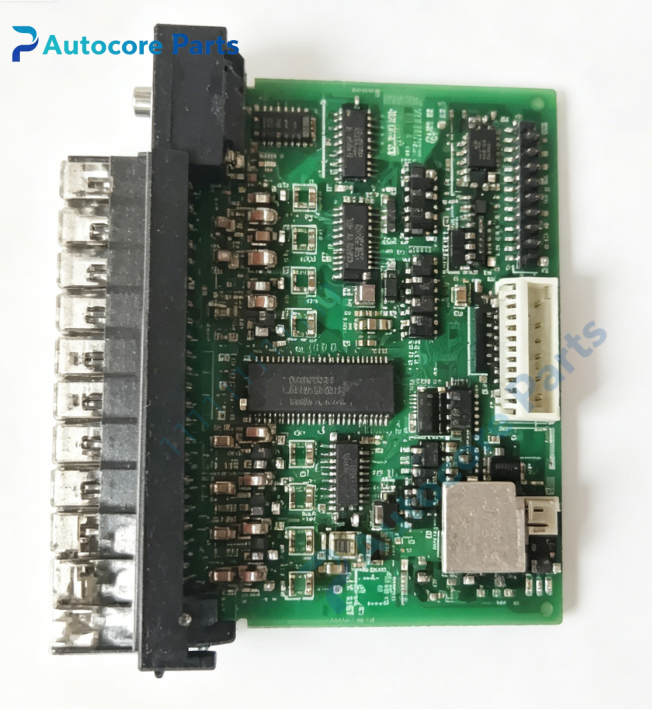

RELIANCE 563052 Auxiliary Power Supply Board

Technical Specifications

Model:563052

Brand:RELIANCE

Product type:Control Auxiliary Power Supply PCB Board

Weight:0.44kg

Dimension:220mm115mm25mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

563052 belongs to RELIANCE CardPak series auxiliary power supply board.

Installed into CardPak DC drive rack,provides working power for 490051 armature control board,490054 field regulator board,518317 interface control board and other plug-in boards.

Output multiple groups of regulated low voltage power for analog regulation and digital logic circuits.

Compatible with AutoMax control system for heavy industry production line.

Commonly used for old DC drive equipment maintenance and spare replacement.

Function

563052 is dedicated auxiliary power supply PCB board for RELIANCE CardPak DC drive system.

Convert AC input voltage into multi-channel stable DC power for all internal control cards.

Built-in overcurrent,overvoltage and short-circuit hardware protection circuit.

Filter circuit reduces power ripple,suppress interference to analog closed-loop circuit.

Detect power abnormality and send fault signal to interface board.

Onboard test points for output voltage measurement during maintenance and commissioning.

Independent fuse protection for each power channel to restrict fault spread.

Installation

Power off the whole CardPak drive rack and cut main power supply.

Insert 563052 board into designated slot of drive rack.

Fasten fixing screws.

Connect backplane edge connector and AC input wiring.

High voltage AC wiring must be separated from low voltage analog signal cable.

Power on system,inspect each channel output voltage.

Test short-circuit protection and power fault alarm function.

Interface

CardPak backplane edge connector,AC power input terminal,multi-channel DC power output port,test measurement points,status and fault LED indicators.

Feature

RELIANCE 563052,CardPak control auxiliary power printed circuit board.

Multi-channel isolated stabilized power output for all regulator boards.

Independent fuse and hardware short-circuit protection for each power rail.

Filter circuit to suppress power ripple and improve drive anti-interference performance.

Multiple test points for convenient onsite voltage inspection.

Standard CardPak plug-in structure,easy replacement together with other regulator boards.

Discontinued obsolete board,supply only for old automation drive system spare replacement.

Suitable for metallurgy,paper-making heavy-duty DC drive production line renovation.

Diagnostic

No power output:input fuse blown or AC power missing;

Voltage ripple excessive:filter capacitor aging;

Power channel overvoltage:regulator component damage;

Power fault alarm:overload or short circuit on backplane;

LED no lighting:AC input power loss.

Product Brief

RELIANCE 563052 is CardPak auxiliary power supply board.

It provides multi-channel stabilized DC control power for each CardPak regulator board of Reliance DC drive,widely used as spare part for heavy industry DC drive system maintenance.

Disclaimer

All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
