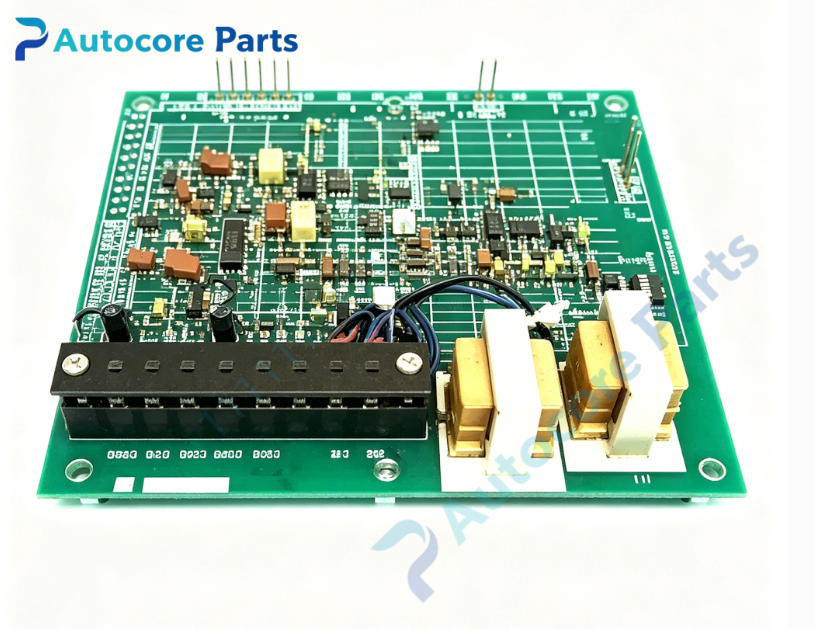

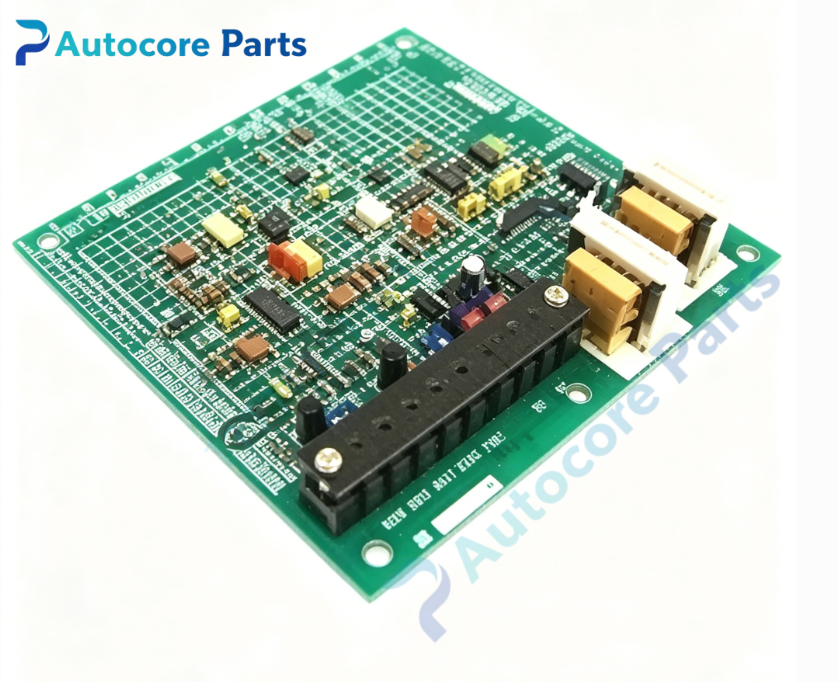

RELIANCE 563131 Interface Logic Board

Technical Specifications

Model:563131

Brand:RELIANCE

Product type:Signal Logic Interface PCB Board

Weight:0.40kg

Dimension:220mm115mm25mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

563131 belongs to RELIANCE CardPak series interface logic board.

Installed into CardPak DC drive rack,works with 490051 armature control board,490054 field regulator board,563052 auxiliary power supply board and other plug-in boards.

Process internal interlock signals and external enable,emergency stop signals of DC drive.

Compatible with AutoMax control system for heavy industry production line.

Commonly used for old DC drive equipment maintenance and spare replacement.

Function

563131 is dedicated interface logic PCB board for RELIANCE CardPak DC drive system.

Collect multi-channel fault signals from each regulator board and realize fault latch storage.

Handle hardware safety interlock chain,block SCR trigger pulse once fault or emergency stop occurs.

Realize signal conversion between internal analog regulator circuit and external control system.

Dry contact fault output for remote alarm transmission.

Onboard test points for logic signal inspection and interlock debugging.

Fault reset function for manual release after troubleshooting.

Installation

Power off the whole CardPak drive rack and cut main power supply.

Insert 563131 board into designated slot of drive rack.

Fasten fixing screws.

Connect backplane edge connector and external interlock wiring.

Separate low voltage logic cable and high voltage power cable.

Power on system,check interlock chain and fault latch function.

Test emergency stop protection and remote fault output.

Interface

CardPak backplane edge connector,external interlock terminal,fault relay output port,test measurement points,status and fault LED indicators.

Feature

RELIANCE 563131,CardPak signal logic interface printed circuit board.

Integrated fault collection and latch function for drive multi-protection signal.

Hardware interlock circuit for safe shut down of SCR power section.

Isolation design to prevent external signal interference affecting regulator loop.

Multiple test points for convenient maintenance and onsite inspection.

Standard CardPak plug-in structure,easy replacement together with other regulator boards.

Discontinued obsolete board,supply only for old automation drive system spare replacement.

Suitable for metallurgy,paper-making heavy-duty DC drive production line renovation.

Diagnostic

Drive cannot enable:external interlock open or logic circuit fault;

Fault cannot reset:fault condition still exists or latch circuit damaged;

No remote fault output:relay aging or terminal loose;

False fault alarm:signal interference or component aging;

LED no lighting:board auxiliary power supply failure.

Product Brief

RELIANCE 563131 is CardPak interface logic board.

It collects drive fault signals and executes hardware interlock control for Reliance CardPak DC drive,widely used as spare part for heavy industry DC drive system maintenance.

Disclaimer

All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
