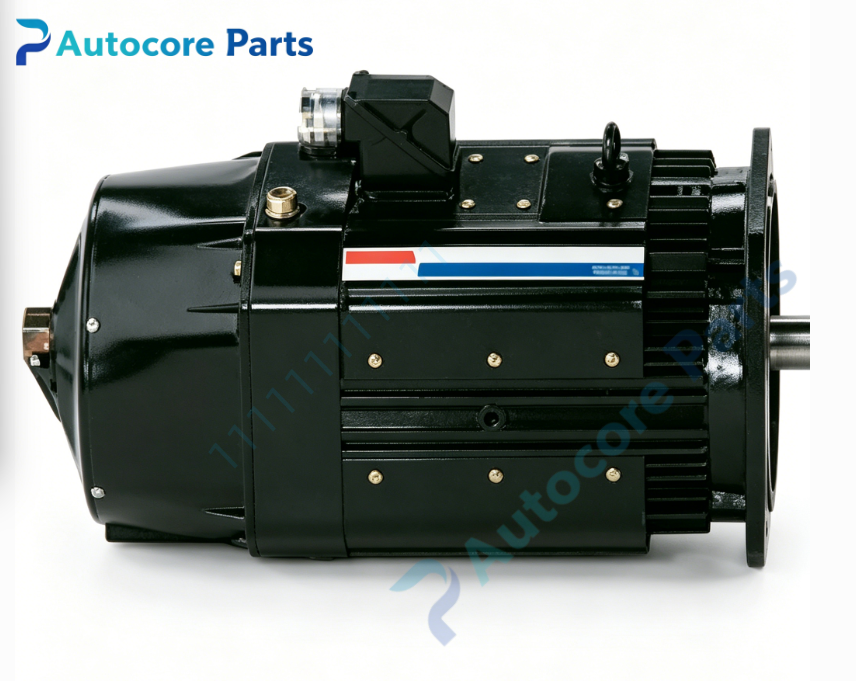

Rexroth 1AD160L-B302-4A111-S02 Spare Part

Technical Specifications

Model:1AD160L-B302-4A111-S02

Brand:Rexroth

Product type:Indramat 1AD series three-phase asynchronous spindle motor

Rated torque:93 Nm

Max torque:400 Nm

Rated voltage:127V 3-phase

Rated current:58 A

Cooling method:Axial blower cooling

Insulation class:F class

Feedback:Encoder feedback

Control function:High precision speed & torque control,winding temperature monitoring,rotor position feedback

Communication:Encoder differential signal transmission to servo drive

Mounting:Flange mounting

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:95kg

Dimension:430mm290mm290mm

Certification:CE

Protection class:IP54

System compatibility

1AD160L-B302-4A111-S02 belongs to Rexroth Indramat 1AD spindle motor family,matched with IndraDrive series spindle servo drives.Widely applied in CNC machining center,milling machine and heavy-duty automation production lines.This is a discontinued legacy spare part for equipment maintenance replacement.

Function

1AD160L-B302-4A111-S02 is Rexroth Indramat high power asynchronous AC spindle motor.It converts three-phase electric energy into rotary mechanical power for machine tool spindle cutting processing.The encoder feeds back real-time rotor speed and position signal to servo drive for closed-loop speed control.The built-in temperature sensor monitors winding temperature continuously for overload protection.It adopts forced axial blower cooling structure to ensure stable continuous high-power operation.It acts as high power motion execution component for CNC machine tool spindle system.

Installation

Mount 1AD160L-B302-4A111-S02 on machine spindle flange and tighten mounting bolts.Align coupling and check concentricity.Connect three-phase power cable and encoder cable according to wiring drawing.Motor blower wiring should be connected separately.Check winding insulation resistance before power-on commissioning.

Interface

‑3-phase motor power connector

‑Encoder feedback connector

‑Motor temperature sensor terminal

‑Cooling fan power port

Circuit feature

Stable squirrel-cage rotor design,wide constant power speed range,shock and vibration resistant,stable performance under heavy cutting workshop environment.

Feature

1AD160L-B302-4A111-S02 is obsolete Rexroth spare part.Typical faults:bearing wear and abnormal noise,encoder damage,winding insulation aging,fan fault.Inspect winding,encoder and cooling system before replacement.This spindle motor must match corresponding IndraDrive servo drive,direct substitution without inspection is not recommended.

Diagnostic

When encoder damage,winding overheat or cooling fan failure occurs,the servo system will trigger alarm and stop spindle operation.

Built‑in function:High power spindle rotary output,real-time speed feedback,winding temperature monitoring,used as Rexroth Indramat CNC spindle motion system spare replacement.

Product Brief

1AD160L-B302-4A111-S02 is Rexroth Indramat old 1AD high power asynchronous spindle motor for heavy-duty CNC machining center.Confirm drive compatibility,mechanical mounting and cooling configuration before ordering.ESD protection required during handling and installation.
