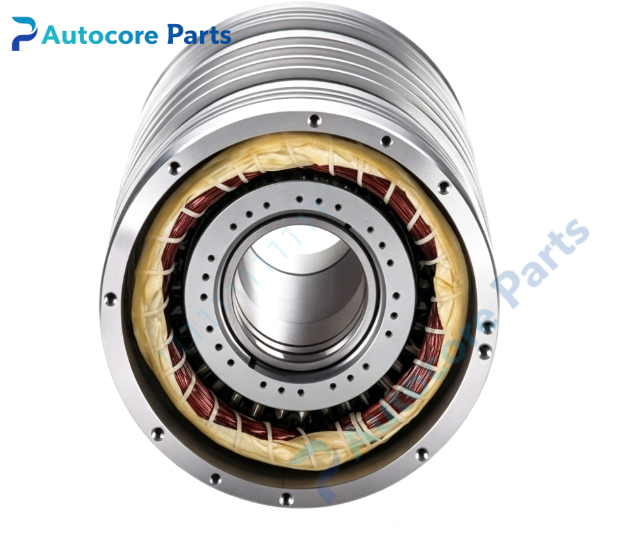

Rexroth  1MR200E-A060 Spare Part

Technical Specifications

Model:1MR200E-A060

Brand:Rexroth

Product type:Indramat 1MR series permanent magnet synchronous servo motor

Rated power:27kW

Rated speed:6000rpm

Rated voltage:400V 3-phase

Cooling method:Forced air cooling

Feedback:High resolution encoder

Control function:Precise speed & position control,winding temperature monitoring,rotor position feedback

Communication:Differential encoder signal to servo drive

Mounting:Flange mounting

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:72kg

Dimension:390mm260mm260mm

Certification:CE

Protection class:IP65

System compatibility

1MR200E-A060 belongs to Rexroth Indramat 1MR servo motor family,matched with IndraDrive series servo drives.Widely applied in CNC machining centers,milling machines and high-speed automation production lines.This is a discontinued legacy spare part for equipment maintenance replacement.

Function

1MR200E-A060 is Rexroth Indramat high-performance permanent magnet synchronous servo motor.It converts three-phase electrical energy into rotary mechanical motion for high-speed machine tool axis driving.The high-resolution encoder feeds back real-time rotor position and speed to servo drive for closed-loop control.The built-in temperature sensor continuously monitors winding temperature to realize overload protection.It adopts forced air cooling design to guarantee stable continuous operation under high load.It acts as high-precision motion execution component for CNC automation equipment.

Installation

Mount 1MR200E-A060 to machine flange and fasten mounting bolts.Align coupling and check concentricity.Connect 3-phase power cable and encoder cable according to wiring drawing.Connect cooling fan power separately.Test winding insulation resistance before power-on commissioning.

Interface

‑3-phase motor power connector

‑Encoder feedback connector

‑Motor temperature sensor terminal

‑Cooling fan power port

Circuit feature

High energy density permanent magnet rotor,low torque ripple,anti-vibration structure,stable performance for high-speed machining workshop environment.

Feature

1MR200E-A060 is obsolete Rexroth spare part.Typical faults:bearing abnormal noise,encoder failure,winding insulation aging,cooling fan fault.Inspect winding,encoder and cooling assembly before replacement.This servo motor must match the corresponding IndraDrive servo drive,direct substitution without inspection is not recommended.

Diagnostic

When encoder damage,winding overheat or cooling fan malfunction occurs,the servo system will trigger alarm and stop axis movement.

Built‑in function:High-speed rotary motion output,real-time position feedback,winding temperature monitoring,used as Rexroth Indramat CNC motion system spare replacement.

Product Brief

1MR200E-A060 is Rexroth Indramat old 1MR high speed synchronous servo motor for CNC machining equipment.Confirm drive compatibility and mechanical mounting dimensions before ordering.ESD protection required during handling and installation.
