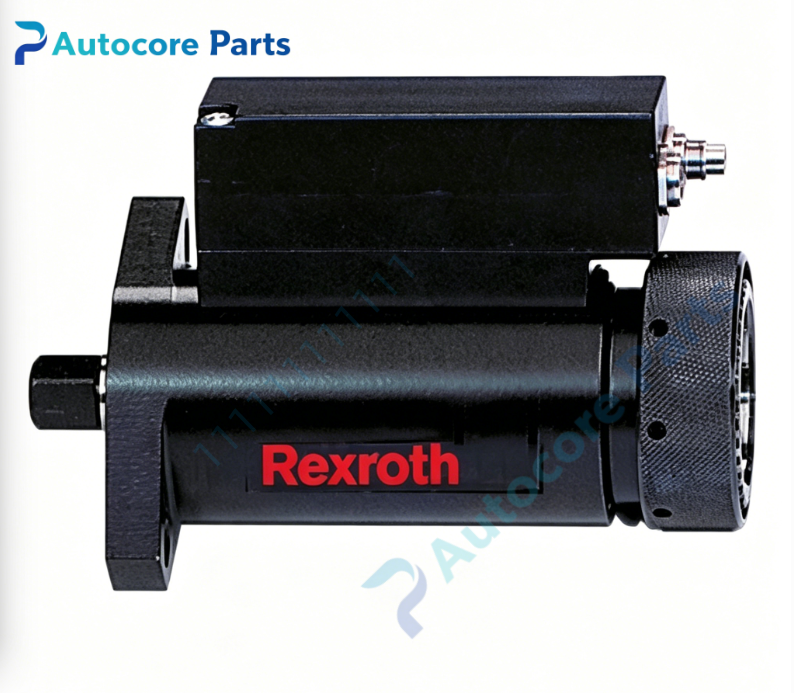

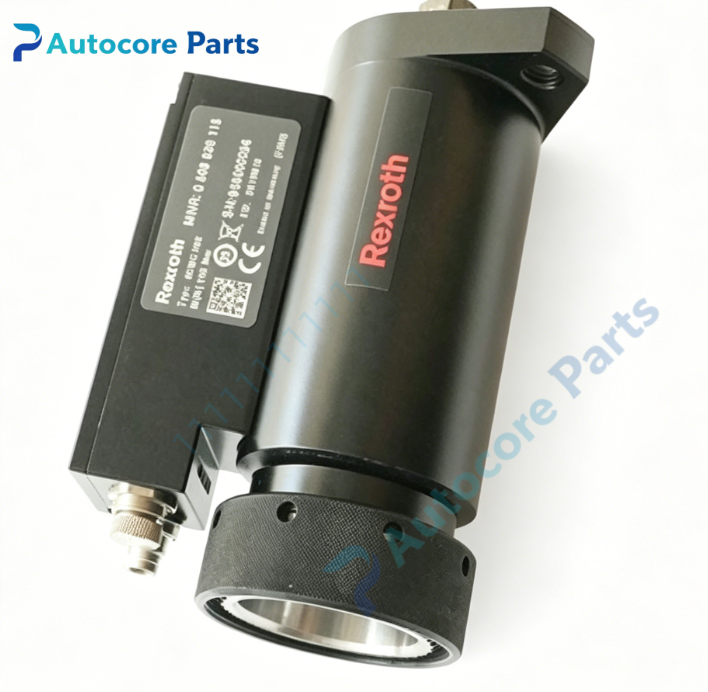

Rexroth 608820115 Spare Part

Technical Specifications

Model:608820115

Brand:Rexroth

Product type:Torque & angle measurement transducer

Power supply:±15 Vdc

Control function:Torque and angle real-time measurement,signal conversion,hardware self-diagnosis,fault indication

Communication:Analog / internal system bus

Mounting:Direct mount on tightening spindle

Operating temperature:0~55℃

Storage temperature:-40~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.55kg

Dimension:114mm76mm38mm

Certification:CE,UL

Protection class:IP20

System compatibility

608820115 belongs to Rexroth servo tightening system family,matched with tightening spindle and controller modules.Widely applied in automobile assembly tightening workstations.This is a discontinued legacy spare part for equipment maintenance replacement.

Function

608820115 serves as Rexroth high precision torque and angle transducer.It accurately measures real-time torque and rotation angle values during bolt tightening process.It converts mechanical deformation signal into standard electrical signal and transmits feedback data to the tightening controller.It guarantees tightening precision and records assembly data for quality traceability.It monitors sensor status continuously and sends fault alarms to upper control unit.It acts as core measurement component for Rexroth tightening workstation.

Installation

Install 608820115 on the designated spindle mounting surface and lock fasteners.Complete power and signal wiring according to wiring drawing.Check ±15V power polarity and equipment grounding before power-on.

Interface

‑±15Vdc power input terminal

‑Torque & angle signal output terminal block

‑Internal bus connector

‑Status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,sensor signal isolation design,strong anti-interference performance for workshop industrial environment.

Feature

608820115 is obsolete Rexroth series spare part.Typical failures include torque reading drift,signal loss,measurement deviation,connector pin oxidation.Check sensor element and connector pins before replacement.This transducer must match corresponding Rexroth tightening spindle and controller,direct substitution without inspection is not recommended.

Diagnostic

When signal attenuation,overload or internal hardware fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:High precision torque-angle measurement,signal conversion,status monitoring,self-diagnosis and fault alarm,used as Rexroth servo tightening system spare replacement.

Product Brief

608820115 is Rexroth old torque angle measurement transducer for tightening assembly workstation.Confirm compatibility with corresponding tightening spindle and controller before ordering.ESD protection required during handling and installation.
