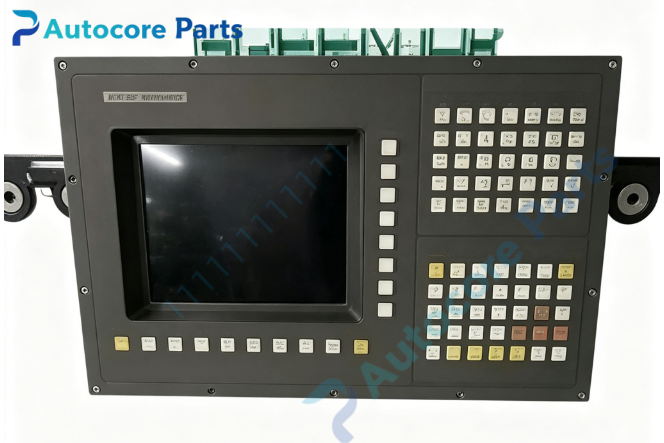

Rexroth BTV01.2CA-08N-50B-AB-NN-FW CNC Visualization Terminal Spare Part

Technical Specifications

Model:BTV01.2CA-08N-50B-AB-NN-FW

Brand:Rexroth

Product type:CNC visualization HMI terminal

Input voltage:24V DC

Display:8 inch industrial display

Keyboard:Integrated NC membrane keyboard

Weight:7.5kg

Mounting:Panel cutout mounting

Front panel protection:IP65

Rear housing protection:IP20

Operating temperature:+5~+45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max operation altitude:1500m

Certification:CE

System compatibility

BTV01.2CA-08N-50B-AB-NN-FW belongs to Rexroth Indramat BTV01 visualization terminal family,matching Indramat System200 CNC and motion control systems,widely used for CNC machine tools and processing equipment operator interface.This is a legacy spare part for industrial equipment maintenance replacement.

Function

BTV01.2CA-08N-50B-AB-NN-FW is an integrated CNC machine visualization and operation terminal.It combines industrial display and NC membrane keyboard for CNC program editing,manual axis jog,operation mode selection,parameter configuration,feed and spindle override adjustment,real-time machine status and alarm message display.It communicates with the main CNC controller via dedicated bus to transmit operation commands and feedback data.The 50B version is upgraded hardware variant compared with 50A.

Installation

Install BTV01.2CA-08N-50B-AB-NN-FW on cabinet panel cutout.Tighten mounting fixtures.Connect 24V DC power and dedicated communication cable according to wiring diagram.Check cable shielding and connector tightness before power-on commissioning.

Interface

‑24V DC power input terminal

‑CNC dedicated bus communication port

‑Keyboard signal internal terminal

‑Shield grounding terminal

Circuit feature

Integrated display drive and keyboard scanning circuit,robust front panel coating,stable serial bus communication,strong anti-interference,suitable for harsh workshop environment.

Feature

BTV01.2CA-08N-50B-AB-NN-FW is obsolete Rexroth spare part.Typical faults:screen backlight failure,membrane key aging,communication port damage,internal power circuit failure.Inspect display and communication link before replacement.This visualization terminal must match original Indramat CNC system firmware,direct substitution without inspection is not recommended.

Diagnostic

When terminal fails,HMI screen blank,keyboard input no response,system triggers HMI communication timeout alarm.

Built‑in function:CNC program editing,manual axis jogging,parameter setting,machine status & alarm display,production operation control,used as Rexroth Indramat CNC system spare replacement.

Product Brief

BTV01.2CA-08N-50B-AB-NN-FW is Rexroth Indramat BTV01 series 8-inch CNC visualization HMI terminal with integrated NC keyboard,hardware variant 50B.Verify CNC system firmware and communication protocol before ordering.ESD protection required during handling and installation.
