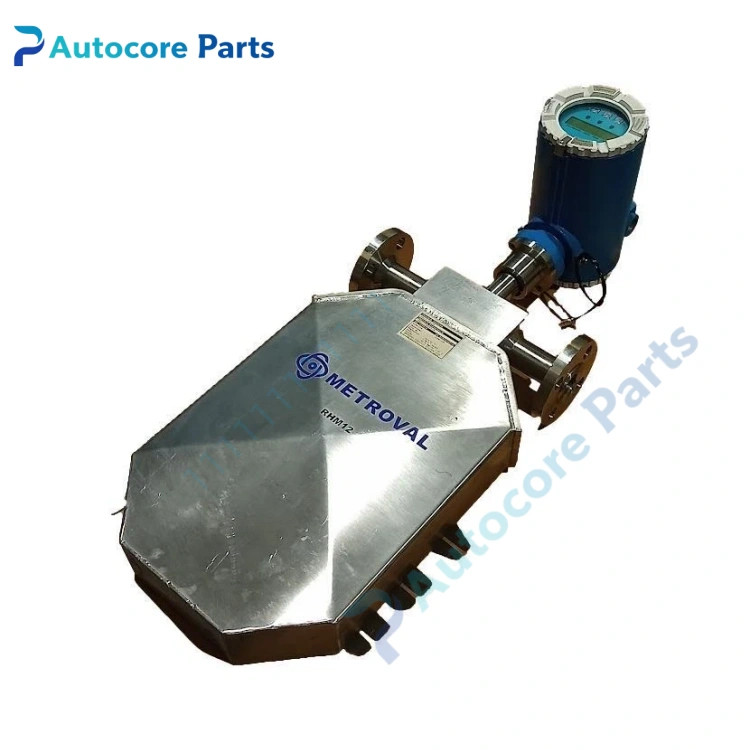

Rheonik RHM12 Coriolis Mass Flowmeter Sensor

Feature & Principle

It adopts patented Omega torsion swing tube Coriolis measurement principle. The vibrating measuring tube generates Coriolis force with flowing medium, the sensor detects phase difference to calculate mass flow. It is less affected by pressure fluctuation, no moving parts, low maintenance. It can measure liquid, gas and slurry simultaneously, supports batch control. It can be equipped with ATEX, custody transfer certification, suitable for high pressure and hazardous area.

Specifications

Model: RHM12 Brand: Rheonik Measuring range: 1 ~ 100 kg/min Measurement accuracy: ±0.1% of reading Repeatability: ≤0.05% Max working pressure: 290 bar Process connection: DN25 / 1" Wetted material: 316L stainless steel, alloy optional Matching transmitter: RHE07, RHE12, RHE27 Explosion-proof: ATEX / IECEx optional Application: Oil & gas, chemical batching, CNG, process custody transfer Certification: CE, PTB, NMI

Components & Diagnostics

Omega measuring tube, drive coil, signal pickup coil, temperature sensor, sensor housing, junction box. Common faults: measuring tube scaling, coil aging, signal cable damage, zero drift, vibration interference.

Product Brief

RHM12 Coriolis mass flow sensor, Rheonik high precision flow spare widely used for petrochemical and natural gas metering cabinet maintenance and replacement.
