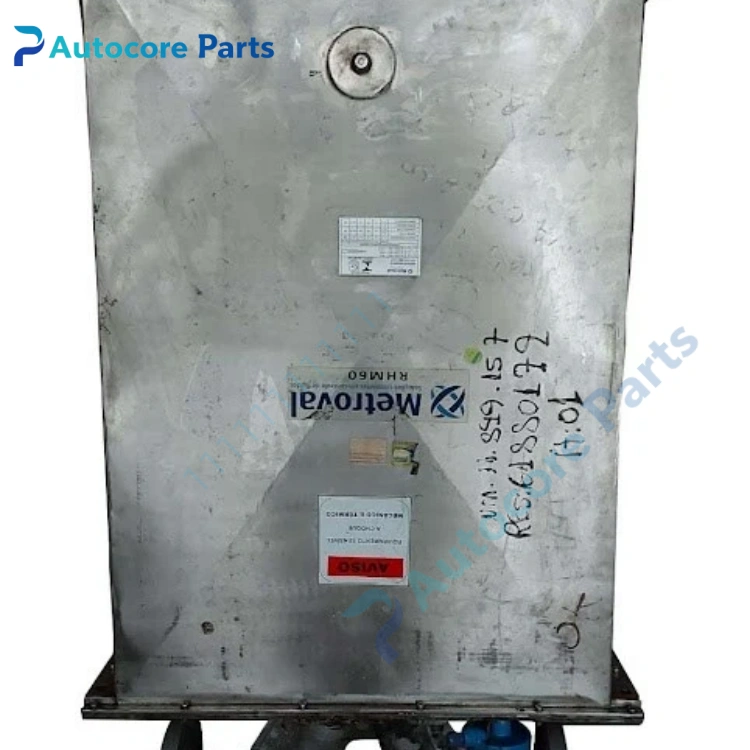

Rheonik RHM60 Coriolis Mass Flow Sensor

Feature & Principle

It is a large-caliber Coriolis mass flow sensor adopting Omega tube structure. The measuring tube vibrates at resonant frequency, and the Coriolis effect generates phase difference signal proportional to mass flow. It can directly measure mass flow, density and temperature without temperature and pressure compensation. 40bar pressure grade is suitable for conventional process pipelines, stable zero point, strong anti-interference, suitable for oil, chemical, bunker fuel metering.

Specifications

Model: RHM60 Brand: Rheonik Caliber: DN100 (4 inch) Nominal pressure: 40 bar Flow range: 30 ~ 3000 kg/min Measurement accuracy: 0.1% of reading Repeatability: 0.05% Medium temperature: -196℃ ~ +350℃ Wetted material: 316Ti, Alloy C22, Super Duplex Matching transmitter: RHE40 / RHE49 Application: Chemical, petroleum, bunkering, process fluid metering Certification: CE

Components & Diagnostics

Omega measuring tube assembly, vibration excitation coil, signal pickup coil, junction box, process flange. Common faults: signal loss, zero drift, measuring tube scaling, coil damage, seal leakage.

Product Brief

RHM60 40Bar Coriolis mass flow sensor, Rheonik precision flow spare widely used for chemical, oil transfer and bunker metering system maintenance and replacement.
