Rosemount 2051CD2A22A1AS2B4E2M5P1Q4 Pressure Transmitter

Feature & Principle

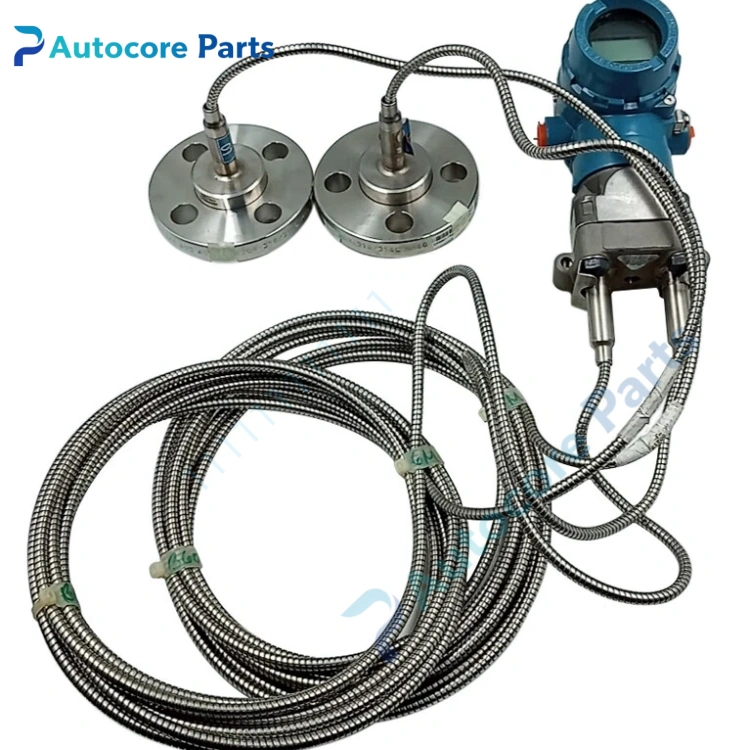

It is Emerson Rosemount 2051CD coplanar differential pressure transmitter. It adopts capacitive sensing principle, converts differential pressure change into standard electrical signal. It can be used for differential pressure, liquid level and orifice flow measurement. It supports 4-20mA with HART protocol, remote configuration and self-diagnosis. Compact coplanar design, easy to match 3/5-way manifold or remote seal assembly. Stable performance, anti-interference, widely applied in petrochemical, power and chemical process control.

Specifications

Model: 2051CD2A22A1AS2B4E2M5P1Q4 Brand: Rosemount (Emerson) Series: 2051C Coplanar Type: Differential pressure transmitter Output: 4-20mA, HART Accuracy: Up to 0.065% span Wetted part: 316L stainless steel Communication: HART Power supply: Two-wire 10.5~42.4VDC Ingress protection: IP66/IP67 Certification: ATEX, IECEx, SIL2 optional Application: Tank level, orifice flow, filter differential pressure monitoring

Components & Diagnostics

Sensor capsule, electronic mainboard, LCD display module, coplanar flange, wiring terminal cavity, seal gasket. Common faults: zero drift, signal no change, HART communication offline, diaphragm damage, medium blockage.

Product Brief

2051CD2A22A1AS2B4E2M5P1Q4 differential pressure transmitter, Rosemount 2051 coplanar type DP measuring spare widely used for process instrument overhaul and replacement.
