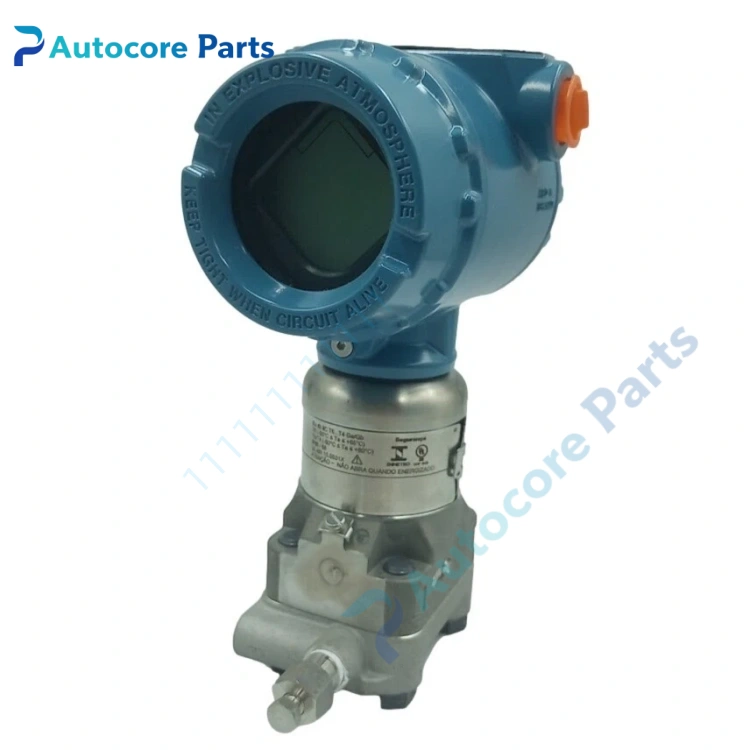

Rosemount 4088B1P1 Multivariable Transmitter

Feature & Principle

It is a multivariable transmitter of Rosemount 4088 series. It integrates three sensing elements to detect differential pressure, static line pressure and process temperature simultaneously. The internal microprocessor compensates pressure and temperature and computes mass flow in real time. It supports Modbus RS485 digital communication to transmit calculated flow data to DCS or flow computer. This compact all-in-one design reduces installation points and improves measurement accuracy for energy and process metering.

Specifications

Model: 4088B1P1 Brand: Rosemount (Emerson) Measured variables: DP, static pressure, process temperature Calculated output: Mass flow Communication: Modbus RS485 Supply voltage: 5.4–30 VDC Process connection: Remote or direct mount optional Housing: Stainless steel / aluminum alloy Protection: IP66 Application: Natural gas, steam, liquid metering in oil & gas and chemical plants Certification: CE, IECEx, ATEX

Components & Diagnostics

DP sensor cell, pressure sensor, RTD temperature sensor, main electronic board, display, signal terminal, process diaphragm. Common faults: diaphragm blockage, temperature sensor drift, communication loss, zero shift, display failure.

Product Brief

4088B1P1 multivariable transmitter, Rosemount integrated mass flow measurement spare widely used for process metering overhaul and replacement.
