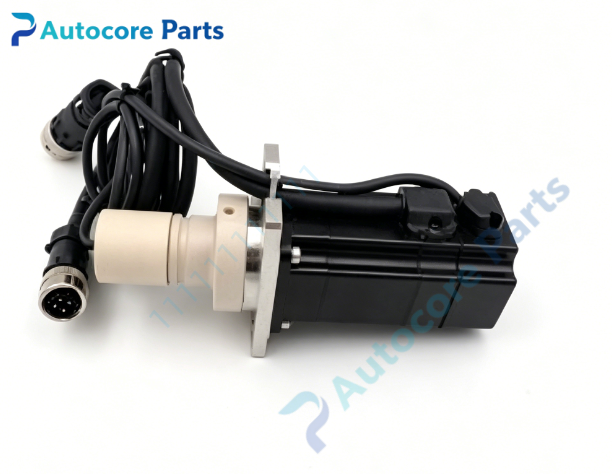

Sanyo Denki P50B05020DXSAJ AC Servo Motor

Module Feature

Sanyo Denki P50B05020DXSAJ is an AC brushless servo motor with low inertia rotor design. Rated power 200W, built-in high resolution rotary encoder for closed-loop position control. Compact frame size, high torque density, stable operation at low speed. Equipped with holding brake option, suitable for vertical axis application to prevent load falling when power off. High rigidity bearing structure, strong resistance to vibration. Widely used for positioning motion control in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The servo driver supplies three-phase AC power to motor windings. The built-in encoder feeds back rotor angle and speed signal back to servo drive. Drive adjusts output current in real time to achieve precise speed, torque and position control. The electromagnetic brake locks the shaft when power is cut off to maintain load position.

Onboard components:Servo motor stator & rotor assembly, built-in rotary encoder, electromagnetic holding brake, high precision bearing, power connector, encoder signal connector, motor housing

LED indicatorsNo LED indicators on motor body; status LEDs are located on matched servo drive unit.

Hardware self-diagnosis

Visual inspection of shaft, connector and cable insulation; insulation resistance test; motor winding continuity test; encoder signal check; brake release test.

Programming software

Sanyo Denki servo setup software for motor parameter tuning, auto gain adjustment, alarm log reading.

Electrical & Process Parameters

Rated power:200W Rated voltage:AC200V class Rotor type:Low inertia Feedback:Built-in incremental encoder Brake:Electromagnetic holding brake Cooling:Natural air cooling

Mechanical & Structure

Mounting:Flange mount Protection class:IP65 (shaft and connector part) Shaft:Standard keyway shaft

Environmental

Operating temperature:0℃ ~ +40℃ Ambient humidity:5~95% non-condensing Status:Sanyo Denki low inertia AC servo motor

System compatibility

Compatible with matched Sanyo Denki servo drive series, used for linear or rotary axis positioning control of automation equipment.

Function

P50B05020DXSAJ AC servo motor manufactured by Sanyo Denki. It provides precise rotary motion and position control. Winding short circuit, encoder damage or brake failure will cause axis alarm and motion stop. It is motion control actuator for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off servo drive system. Align motor shaft with load coupling, fix motor flange securely. Wire power cable and encoder cable. Confirm brake wiring, set servo parameters, perform jog test and positioning test before formal operation.

Interface3-phase power terminal connector, encoder signal connector, brake control connector on housing of P50B05020DXSAJ.

Diagnostic

Motor no rotation:Power wiring error, enable signal missing or brake not released. Positioning deviation:Encoder fault, coupling loose or gain parameter mismatch. Overheat alarm:Overload, insufficient cooling or bearing damage. Abnormal noise:Bearing wear or misalignment between motor and load.

Product Brief

P50B05020DXSAJ Sanyo Denki 200W low inertia AC servo motor with holding brake,built-in incremental encoder,flange mount,for semiconductor wet bench and chemical delivery automation motion positioning control.
