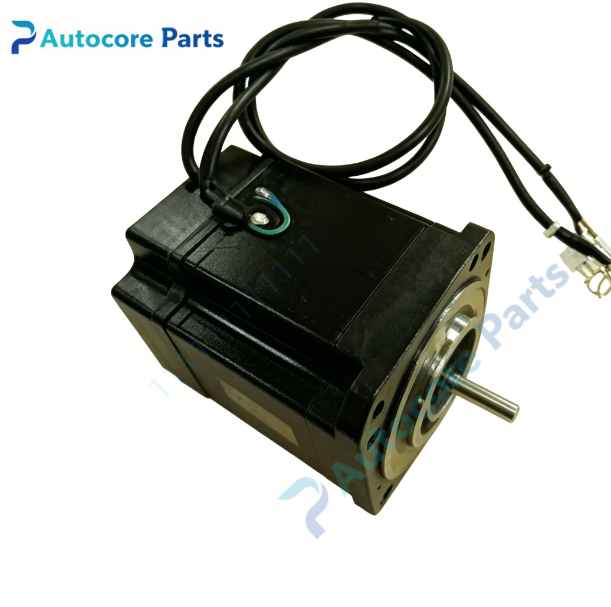

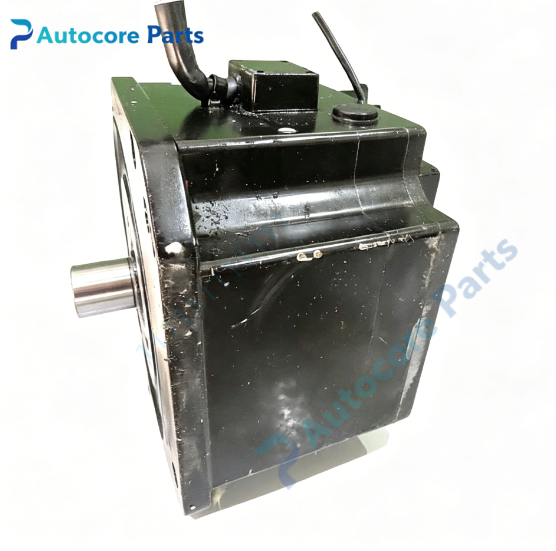

Sanyo Denki P80B22450RBP3S AC Servo Motor

Module Feature

Sanyo Denki P80B22450RBP3S belongs to SANMOTION P series high performance AC brushless servo motor. Rated power 4.5kW, AC200V power class, high inertia rotor design. Built-in high resolution rotary encoder for closed-loop position feedback, integrated 24V electromagnetic power-off holding brake. Large square flange structure, high torque density, strong overload capacity and excellent dynamic response. Heavy duty double ball bearing assembly, outstanding vibration resistance and stable low-speed running performance. Built-in power-off holding brake, suitable for heavy load vertical axis applications to prevent load falling once power cut off. Widely used for heavy load precision motion axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle

The matched servo amplifier outputs three-phase AC power to motor windings. The built-in encoder continuously feeds rotor angle and speed signal back to servo drive. The drive performs real-time closed-loop calculation and adjusts output current to realize precise torque, speed and position control. When power supply is interrupted, the 24V power-off holding brake will immediately lock motor shaft to hold vertical load securely.

Onboard components

Motor stator & rotor assembly,built-in high resolution rotary encoder,24V electromagnetic holding brake,heavy duty double ball bearing set,aluminum alloy housing,3-phase power connector,encoder feedback signal connector,brake wiring terminal

LED indicators

No LED indicators on motor body; status LEDs are located on matched servo drive unit.

Hardware self-diagnosis

Visual inspection of shaft surface,connector pins and cable insulation; winding continuity and insulation resistance test; encoder signal waveform inspection; brake pull-in and release function test; manual rotation smoothness test.

Programming software

Sanyo Denki SANMOTION servo setup software for motor parameter auto recognition, servo gain tuning, brake timing configuration and alarm log reading.

Electrical & Process Parameters

Rated power:4.5kW Rated voltage:AC200V Rotor type:High inertia Feedback:Built-in high resolution rotary encoder Brake:Built-in 24V power-off holding brake Cooling:Natural air cooling

Mechanical & Structure

Mounting:Square flange mount Protection class:IP65 (shaft and connector area) Shaft:Keyway shaft

Environmental

Operating temperature:0℃ ~ +40℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION P series AC servo motor

System compatibility

Compatible with Sanyo Denki PY / PQM series high power servo drives for automation heavy load vertical axis positioning.

Function

P80B22450RBP3S servo motor manufactured by Sanyo Denki. It provides high precision rotary motion and positioning control for heavy vertical load axis. Winding damage,encoder failure or loose coupling will trigger servo alarm and stop movement. The integrated holding brake ensures load safety during power loss. It is high power motion actuator for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off servo drive system completely. Align motor shaft and load coupling,fasten flange mounting bolts securely. Wire motor power cable, encoder feedback cable and brake control cable. Configure servo parameters via SANMOTION software, test brake action, perform jog test and positioning verification before formal operation.

Interface3-phase power connector, encoder feedback connector, brake signal connector on housing of P80B22450RBP3S.

Diagnostic

Motor cannot rotate:Power wiring error, servo enable signal missing or brake not released.

Positioning inaccuracy:Encoder fault, loose coupling or servo gain mismatch.

Overheat alarm:Overloaded load, poor ventilation or bearing wear.

Brake failure:Brake wiring abnormal, coil burnout, cannot lock or release normally.

Abnormal running noise:Bearing damage or shaft misalignment between motor and load.

Product Brief

P80B22450RBP3S Sanyo Denki SANMOTION P series 4.5kW AC servo motor,AC200V,built-in high resolution rotary encoder and 24V power-off holding brake,square flange mount,for semiconductor wet bench and chemical delivery heavy load precision vertical axis motion control.
