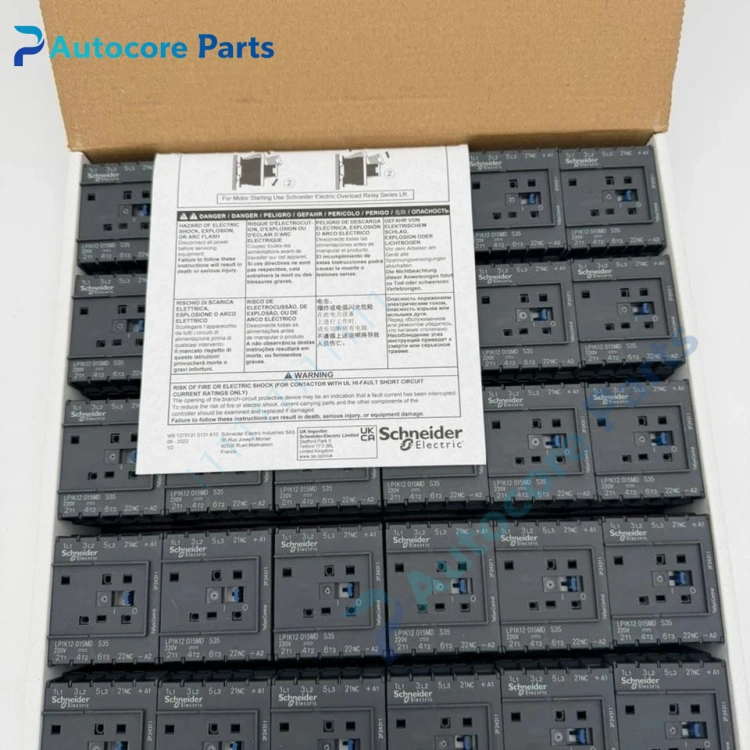

Schneider LP1K12015MDS35 TeSys K Mini Contactor Unit

Feature & Principle

The DC coil generates magnetic force to close the main contacts for switching three-phase load circuit. Auxiliary contact provides feedback signal for interlock and safety logic of elevator control system.

Specifications

Model: LP1K12015MDS35 Brand: Schneider Electric Pole: 3P Rated current AC-3: 12A Coil voltage: DC220V Mounting: DIN rail mount Certification: CE, RoHS

Components & Diagnostics

DC coil, main contact assembly, arc extinguishing chamber, auxiliary contact, plastic housing. Common faults: coil burnout, contact ablation, sticking contact, unstable pull-in.

Product Brief

LP1K12015MDS35 miniature contactor, elevator control spare widely used for Kone elevator cabinet maintenance.
