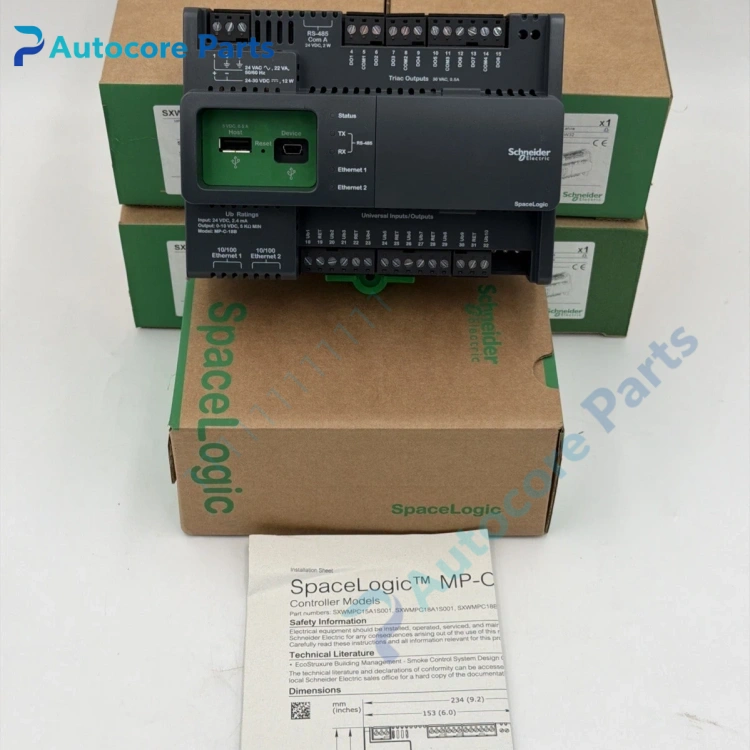

Schneider SXWMPC18B1S001 MP-C-18B-SMK Smoke Controller

Feature & Principle

It is a dedicated programmable smoke control controller, adopts BACnet/IP communication. It receives fire alarm signals, executes pre-programmed smoke exhaust and air supply interlock logic, controls fans and dampers, feeds back equipment status to the building management host, meets smoke control regulation requirements.

Specifications

Model: SXWMPC18B1S001 Brand: Schneider Series: SpaceLogic MP-C-SMK Protocol: BACnet/IP Power: 24VAC/DC Mounting: DIN rail Protection: IP20 Power consumption: 22VA Certification: CE, UL

Components & Diagnostics

Main control chip, Ethernet communication circuit, I/O terminal circuit, status LED indicator, program storage chip. Common faults: network offline, logic not triggered, output channel no action, configuration loss, power startup failure.

Product Brief

SXWMPC18B1S001 smoke controller, Schneider BMS spare widely used for commercial building, shopping mall and underground garage smoke exhaust control cabinet.
