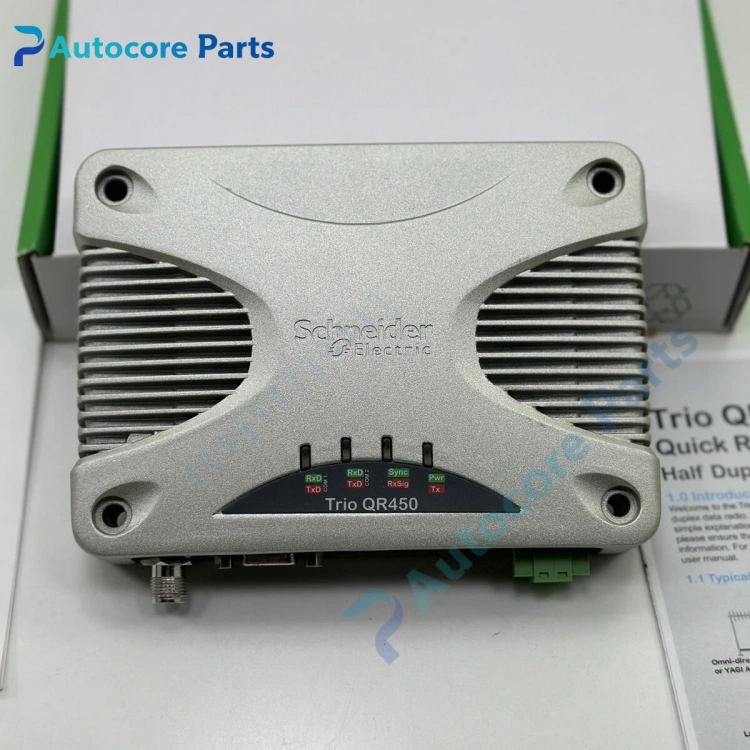

Schneider TBURQR4LH-F00N1L00 QR4 Wireless Radio Ethernet Modem Unit

Feature & Principle

This industrial radio modem converts Ethernet data into RF signals for point-to-point or point-to-multipoint wireless transmission. It supports transparent data transmission for Modbus and other automation protocols, provides stable communication for remote I/O, meters and substation equipment without wired fiber or cable.

Specifications

Model: TBURQR4LH-F00N1L00 Brand: Schneider Electric Series: QR4 Frequency band: 400 ~ 450 MHz Transmit power: 10W duplex Bandwidth channel: 12.5kHz / 25kHz Data rate: 8 ~ 56 kbps Interface: Ethernet Power supply: 12-24VDC Mounting: DIN rail or panel mount Protection: IP30 Certification: CE

Components & Diagnostics

RF power amplifier, baseband processing board, Ethernet circuit, antenna connector, status LED indicators. Common faults: antenna mismatch, weak RF signal, Ethernet link loss, power supply fluctuation.

Product Brief

TBURQR4LH-F00N1L00 radio modem, Schneider wireless communication spare widely used for water treatment, oil pipeline and distribution network remote SCADA system.
