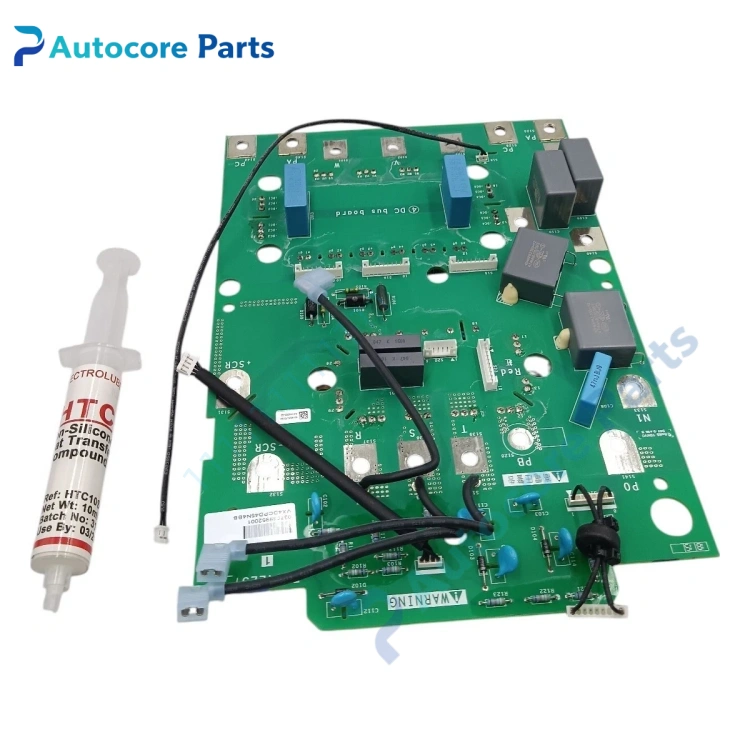

Schneider VX4DCPD45N4 DC Bus Power Board

Feature & Principle

It is Schneider Altivar series inverter dedicated DC bus power board. It adopts SCR+IGBT hybrid power topology, completes rectification and DC bus energy buffering, provides stable DC voltage for the post-stage inversion unit. It integrates power semiconductor devices, absorption circuit and temperature detection, with built-in overvoltage, overcurrent and overtemperature protection. This model is discontinued, mainly used for maintenance and replacement of old 45kW ATV series frequency converters.

Specifications

Model: VX4DCPD45N4 Brand: Schneider Rated power: 45kW DC bus voltage: 400V Power device: SCR + IGBT hybrid module Application: Altivar series 400V class inverter Mounting: Install on inverter heat sink Certification: CE

Components & Diagnostics

SCR rectifier, IGBT chip, absorption capacitor, temperature sensor, power terminal, status LED. Common faults: power device breakdown, capacitor bulging and aging, overtemperature alarm, terminal overheating.

Product Brief

VX4DCPD45N4 DC bus power board, Schneider Altivar inverter obsolete power spare widely used for drive cabinet overhaul and replacement.
