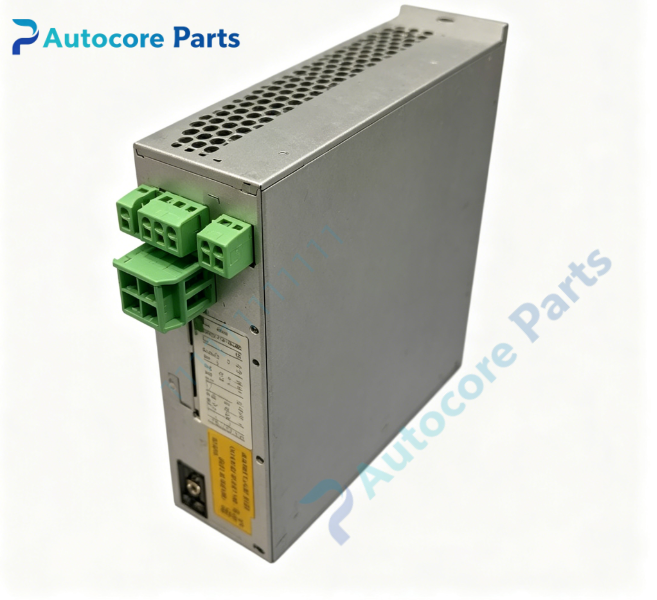

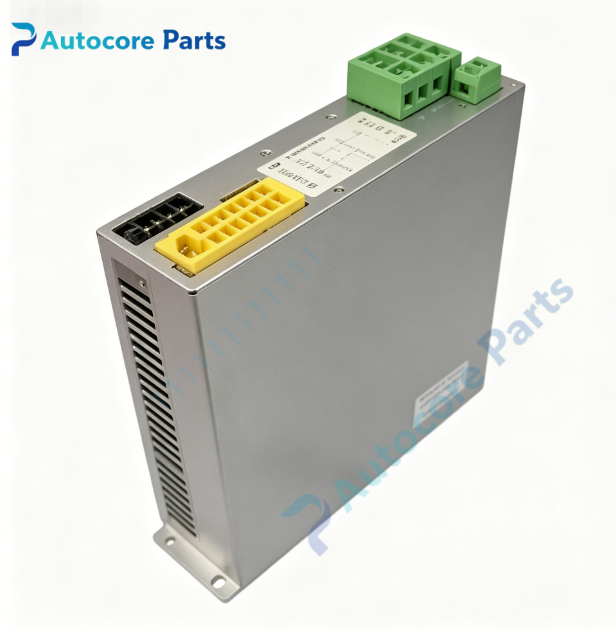

SEW BPS10-200-20-40-P-710 MOVIDRIVE BPS10 Power Supply Unit

Technical SpecificationsModel:BPS10-200-20-40-P-710 Brand:SEW Product type:MOVIDRIVE BPS10 Cabinet DC Power Supply Unit Weight:3.0kg Dimension:225mm105mm320mm Rated input voltage:380~500VAC,3 phase,50/60Hz Rated output DC bus:540~810VDC Rated power:20kW Protection class:IP20 Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityBPS10-200-20-40-P-710 is SEW MOVIDRIVE BPS10 series shared DC bus power supply. It works together with MOVIDRIVE MD60A / MDX61B servo inverters in multi-axis servo systems. Widely used in packaging machine, material handling and conveyor equipment, for maintenance and spare replacement of legacy SEW multi-axis drive systems.

FunctionThis power supply module converts three-phase AC input into stable DC bus voltage for multiple servo inverters. It handles energy supply and regenerative power feedback for multi-axis servo applications. It monitors DC bus voltage, input current and internal temperature, providing overvoltage, undervoltage, overcurrent and overtemperature protection. It communicates with connected servo inverters, stores fault records and operating history. Terminal block for power wiring, LED status indicators on front panel.

InstallationPower off the AC main power supply before installation. Mount BPS10-200-20-40-P-710 vertically inside control cabinet on metal backplate with fixing screws. Keep sufficient top and bottom clearance for air cooling. Separate high-power power cables and low-voltage control wiring. Complete wiring according to terminal definition. Power on the unit, match parameters with connected servo axes and test system operation.

Interface3-phase AC power input terminal, DC bus output terminal, safety STO terminal, fault relay output, communication port, shield grounding terminal, LED status indicators.

FeatureSEW BPS10-200-20-40-P-710 IP20 shared bus power supply. Centralized DC power supply for multi-axis servo system. Integrated multi-level protection. Support regenerative energy handling. Simple cabinet mounting, easy system commissioning. Discontinued legacy spare part, only for MOVIDRIVE multi-axis system maintenance replacement. Suitable for packaging machinery, logistics conveyor and automation production lines.

DiagnosticNo DC bus output: check 3-phase input and fuse; System reports undervoltage: loose power terminal or input phase loss; Overtemperature alarm: insufficient cabinet cooling or dust accumulation; Communication failure: wiring error between power supply and servo inverters.

Product BriefSEW BPS10-200-20-40-P-710 is MOVIDRIVE BPS10 20kW shared DC bus power supply unit, used to supply DC power for multi-axis MOVIDRIVE servo drives in industrial automation equipment.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
