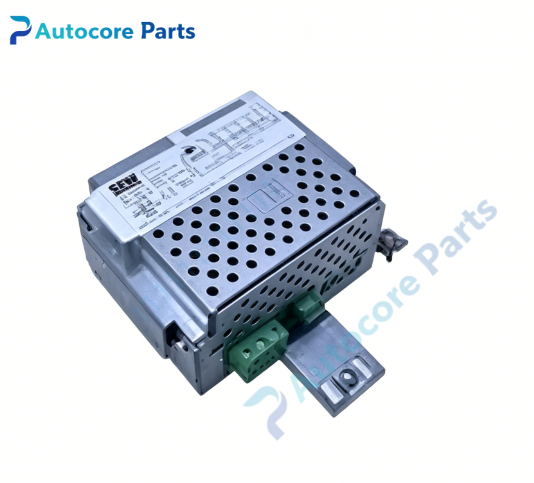

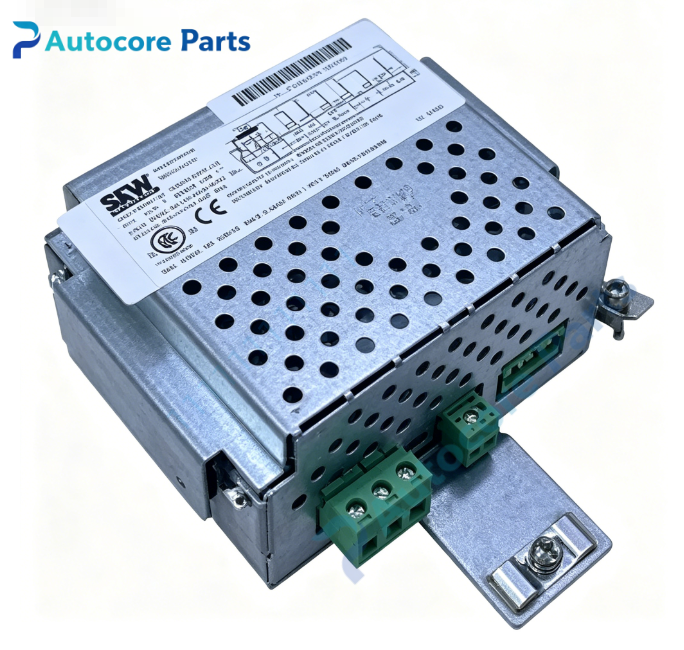

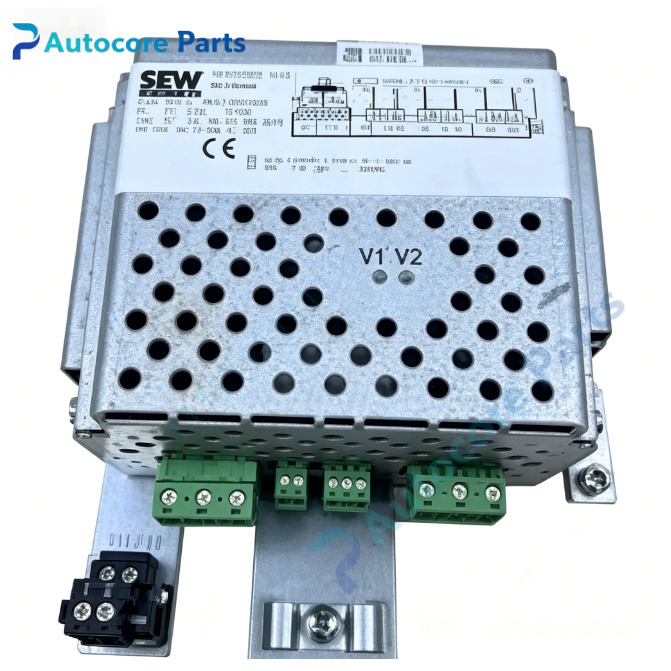

SEW BST0.7S-400V Safety Brake Control Module

Technical SpecificationsModel:BST0.7S-400V(Full part number:BST0.7S-400V-00) Brand:SEW Product type:Functional Safety Brake Control Module Weight:0.35kg Dimension:90mm70mm35mm Rated brake coil voltage:AC 400V Max brake coil power:120W Safety level:EN ISO13849-1 Category3, PL d Protection class:IP20 Operating temperature:-15℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityBST0.7S-400V is SEW BST series safety brake module. Compatible with MOVIDRIVE MD60A, MDX61B and MOVITRAC B series inverters and servo drives. Matched with SEW BE/BM series electromagnetic brake. Widely used for lifting,conveyor and packaging machinery safety brake control,legacy equipment maintenance and spare replacement.

FunctionThis safety brake module performs safe energy cut-off for motor electromagnetic brake coil. It can work together with STO safe torque off signal of SEW drives to realize safe brake holding function. It monitors brake circuit status and provides fault feedback signal. It converts input control signal to drive brake coil, with internal fault detection for short circuit and open circuit of brake wiring. Terminal block for wiring, LED status indicators on front panel.

InstallationPower off the power supply before installation. Mount BST0.7S-400V on DIN rail inside control cabinet. Separate high power brake wiring and low voltage safety control wiring. Complete wiring according to terminal definition. Match safety logic with drive STO function, test brake action and safety feedback signal after power on.

Interface24V DC safety control input, AC400V brake coil output, fault relay feedback terminal, STO signal interlock port, shield grounding terminal, LED status indicators.

FeatureSEW BST0.7S-400V IP20 safety brake module, DIN rail mounting. Functional safety certification PLd Cat.3. Interlock with drive STO safety function. Built-in brake cable fault detection. Compact size, simple installation. Discontinued legacy spare part, only for SEW drive system maintenance replacement. Suitable for lifting equipment,logistics conveyor and packaging automation machinery.

DiagnosticBrake cannot release: check AC400V output and brake coil; Safety fault alarm: wiring open/short or module internal failure; No fault feedback: loose relay terminal; Module no response: 24V safety supply missing.

Product BriefSEW BST0.7S-400V is BST series functional safety brake control module for AC400V SEW electromagnetic brake, cooperating with MOVIDRIVE / MOVITRAC drives to realize safe brake control for industrial machinery.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
