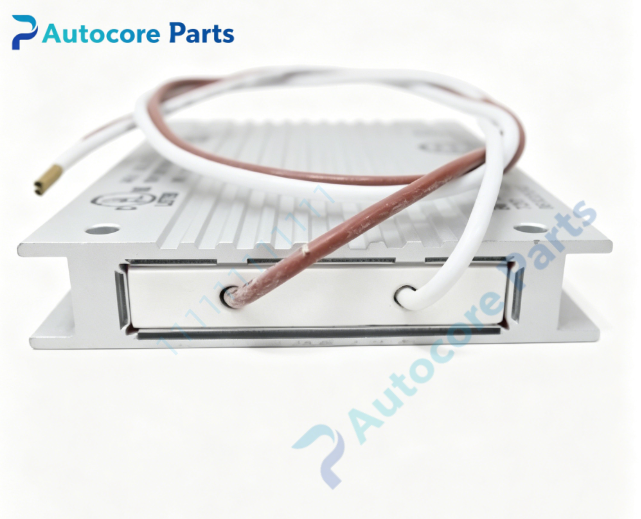

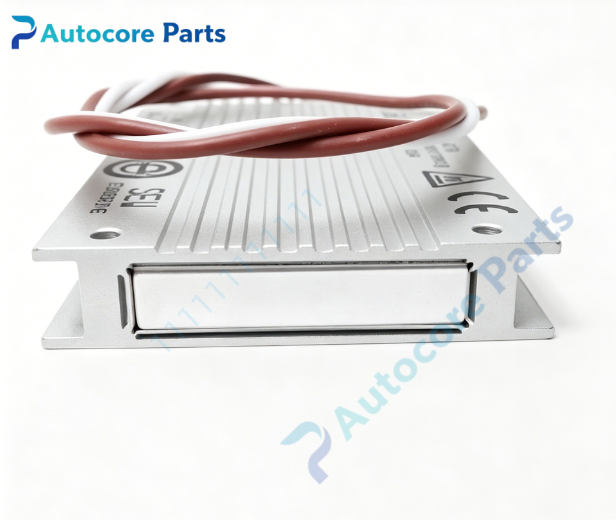

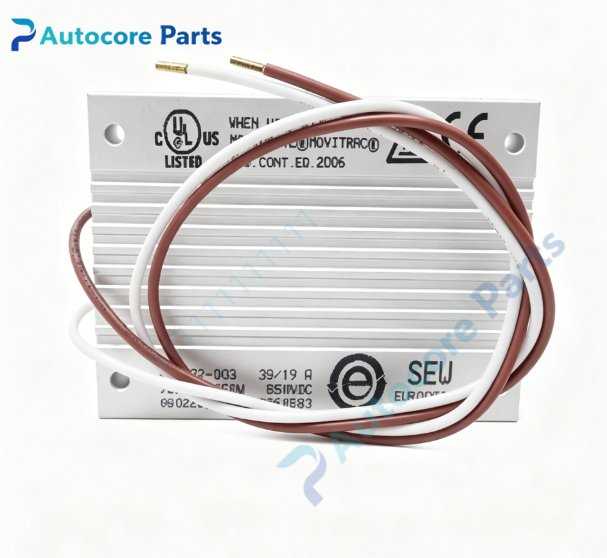

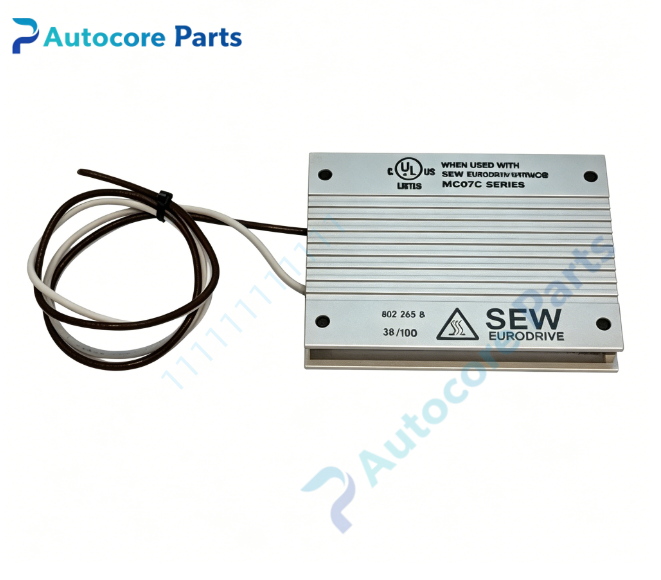

SEW BW072-003 Braking Resistor

Technical SpecificationsModel:BW072-003 Brand:SEW Product type:External Dynamic Braking Resistor Weight:0.28kg Dimension:100mm45mm70mm Resistance:72Ω ±10% Continuous braking power:0.23kW Protection class:IP20 Operating temperature:-20℃ ~ +45℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityBW072-003 is SEW BW series external wire-wound braking resistor. Compatible with MOVIDRIVE MD60A, MDX61B servo drives, MOVITRAC B inverters and BTS brake chopper modules. Suitable for miniature conveyor, small packaging machinery, legacy SEW low-power drive system maintenance and spare replacement.

FunctionThis ultra-compact wire-wound braking resistor consumes regenerative energy generated by motor deceleration. When DC bus voltage rises, the brake chopper activates and releases excess energy through this resistor to suppress overvoltage fault. Terminal block for DC bus wiring, requires external thermal bimetallic relay for overtemperature protection.

InstallationPower off the drive DC bus before installation. Mount BW072-003 vertically inside control cabinet, keep enough air circulation. Separate high voltage braking cables and low voltage control wiring. Connect resistor terminals to brake chopper or drive brake terminals. Install external thermal relay for overheat monitoring. Test braking function after wiring.

InterfaceBrake power connection terminals, shield grounding terminal.

FeatureSEW BW072-003 miniature wire wound braking resistor. 72 ohm impedance, continuous 0.23kW rating. Tiny footprint for micro low-power drive systems. High temperature resistant wire winding. Discontinued spare part, only for SEW small inverter and servo system maintenance replacement. Suitable for miniature logistics conveyor and small packaging automation equipment.

DiagnosticDC bus overvoltage alarm during deceleration: resistor open circuit or loose terminal; Resistor overheat: excessive braking duty cycle; Resistor no heating: brake chopper not triggered; Short circuit fault: resistor insulation breakdown.

Product BriefSEW BW072-003 is BW series 72Ω 0.23kW external braking resistor, used to dissipate regenerative energy for SEW low-power MOVIDRIVE and MOVITRAC inverters and servo drives.
