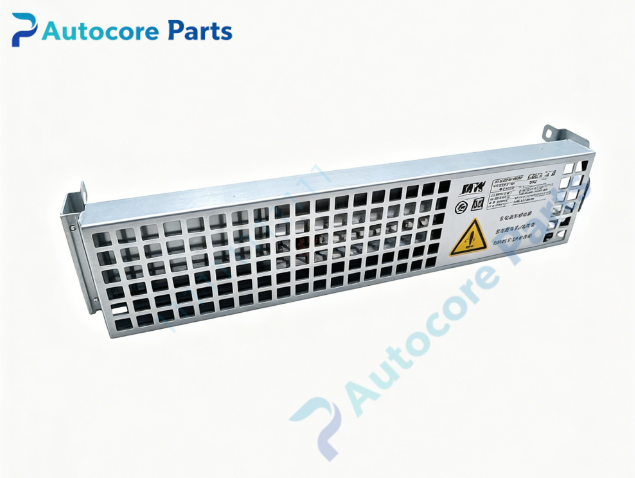

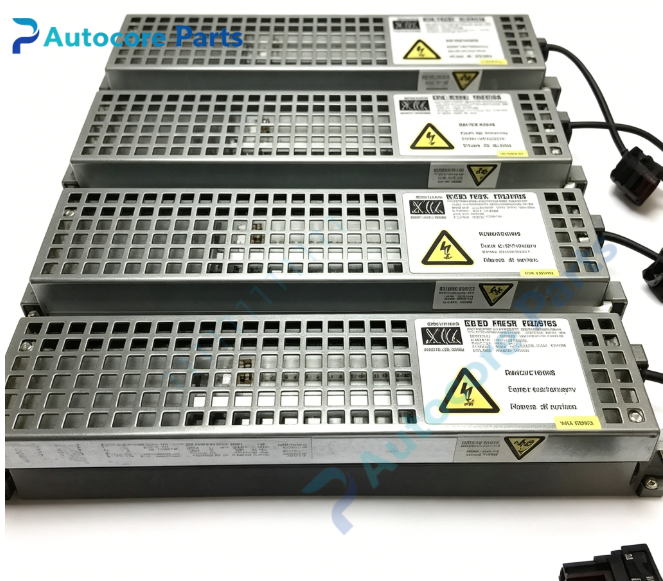

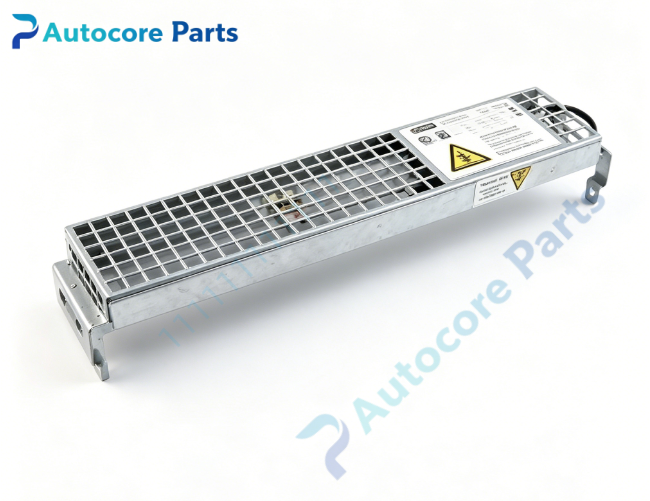

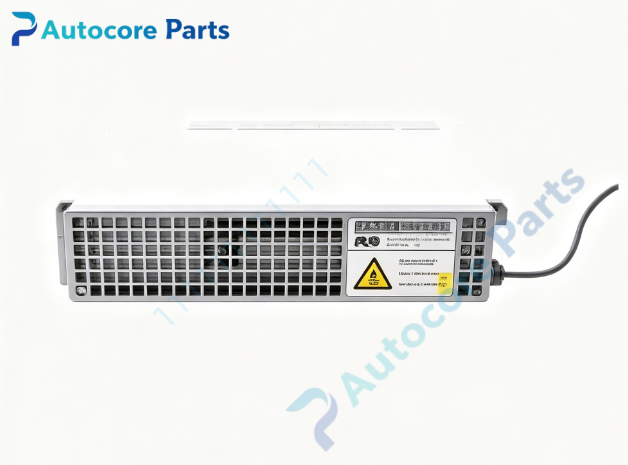

SEW BW090-P52B Braking Resistor

Technical SpecificationsModel:BW090-P52B Brand:SEW Product type:PTC Type External Dynamic Braking Resistor Part No:08245630 Weight:0.51kg Dimension:135mm60mm75mm Resistance:90Ω ±35% Continuous braking power:0.1kW(100W) Protection class:IP20 Operating temperature:-20℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityBW090-P52B is SEW BW-P series PTC braking resistor. Only compatible with size 0 MOVIDRIVE MDX60B and MDX61B servo drives. Widely used for miniature conveyor and small packaging machinery, legacy SEW low power servo drive maintenance and spare replacement.

FunctionThis PTC braking resistor consumes regenerative energy generated by motor deceleration. When DC bus voltage rises, the drive internal brake chopper activates and releases excess energy through this resistor to suppress overvoltage fault. Built-in PTC self-limiting thermal protection, no external bimetallic relay required. Cable type wiring for DC bus connection.

InstallationPower off the drive DC bus before installation. Mount BW090-P52B vertically inside control cabinet, keep enough air circulation. Separate high voltage braking cables and low voltage control wiring. Connect resistor cable terminals to drive brake port X3 (+R/-R). After wiring, test braking response before machine operation.

InterfaceBrake power cable terminals, shield grounding terminal.

FeatureSEW BW090-P52B compact PTC self-protected braking resistor. 90 ohm impedance, continuous 100W rating. PTC thermal self-limiting design, automatically limit current under overheat condition. Cable connection design, simple installation. Discontinued legacy spare part, only for size0 MDX60B/MDX61B servo system maintenance replacement. Suitable for miniature logistics conveyor and small packaging automation equipment.

DiagnosticDC bus overvoltage alarm during deceleration: resistor cable open circuit or loose connection; Resistor overheat: excessive braking duty cycle; No braking action: drive brake chopper not triggered; PTC locked high resistance: resistor internal damage.

Product BriefSEW BW090-P52B is BW-P series 90Ω 0.1kW PTC self-protected braking resistor, specially designed for size0 MOVIDRIVE MDX60B / MDX61B servo drives to dissipate regenerative energy.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
