SEW DBG11A-01 Operator Keypad (ABG11A-01)

Technical SpecificationsModel:ABG11A-01(Standard part number:DBG11A-01) Brand:SEW Product type:Digital Operating Keypad / Text Display Operator Panel Weight:0.18kg Dimension:85mm65mm22mm Display:7-segment text LED display Connection:Direct plug-in on drive front port Protection class:IP20 Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityDBG11A-01 (ABG11A-01) is SEW original operator keypad. Compatible with MOVIDRIVE MD60A, MDX61B and MOVITRAC series inverters and servo drives. Widely used for on-site commissioning,parameter backup and fault check on conveyor,packaging,material handling equipment.

FunctionThis operator panel is used for local drive operation. It can read real-time running status, modify drive parameters, save and copy parameter sets, view fault codes and fault history. It supports local start/stop and speed adjustment for motors. Simple plug and play without extra wiring.

InstallationPower off the drive before installation. Directly plug the keypad into the front interface of SEW compatible inverter or servo drive. Lock the buckle to fix the panel. No extra power supply required, powered by the drive.

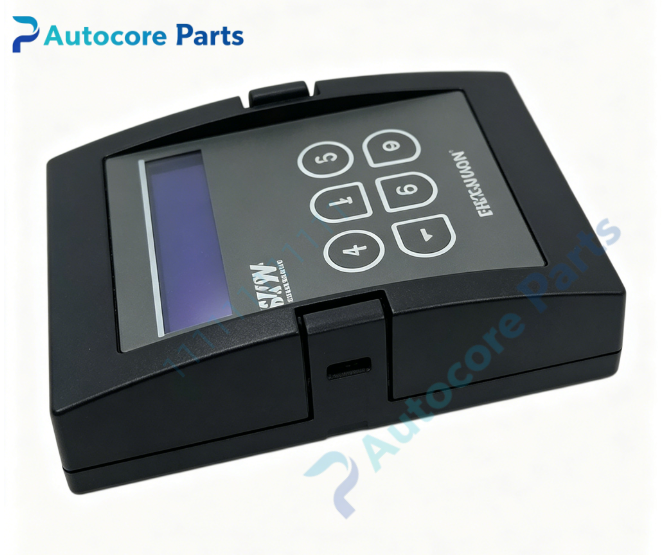

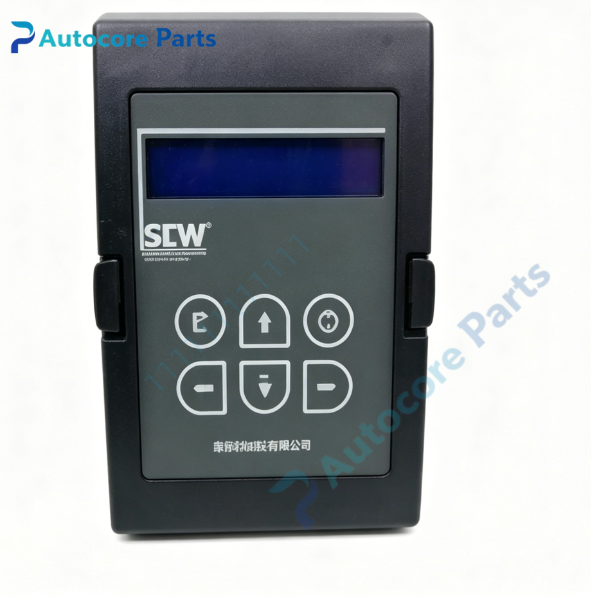

InterfaceFront plug-in connector, 6-key membrane keypad, LED text display.

FeatureSEW DBG11A-01 IP20 compact operator keypad. Light weight, easy installation. Support parameter upload/download. Quick fault code readout. Membrane keys with long service life. Discontinued spare part, only for legacy SEW drive maintenance and replacement. Suitable for packaging,logistics conveyor and material handling machinery.

DiagnosticNo display: check plug connection and drive power supply; Keys no response: keypad aging or poor contact; Garbled display: damaged keypad or communication failure between keypad and drive.

Product BriefSEW DBG11A-01 (ABG11A-01) is text type operating keypad for SEW MOVIDRIVE and MOVITRAC drives, used for on-site commissioning, parameter setting and fault diagnosis of industrial inverters and servo drives.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
