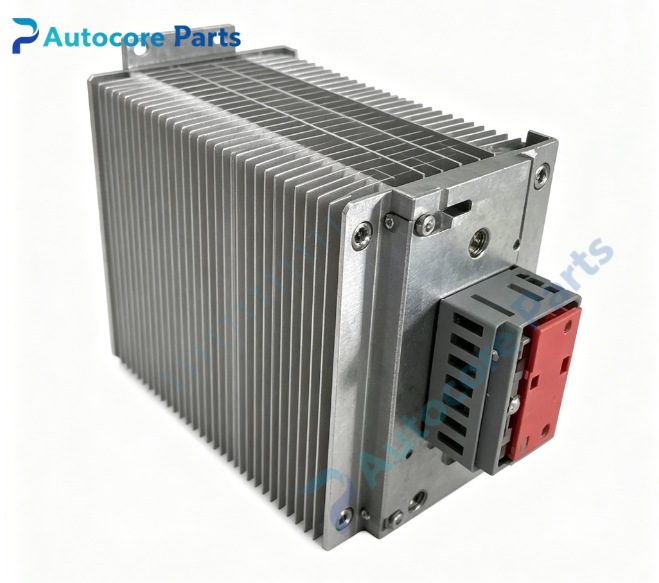

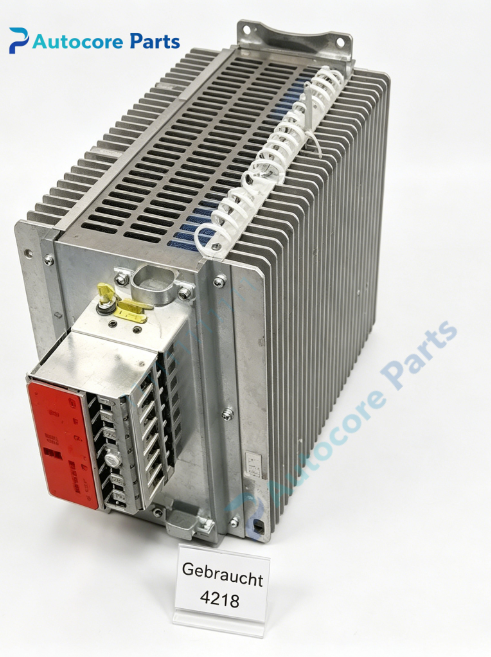

SEW HF047-403 Sine Output Filter

Technical SpecificationsModel:HF047-403 Brand:SEW Product Type:Three Phase Sine Wave Output Filter Part No:8257868 Rated voltage:3×AC230-500V,50/60Hz Protection class:IP20 Mounting:Control cabinet base plate mounting Operating temperature:0℃ ~ +45℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE,UL/cUL approved

System compatibilityHF047-403 belongs to SEW HF series sine output filter,specially matched for MOVIDRIVE series inverters. It can be applied for single drive or multi parallel motor group drive systems. Widely used for conveyor,packaging and material handling automation equipment,legacy SEW drive system maintenance and spare replacement.

FunctionThis sine output filter converts the PWM square-wave output of inverter into smooth sine waveform. It suppresses voltage spikes and high-frequency discharge current on long motor cables over 100 meters,protects motor winding insulation from peak voltage damage. It reduces motor running noise and extra heat,also suitable for non-SEW standard motors without inverter-grade insulation. It only works under V/f and VFC control modes and is not recommended for hoist applications.

InstallationDisconnect main power before installation. Install HF047-403 inside control cabinet,placed between inverter output terminals and motor cable. Keep short wiring between inverter and filter. Reserve enough ventilation space above and below filter. Use shielded motor cable and reliable PE grounding. Separate power wiring from signal cables to avoid electromagnetic interference. Check all terminals tightness before power on.

Interface3-phase input terminals(U1,V1,W1),3-phase output terminals(U2,V2,W2),protective earth terminal.

FeatureSEW HF047-403 cabinet type sine output filter for MOVIDRIVE series drive. IP20 protection for internal cabinet installation. Effectively filter PWM carrier wave and eliminate motor terminal overvoltage. Discontinued legacy spare part,only for HF series sine filter maintenance replacement. Suitable for long motor cable layout and multi-motor parallel group drive occasions.

DiagnosticMotor abnormal noise and heating: filter damaged or model mismatch; Insulation breakdown of motor: filter failure or poor grounding; Filter overheat: overcurrent or insufficient cabinet ventilation; Large discharge current: missing sine filter for long motor cable.

Product BriefSEW HF047-403 is HF series three-phase sine wave output filter,matched with MOVIDRIVE inverters,used to smooth PWM output waveform,suppress overvoltage spikes and protect motor windings for long cable applications.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
