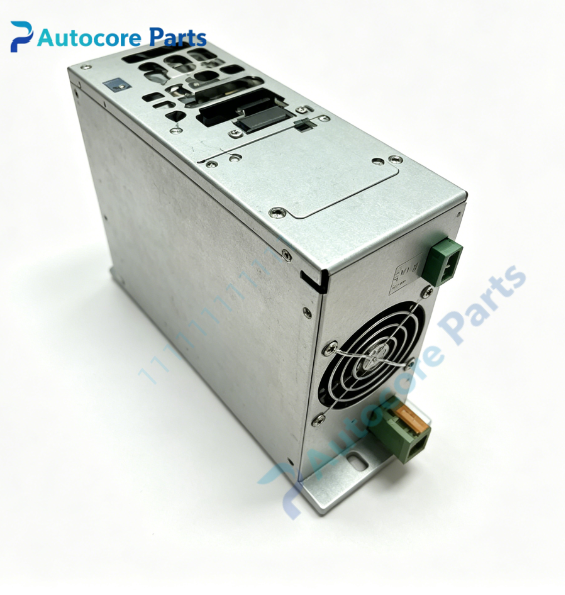

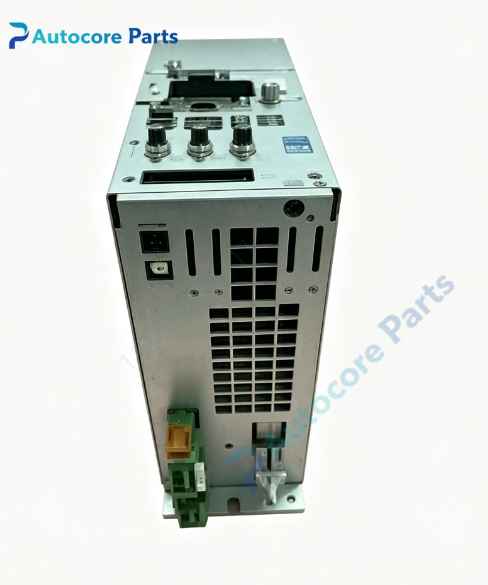

SIEB & MEYER 03631490IC00A0 Spindle Servo Amplifier

Module Feature

SIEB & MEYER part number 03631490IC00A0 B0 belongs to SD3 series standalone high-frequency spindle servo amplifier. It is designed to drive high-speed synchronous spindle motors with multi-type encoder feedback. It supports ultra-high output frequency for ultra-high spindle rotational speed, features fast dynamic response and stable speed & spindle orientation regulation. Built-in multi-channel voltage, current and temperature monitoring protection circuit. Compact standalone metal housing with excellent EMC and vibration resistance performance. Widely used in PCB routing, semiconductor drilling and CNC milling machines.

Working principle

Three-phase AC input power passes EMI filter and rectifier bridge to form stable DC bus. Internal IGBT power stack converts DC bus into adjustable high-frequency three-phase AC power to drive spindle motor. The drive continuously collects real-time encoder speed and position feedback signal to execute closed-loop speed and spindle orientation control. When overvoltage, overcurrent or overtemperature fault is detected, the drive immediately cuts off power output and sends fault code to upper CNC control system for safety interlock.

Onboard components

IGBT power stack, DC-link capacitor bank, current & voltage sampling circuit, encoder signal conditioning interface, main control processor, temperature sensor, power terminal block, external signal connectors, LED status indicator array.

LED indicators

Front panel LED indicators for module power, drive ready, spindle enable, running status and fault code display.

Hardware self-diagnosis

Visual inspection of module housing, terminals and connectors; DC bus voltage measurement; spindle motor cable insulation and continuity test; read LED fault codes; inspect cooling fan and heat sink for dust accumulation.

Programming software

SIEB & MEYER Drivemaster3 commissioning software for spindle parameter configuration, auto-tuning and firmware revision verification.

Electrical & Process Parameters

Model: 03631490IC00A0 B0 (SD3 series) Device type: High frequency spindle servo amplifier Input: 3-phase AC mains Output: High frequency 3-phase AC for synchronous spindle motor Control mode: Closed loop speed / orientation control Cooling: Forced air cooling with built-in fan Protection: Overvoltage, undervoltage, overcurrent, short circuit, overtemperature protection Mounting: Panel mounting

Mechanical & Structure

Mounting: Panel mounting Protection class: IP20 (inside control cabinet)

Environmental

Operating temperature: 0℃ ~ +50℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: SIEB & MEYER SD3 high-speed spindle servo amplifier

System compatibility

Compatible with SIEB & MEYER SD3 supporting spindle motors, forms complete high-performance spindle drive system for CNC and semiconductor equipment.

Function

03631490IC00A0 B0 spindle amplifier manufactured by SIEB & MEYER. It outputs high-frequency three-phase power to spindle motor and realizes high-precision speed and angular positioning. Motor overload, cable short-circuit, fan failure or capacitor aging will trigger protection and disable power output. It is high-speed spindle power amplifier unit for CNC and semiconductor processing equipment.

Installation

Follow lockout/tagout safety procedure before installation. Cut off all drive power completely. Fix the amplifier on cabinet panel with mounting holes. Wire spindle power cable and encoder feedback cable correctly. Configure spindle parameters and run auto-tuning via Drivemaster3 software, test spindle rotation before formal machining.

Interface

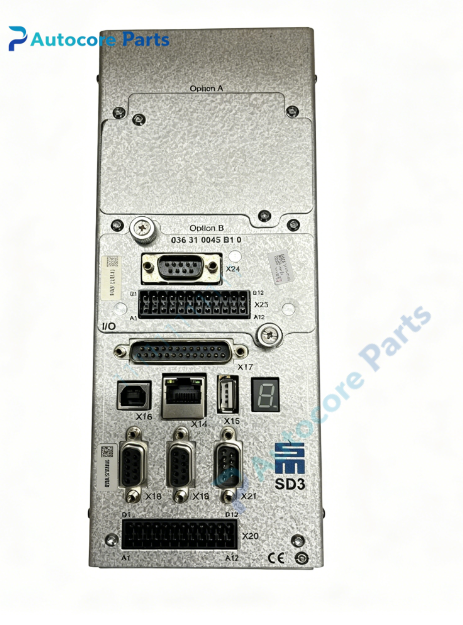

3-phase AC input terminal, spindle motor 3-phase power output terminal, encoder feedback connector, digital & analog I/O port, fault signal output terminal of 03631490IC00A0 B0.

Diagnostic

No power LED: Missing AC input, blown input fuse or input wiring fault. Drive not ready: Pre-charge failure, defective DC capacitor or communication error. Overcurrent alarm: Spindle motor winding short, damaged power cable or mechanical jam. Overheat alarm: Cooling fan failure, clogged heat sink or high ambient temperature. Speed deviation fault: Damaged encoder, loose feedback cable or incorrect parameter setting.

Product Brief

03631490IC00A0 B0 SIEB & MEYER SD3 panel mount high speed spindle servo amplifier,high frequency output,for encoder equipped synchronous spindle motors,used in CNC and semiconductor routing & drilling equipment.
