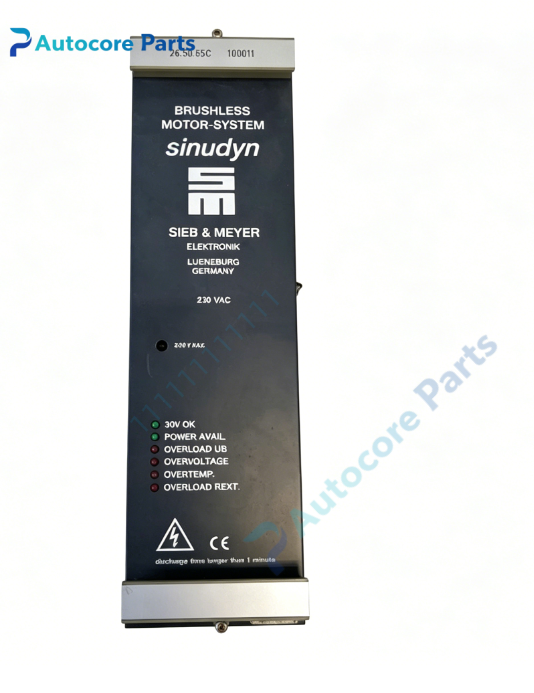

SIEB & MEYER Powermodul 26.50.65

Module Feature

SIEB & MEYER Powermodul 26.50.65 is a high-power digital servo power module. It adopts IGBT power topology, works with matching axis control boards to realize three-phase servo motor driving. Supports position, speed and torque control modes. Built-in comprehensive protection functions including overvoltage, undervoltage, overcurrent, short circuit, overheat and motor overload protection. Rack-mounted compact design, excellent EMC anti-interference performance. Widely used in CNC machine tools, semiconductor automation and high-precision production line multi-axis motion control systems.

Working principle

The module converts the input AC mains power into DC bus voltage. According to the control signals sent by the upper controller board, the IGBT power unit outputs variable-frequency three-phase AC power to drive the servo motor. It collects current and temperature signals in real time and performs closed-loop adjustment. Once any fault condition is detected, the module will immediately block power output and send fault alarm signal to protect the whole drive system and mechanical equipment.

Onboard components

IGBT power stack, DC bus capacitor bank, current sampling sensors, gate drive circuit, temperature detection sensor, fault logic circuit, power terminal block, status interface connector.

LED indicators

Built-in LED indicators for power supply status, module ready, fault and error code indication.

Hardware self-diagnosis

Visual inspection of module housing, terminals and connectors; DC bus voltage measurement; continuity test of power cables; check LED fault codes; inspect heat sink for dust accumulation and fan status.

Programming software

SIEB & MEYER commissioning software for parameter setup, gain tuning, status monitoring and fault log reading.

Electrical & Process Parameters

Model: Powermodul 26.50.65 Input voltage: 3-phase AC400V,50/60Hz Control mode: Position / Speed / Torque Command interface: Digital bus / analog command Cooling: Forced air cooling Protection: Overvoltage, undervoltage, overcurrent, short circuit, overload, overtemperature Mounting: Rack mounting

Mechanical & Structure

Mounting: Rack mounting Protection class: IP20

Environmental

Operating temperature: 0℃ ~ +50℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: SIEB & MEYER servo power module

System compatibility

Compatible with SIEB & MEYER matching axis controller boards, to build multi-axis high precision servo drive system.

Function

Powermodul 26.50.65 power module manufactured by SIEB & MEYER. It receives control commands from the axis controller and outputs three-phase variable frequency power to drive servo motor for high precision motion positioning. Faults such as short circuit, overcurrent and overheat will trigger alarm and power cutoff. It is core power unit for CNC and semiconductor automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Cut off all power supply completely. Insert module into control rack, ensure secure backplane connection. Wire 3-phase AC input, motor output cable and control signal cable correctly. Set drive parameters via SIEB & MEYER commissioning software, perform trial run and positioning verification before formal operation.

Interface

3-phase AC power input terminal, motor power output terminal, DC bus terminal, backplane control signal connector, fault signal output terminal of Powermodul 26.50.65.

Diagnostic

No power LED: No 3-phase AC input or internal fuse failure. Module not ready: Emergency stop active, backplane communication error or hardware defect. Overcurrent alarm: Motor short circuit, damaged cable or IGBT module breakdown. Overheat alarm: Fan failure, blocked heat sink or continuous heavy overload. Bus overvoltage: Regenerative energy surge or brake resistor fault.

Product Brief

Powermodul 26.50.65 SIEB & MEYER servo power module,3-phase AC400V input,rack mount,supports position/speed/torque control,with full protection functions,for CNC and semiconductor multi-axis high precision motion control.
