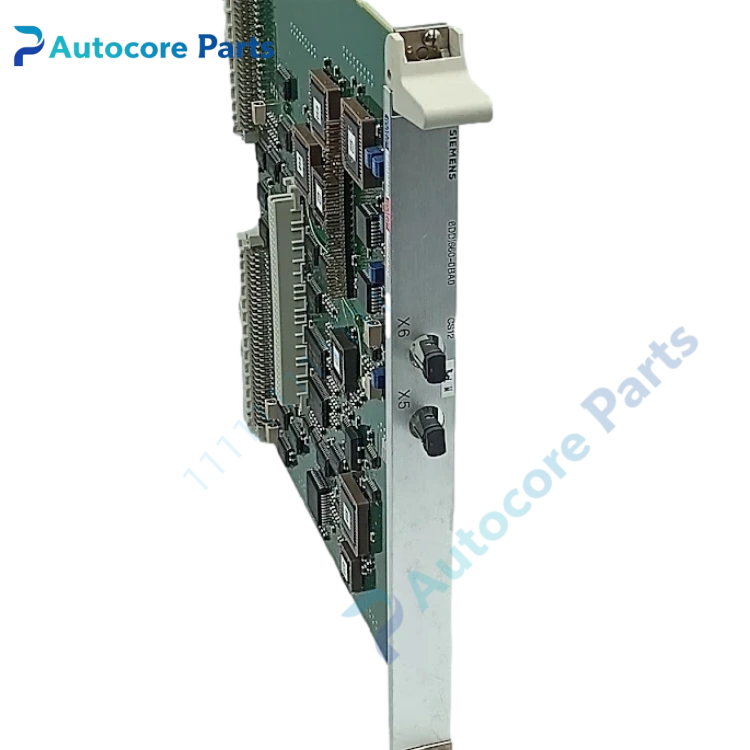

Siemens 6DD1660-0BA0 Fiber Optic Coupling Module

Feature & Principle

It is a fiber optic subrack coupling module for Siemens SIMADYN D control system. It realizes point-to-point synchronous communication over optical fiber via L-bus and C-bus, completes real-time data exchange, clock synchronization and alarm interrupt transmission between different racks. Optical transmission effectively suppresses electromagnetic interference in heavy industrial sites. The module carries 128KB onboard RAM for data buffering. This product is discontinued and applied as maintenance replacement spare for legacy drive and power control racks.

Specifications

Model: 6DD1660-0BA0 Brand: Siemens Type: CS12-CS22 fiber optic coupling Applicable system: SIMADYN D Bus: L-bus, C-bus Max fiber length: 200 m Onboard RAM: 128 KB Transmission characteristic: Synchronous real-time data & interrupt transfer Installation: SIMADYN D rack slot mount Application: Power plant, metallurgy, rolling mill, large drive control cabinet Certification: CE

Components & Diagnostics

Fiber transceiver assembly, logic processing IC, buffer memory, backplane bus connector, status LED, terminal circuit. Common faults: fiber link loss, synchronization failure, bus communication breakdown, optical port aging.

Product Brief

6DD1660-0BA0 fiber optic coupling module, Siemens SIMADYN D synchronous optical communication spare widely used for legacy drive control cabinet overhaul and replacement.
