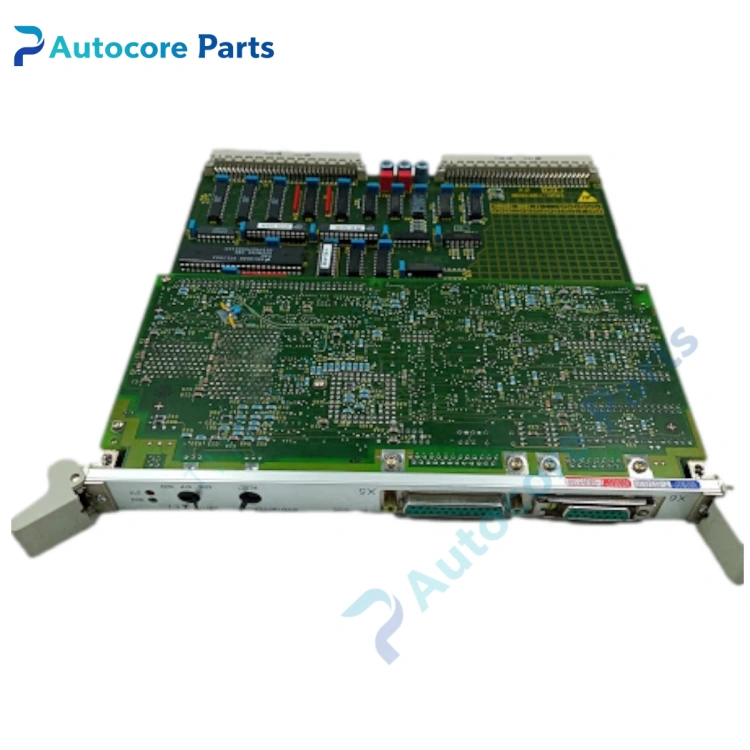

Siemens 6DD1661-0AB1 CSH11 Communication Module

Feature & Principle

It is Siemens CSH11 communication module used for SIMADYN D control system. It realizes data exchange based on SINEC H1 industrial bus, completes interconnection between SIMADYN D and S7 series PLC or upper monitoring equipment. It adopts plug-in rack installation, with dedicated bus signal processing circuit, stable data transmission for high-speed closed-loop control. This model is obsolete, mainly used for maintenance of old rolling mill, power and drive control systems.

Specifications

Model: 6DD1661-0AB1 Brand: Siemens Module type: CSH11 Applicable system: SIMADYN D Bus protocol: SINEC H1 Installation: Rack plug-in Software configuration: D7-SYS Application: Metallurgical rolling mill, generator excitation, legacy drive control cabinet Certification: CE

Components & Diagnostics

Bus signal processing chip, backplane gold finger, SINEC H1 interface circuit, status LED, power supply circuit. Common faults: bus communication interruption, module cannot be identified, interface damage, signal drift.

Product Brief

6DD1661-0AB1 communication module, Siemens SIMADYN D SINEC H1 bus spare widely used for metallurgy and power control cabinet overhaul and replacement.
