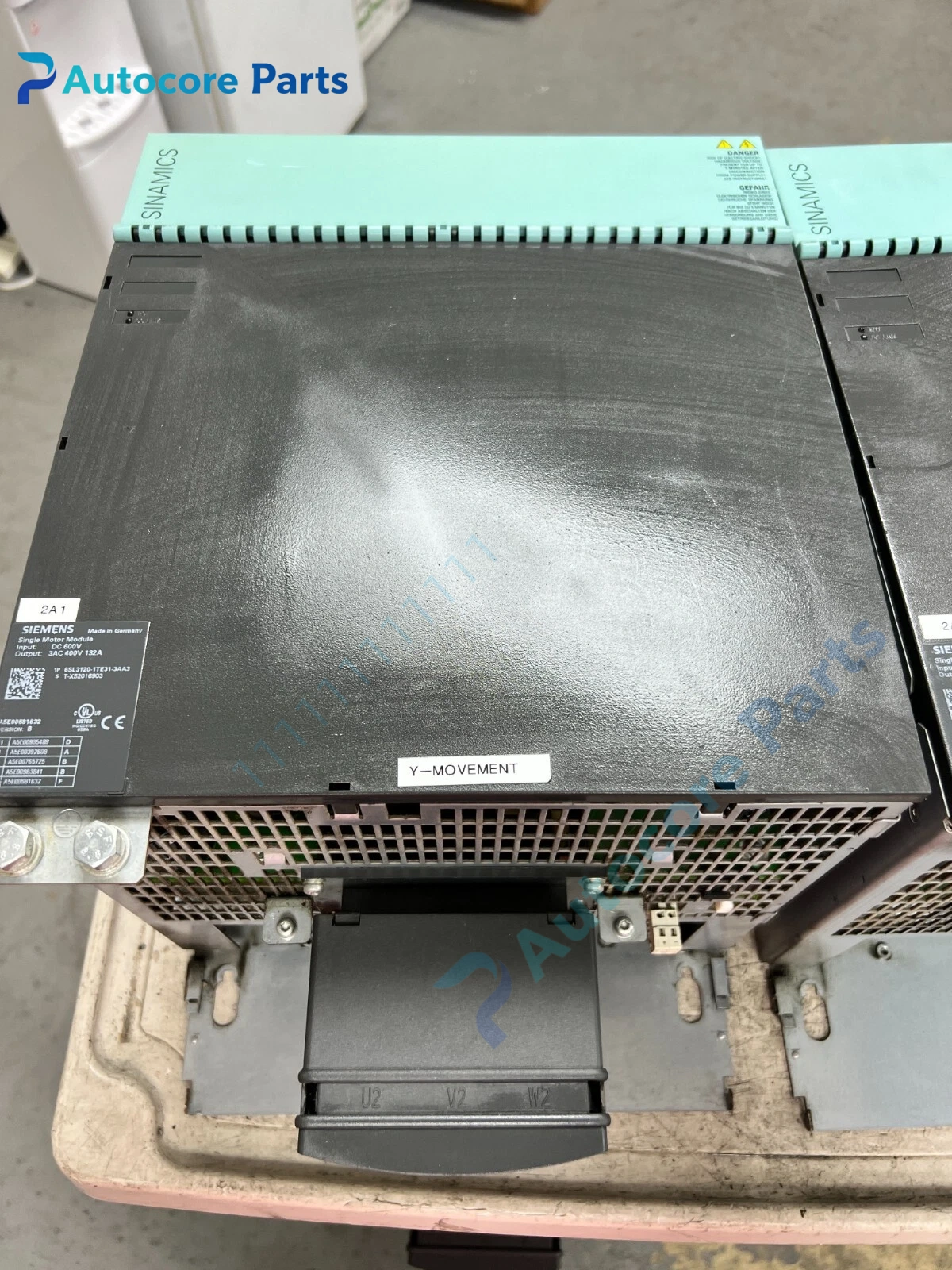

Siemens 6SL3120‑1TE31‑3AA3 Motor Drive Module Unit

Module Feature

6SL3120‑1TE31‑3AA3 is Siemens SINAMICS S120 booksize single motor module. It adopts internal air cooling, rated output current 132A. It supports extended Safety Integrated safety functions, communicates with controller and motor encoder through DRIVE‑CLiQ. Widely used for machine tool spindle and high‑power servo axis control.

Working principle

It receives DC bus power from S120 line module. Internal IGBT unit converts DC into variable‑frequency three‑phase AC to drive synchronous or asynchronous motor. DRIVE‑CLiQ transmits encoder position signal to realize closed‑loop speed and position control.

Onboard components

IGBT power unit, drive control circuit, DRIVE‑CLiQ communication port, DC bus terminal, motor power terminal, status LED, cooling fan and metal housing.

LED indicators

LEDs display power status, running signal and fault alarm information.

Hardware self‑diagnosis

Detect overcurrent, overvoltage, overtemperature, DC bus fault, DRIVE‑CLiQ communication failure, read fault codes via STARTER software.

Programming software

Parameter configuration and commissioning by Siemens STARTER software.

Electrical & Process Parameters

Model:6SL3120‑1TE31‑3AA3 Brand:Siemens Device type:Single Motor Module DC input:600V DC AC output:3AC 400V,132A Cooling:Internal air cooling Function:Servo / spindle motor speed and position control

Mechanical & Structure

Mounting:Cabinet booksize rack mounting Protection class:IP20 Housing:Metal modular housing

Environmental

Operating temperature:0℃ ~ +55℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE, UL, IEC drive standard compliant Status: Siemens original S120 series motor module

Installation

Install module on S120 rack, connect DC bus and motor power cable. Wire DRIVE‑CLiQ cable between control unit, module and motor encoder. Complete commissioning in STARTER software.

Interface

DC bus power interface, motor output terminal, DRIVE‑CLiQ communication port, control signal terminal.

Diagnostic

Overcurrent fault: motor overload, short circuit or grounding. Communication loss: DRIVE‑CLiQ cable damage or loose plug. Overtemperature: fan fault or poor cabinet ventilation.

Product Brief

Siemens 6SL3120‑1TE31‑3AA3 S120 booksize single motor module, provides high‑power closed‑loop drive for machine tool spindle and servo axes.
